Summary of Contents for Unika BUDGET DIY JIG

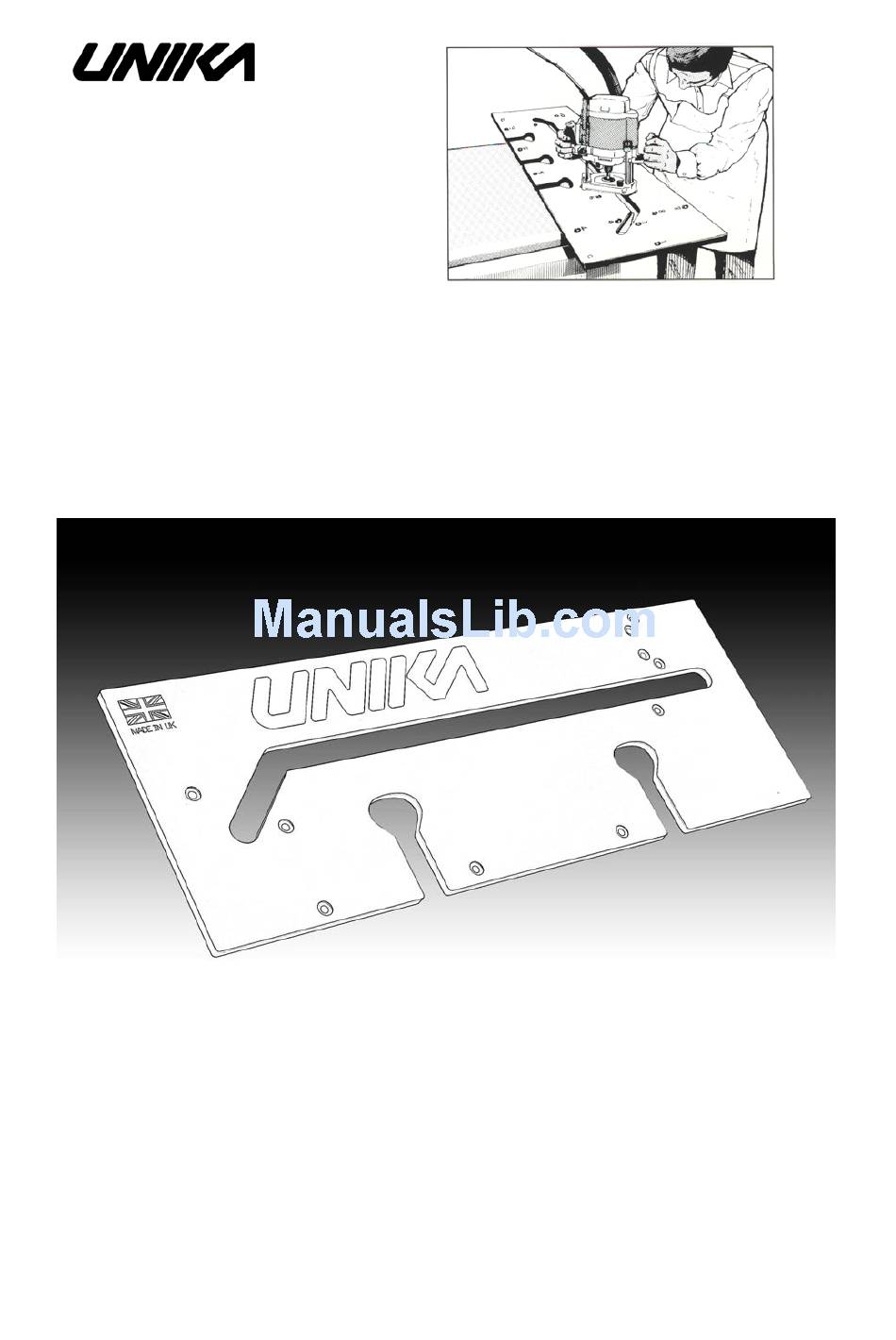

Page 1
Unika Color Products Ltd. Unika House New York Way New York Industrial Park Newcastle Upon Tyne NE27 0QF Helpline Tel: 0191 2597876 BUDGET DIY JIG...
Page 2
The jig can be used to fit 90° corners for worktops of widths 600mm and 616 mm. A 30 mm guide bush and a ½” (12.7mm) tungsten tipped cutter are required for the router. No other combination will work satisfactorily. It is important that you work the router from left to right.
Page 3
The construction above is the easiest to fit and should be used if possible. Another lay out is shown below but this requires much more careful measuring and recovery from error in measurement and cutting “WORKTOP 3” to size is limited. WORKTOP 3 POSTFORMED EDGE INSET 35mm...
Page 4
RIGHT HAND MALE CUT LEFT HAND MALE CUT LINE C WORKTOP FACE WORKTOP BACK Postformed Edge Postformed Edge START CUT HERE START CUT HERE FEMALE BOLT SLOTS SET UP BOLT SLOTS IN RIGHT HAND FEMALE BOLT SLOTS IN LEFT HAND FEMALE WORKTOP BACK WORKTOP BACK Postformed Edge...
