RoboPro CE5000-40-CRP : CMi User Manual
2010
Last Update : March 25, 2011
EPFL - STI - CMI
RoboPro CE5000-40-CRP: Hardware
The RoboPro CE5000-40-CRP is a cutting plotter. It is a system which achieves high-
speed (max 60cm/s) and fair precision (down to ~100µm) cutting (max media
thickness 250µm, range of guaranteed precision ~350mm X 2m). In addition to
cutting adhesive films or other media, it can also be used as a pen plotter.

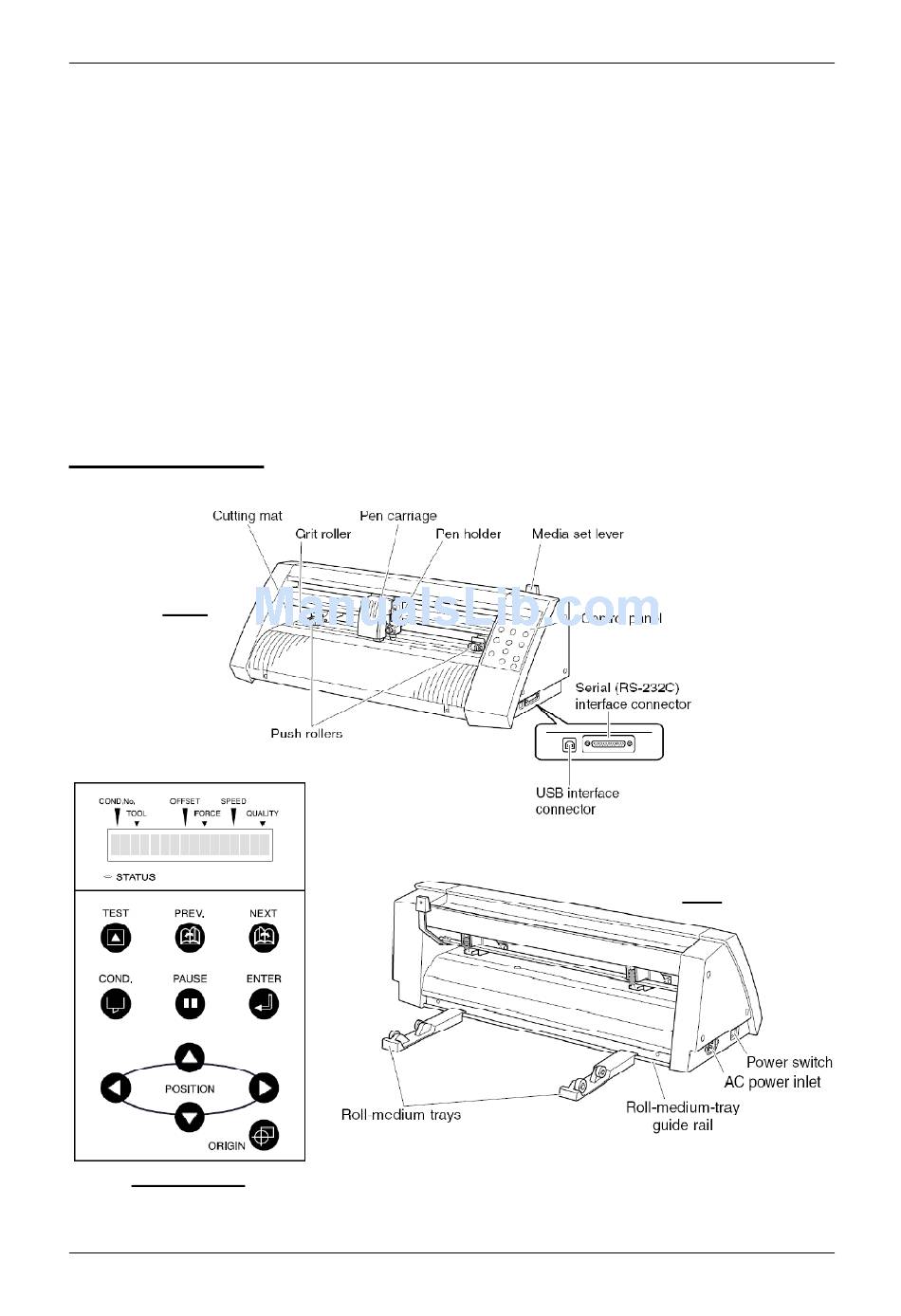

System Overview
Front
Back
Control Panel
CMi / J. Pernollet
1/23
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for CMi RoboPro CE5000-40-CRP:
- Page 1 RoboPro CE5000-40-CRP : CMi User Manual 2010 Last Update : March 25, 2011 EPFL - STI - CMI RoboPro CE5000-40-CRP: Hardware The RoboPro CE5000-40-CRP is a cutting plotter. It is a system which achieves high- speed (max 60cm/s) and fair precision (down to ~100µm) cutting (max media thickness 250µm, range of guaranteed precision ~350mm X 2m).
- Page 2 RoboPro CE5000-40-CRP : CMi User Manual 2010 Last Update : March 25, 2011 Preparing the blade TO AVOID INJURY, ALWAYS HANDLE THE CUTTER BLADE WITH CAUTION Adjust the blade length by turning the blade-length adjustment knob. Turn the knob clockwise to extend the blade or counter-clockwise to retract the blade. When the knob is turned by one scale unit, the blade moves approximately 0.1mm (knob full...
- Page 3 RoboPro CE5000-40-CRP : CMi User Manual 2010 Last Update : March 25, 2011 • Raise the media set lever and turn on the RoboPro power. A message appears on the control panel screen of the RoboPro. - If the “REALIGN ROLLERS” message is displayed, one (or both) of the push rollers is not correctly positioned.
- Page 4 RoboPro CE5000-40-CRP : CMi User Manual 2010 Last Update : March 25, 2011 Note: If you wish to use the 09U blade as a standard tool, the default setting condition is saved in the condition number 2. Blade part Nos., Displayed blade types and displayed CUTTER OFFSET values...
- Page 5 RoboPro CE5000-40-CRP : CMi User Manual 2010 Last Update : March 25, 2011 • Check how far the blade cuts into the film and how corners are being cut; if the results are not satisfactory, reset the parameters conditions and repeat the cutting test until optimal settings are achieved.
- Page 6 RoboPro CE5000-40-CRP : CMi User Manual 2010 Last Update : March 25, 2011 RoboPro CE5000-40-CRP: Software Initial Steps Cutting Text Outlines Cutting a Text String Placed Inside the Ellipse How to Cut a Template from the ROBO Master Template Collection...
- Page 7 7/23...
- Page 8 8/23...
- Page 9 9/23...
- Page 10 10/23...
- Page 11 11/23...
- Page 12 12/23...
- Page 13 13/23...
- Page 14 14/23...
- Page 15 15/23...
- Page 16 16/23...
- Page 17 17/23...
- Page 18 18/23...
- Page 19 19/23...
- Page 20 20/23...
- Page 21 21/23...
- Page 22 22/23...
- Page 23 23/23...
