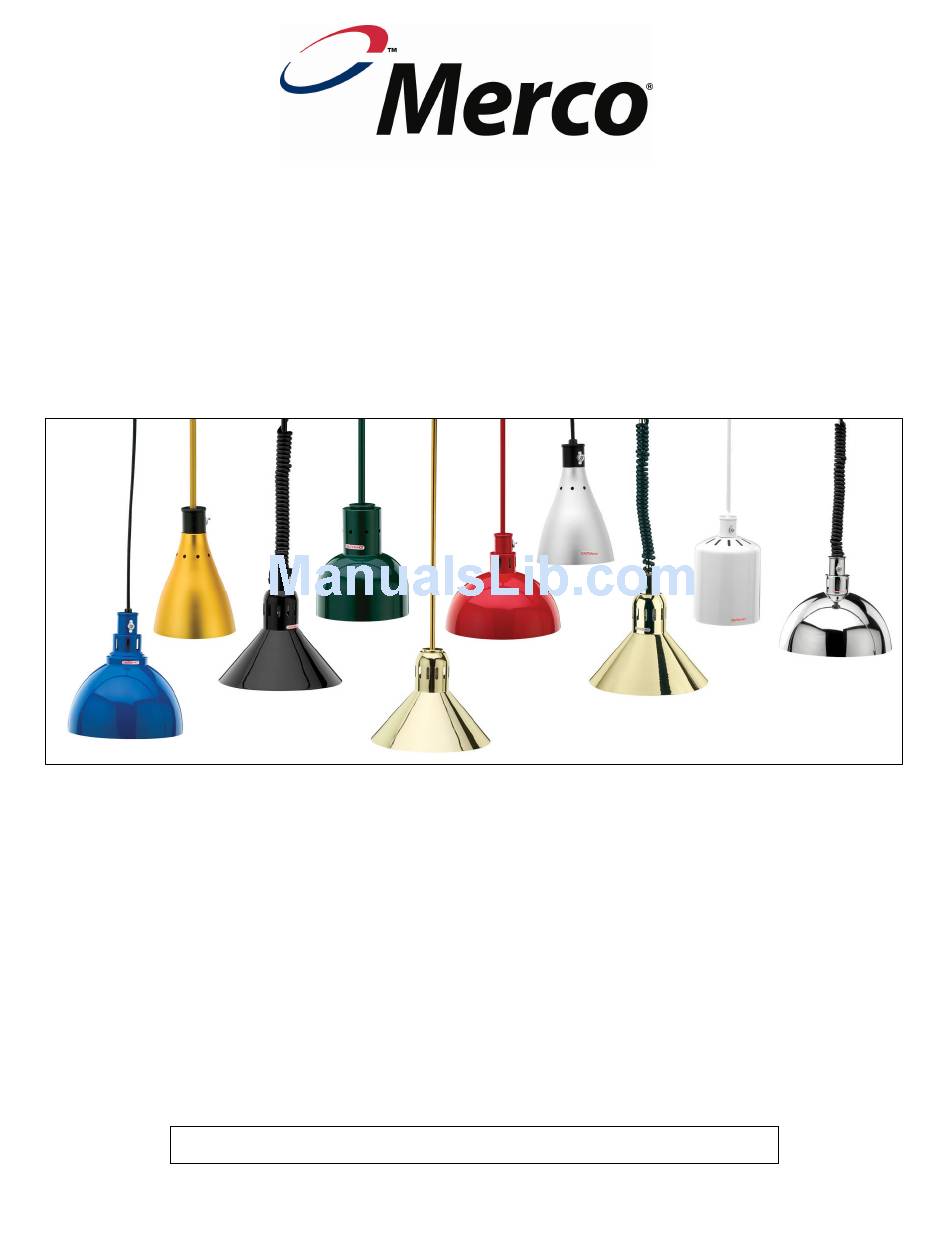

PARTS & SERVICE MANUAL
for
CONTEMPO SERIES
WARMER LAMPS
Merco Contempo Warmer Lamps offer graceful, dramatic styling to match any décor. They are made
of exacting tolerance from heavy duty, solid, mandrelspun aluminum for durability, but like any piece
of equipment with moving parts, physical wear takes its toll. When this happens, the information in
this manual will prove helpful. Although the instructions are easy to follow, the work should be
handled by a qualified Merco Certified Service Technician.
THIS MANUAL SHOULD BE RETAINED FOR FUTURE USE
Contempo
1
ContempoServMan
REV: B – 8/10/07
Lamps Service Manual
Advertisement
Summary of Contents for Merco CONTEMPO SERIES
- Page 1 CONTEMPO SERIES WARMER LAMPS Merco Contempo Warmer Lamps offer graceful, dramatic styling to match any décor. They are made of exacting tolerance from heavy duty, solid, mandrelspun aluminum for durability, but like any piece of equipment with moving parts, physical wear takes its toll. When this happens, the information in this manual will prove helpful.
- Page 2 CONTEMPO – STYLE A COMMON TO ALL STYLE A ITEM PART # DESCRIPTION 000688 Sticker, M. Contempo, UL/NSF 060434 Bar, Combination, Bracket 000178 Bushing, Snap, HEYCO 000717 Switch, Toggle 000430 Nut, 6-32, HEX, Z 000828 Washer, Lock 000671 Socket, Porcelain 000449 Nut, 1/8 IPS x 9/16, Panel, Z 000597...
- Page 3 CONTEMPO – STYLE C COMMON TO ALL STYLE C ITEM PART # DESCRIPTION 000688 Sticker, M. Contempo, UL/NSF 060434 Bar, Combination, Bracket 000178 Bushing, Snap, Heyco 000717 Switch, Toggle 000430 Nut, 6-32, Hex, Z 000828 Washer, Lock 000175 Bushing, Bake Lite, ¼” IPS/FEM 000592 Screw, 8-32 x ¼”, PHP 000174...
- Page 4 CONTEMPO – STYLE F COMMON TO ALL STYLE F ITEM PART # DESCRIPTION 000688 Sticker, M. Contempo, UL/NSF 060434 Bar, Combination, Bracket 000178 Bushing, Snap, Heyco 000717 Switch, Toggle 000430 Nut, 6-32, Hex, Z 000828 Washer, Lock 000449 Nut, 1/8 IPS x 9/16, Panel, Z 000597 Screw, 8-32 x 1 ½”, PHP 000469...
- Page 5 CONTEMPO – STYLE R COMMON TO ALL STYLE R ITEM PART # DESCRIPTION 000688 Sticker, M. Contempo, UL/NSF 060434 Bar, Combination, Bracket 000178 Bushing, Snap, Heyco 000717 Switch, Toggle 000430 Nut, 6-32, Hex, Z 000828 Washer, Lock 000449 Nut, 1/8 IPS x 9/16, Panel, Z 000429 Nipple, 1/8 x ½...
- Page 6 CONTEMPO – STYLE S COMMON TO ALL STYLE S ITEM PART # DESCRIPTION 000688 Sticker, M. Contempo, UL/NSF 060434 Bar, Combination, Bracket 000178 Bushing, Snap, Heyco 000717 Switch, Toggle 000430 Nut, 6-32, Hex, Z 000828 Washer, Lock 000449 Nut, 1/8 IPS x 9/16, Panel, Z 000429 Nipple, 1/8 x ½...
-
Page 7: Contempo Lamps Service Manual
CONTEMPO INSTALLATION INSTRUCTIONS Secure the top portion of the lamp to the ceiling with the two 8-32 threaded rods provided – as shown in diagram. NOTE: A 4” round electrical box attached to a beam is preferred to hold the weight and the adjusting of the lamp up and down. - Page 8 MERCO SAVORY TRACK LIGHTING INSTRUCTIONS These instructions are for the proper installation of all Halo Track Lighting fixtures. There are several different configurations of the Merco Savory track lighting fixtures. All mount to the Halo track in the same manner as described below.
-
Page 9: Contempo Lamps Service Manual
MINIATURE “TRAC-HEAT” INSTRUCTION SHEET The maximum electrical capacity for POWER-TRAC is 20 Amps per circuit for CAUTION: permanent installation to an outlet box or 10 Amps if the L950 Cord and Plug Connector is used to connect the Trac to a wall outlet. CAUTION: Turn off switch at main power source (fuse box) before installing any Trac-heat or fittings. -
Page 10: Threaded Rod Assy, 5 ¾
HEAVY DUTY RETRACTABLE MECHANISM ADJUSTMENT 1. Remove the two screws holding top cover on the retractable cylinder housing. 2. Loosen the two lower hex head-long screws that hold the mounting bracket. 3. Remove the center nut holding the spring mechanism to the mounting bracket. 4. - Page 11 MOUNTING TYPE Type R Type S Type C Type F Type A Retractable Cord Stem Mount Cord Mount Fixed Mount Adjustable Wall Mount or Overhead Adjusts up and Up to 71” stem Available in any Up to 71” stem Mount down to vary heat length length...
