Installation and User Guide
V
™
S
-
V
W
K
V
™
S
-
V
W
K
A
D
D
I
O
Q
U
I
G
G
L
E
I
D
E
O
H
I
T
E
B
O
A
R
D
I
T
A
D
D
I
O
Q
U
I
G
G
L
E
I
D
E
O
H
I
T
E
B
O
A
R
D
I
T
"Make Any Whiteboard into a Video Whiteboard"
Model Numbers:
999-5441-000: North America
999-5441-001: International
©2011 Vaddio - All Rights Reserved. Squiggle - Video Whiteboard Kit - Document Number 342-0172 Rev. B
Advertisement
Summary of Contents for VADDIO 999-5441-000

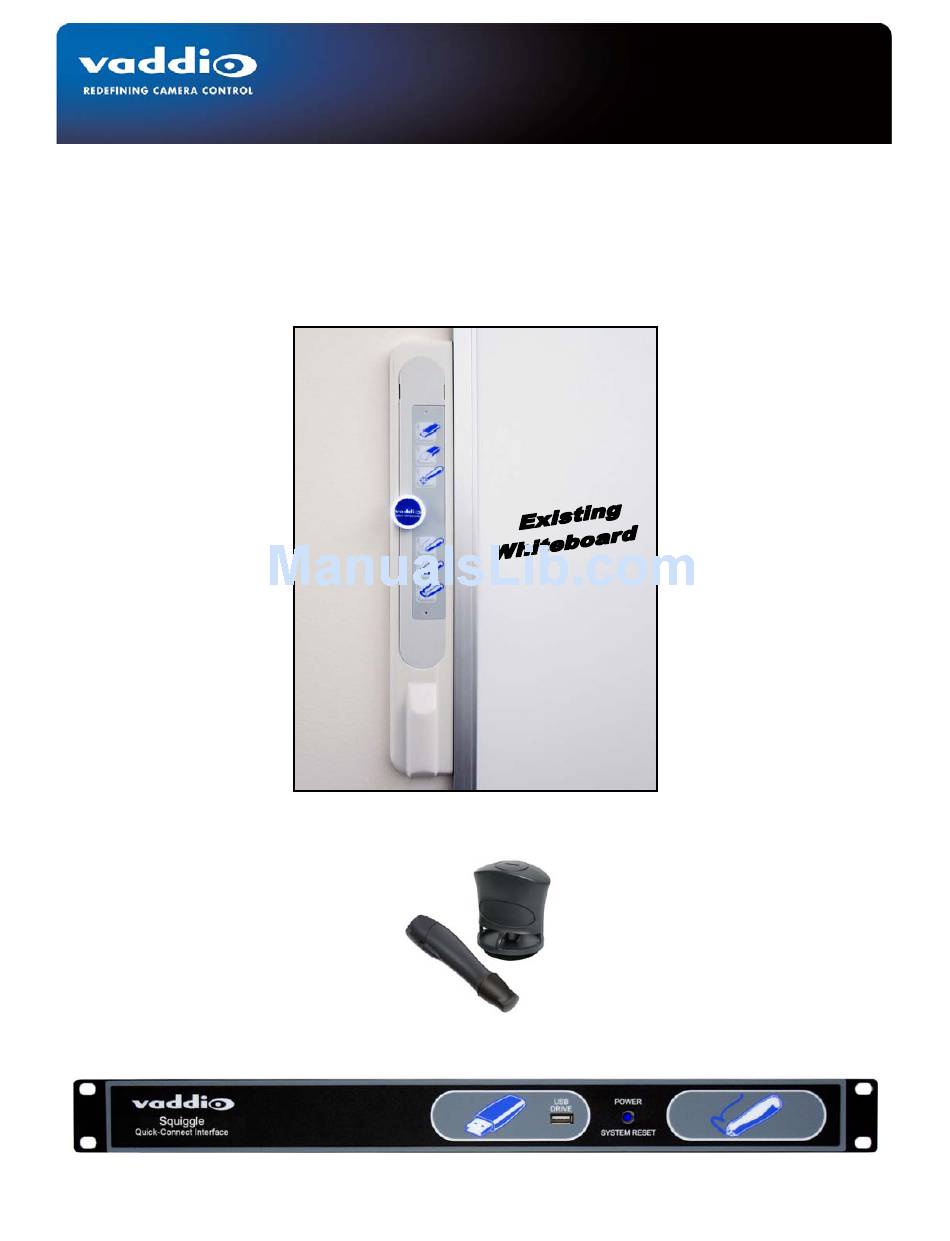

- Page 1 Installation and User Guide ™ ™ “Make Any Whiteboard into a Video Whiteboard” Model Numbers: 999-5441-000: North America 999-5441-001: International ©2011 Vaddio - All Rights Reserved. Squiggle - Video Whiteboard Kit - Document Number 342-0172 Rev. B...
- Page 2 Squiggle Video Whiteboard Kit Inside Front Cover (blank) Squiggle Manual 342-0172 Rev. B Page 2 of 16...
- Page 3 Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
-
Page 4: Calibrate Button
Squiggle Video Whiteboard Kit Unpacking: Carefully remove the Squiggle device and all of the parts from the packaging and identify the following parts: • One (1) Digital Control Panel (and digital control panel removal tool) • One (1) EZTub Enclosure •... - Page 5 The DVI-D and YPbPr outputs are simultaneous outputs and are at a resolution of 720p/59.94 or 720p/50 which allows the Squiggle Board to be connected to a variety of video devices such as Vaddio switchers/mixers, videoconferencing codecs, monitors and other third-party video devices. •...
- Page 6 1” out from the wall. Make a mark at 1.5’ on the left side of the whiteboard surface and this will be where the center blue IR receiver (with the Vaddio Logo) will be aligned. Center, Left Side of Whiteboard...
- Page 7 For best results please use standard RJ-45 connectors and test all cables for proper pin-outs prior to connection to Vaddio products. Step 7: At the head end, connect the Cat-5e cable to the RJ-45 jack on the rear panel Squiggle Quick-Connect Interface labeled “TO VIDEO WHITEBOARD”.
- Page 8 Upon connection of the Squiggle and powering up the Squiggle Quick-Connect Interface, the system will boot up and the Vaddio splash screen will be seen on the HD 720p or SD display device. Automatically, the Software Version number, MAC address and the legal notices are displayed briefly. The MAC will be needed as the Ethernet functions are added to the software and for technical support.
- Page 9 Squiggle Video Whiteboard Kit Calibration: The system will load the default 4’ x 6’ whiteboard calibration size. It is recommended that if you have a 4’ x 6’ whiteboard, perform the calibration process anyway. Any other size whiteboard requires calibration. The process to calibrate the system is as follows: 1) Touch the Calibration button on the Digital Control Panel and the following screen is displayed.
- Page 10 Squiggle Video Whiteboard Kit For Best Squiggle Results: Pen & Eraser Etiquette: The Squiggle Digital Marker Sleeve is the device that is tracked by the ultra sonic sensors and the IR sensor in the Digital Control Panel. In order to achieve the best results, adhere to the following guidelines.
-
Page 11: General Specifications
HD Monitor (Simulated VC Feed) General Specifications: Squiggle Video Whiteboard Kit 999-5441-000: Squiggle Video Whiteboard Kit - North America Part Numbers 999-5441-001: Squiggle Video Whiteboard Kit - International Dimensions EZTub: .875” (22.23mm) Thick x 14” (355.6mm) Long x 2” (50.8mm) Wide Digital Control Panel: .275”... - Page 12 Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.
-
Page 13: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. - Page 14 Squiggle Video Whiteboard Kit Squiggle Notes: Squiggle Manual 342-0172 Rev. B Page 14 of 16...
- Page 15 Squiggle Video Whiteboard Kit Inside Back Cover (blank) Squiggle Manual 342-0172 Rev. B Page 15 of 16...
- Page 16 ©2011 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, Quick-Connect, EZTub, PowerRite, HSDS and EZCamera are registered trademarks of Vaddio. All other trademarks are property of their respective owners.
