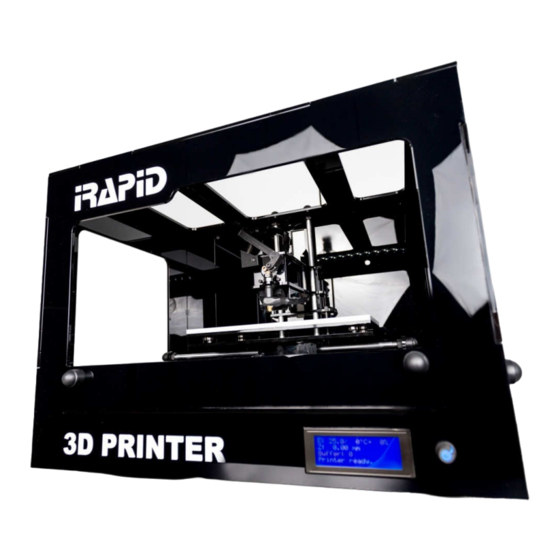

Summary of Contents for iRapid personal 3d printer

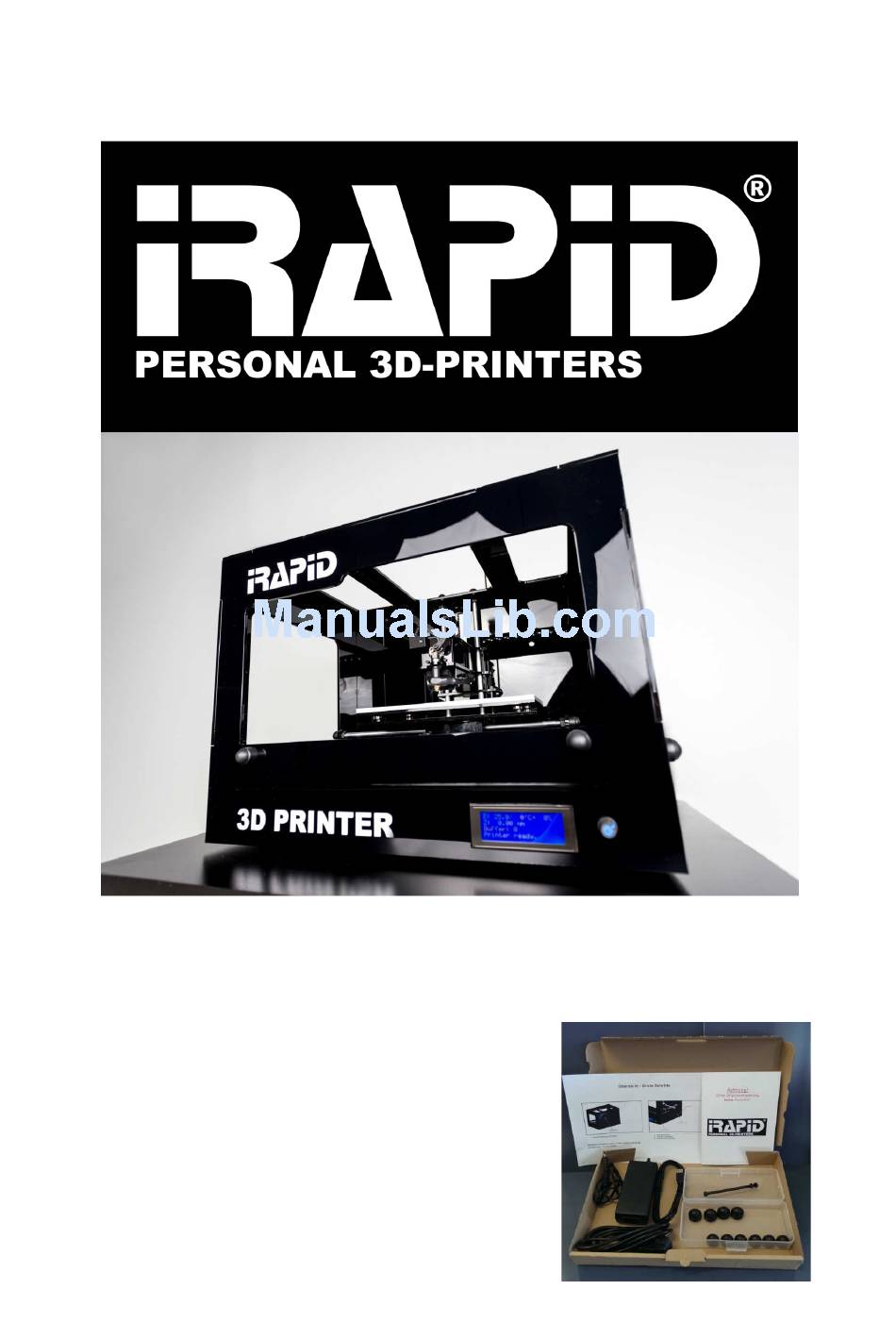

- Page 1 User Manual iRapid Black Delivery contents: • iRapid 3D Printer Accessories • Spool holder, protective caps • Power supply, USB cable • Oil, allen key • Scraper • Instructions • Overview...
-
Page 2: Table Of Contents
Page 12 6.1 Printing with PC Page 12 6.2 Data Transfer to the Internal Memory Page 16 6.3 Printing without PC Page 19 Technical Data of iRapid BLACK Page 21 How to Fix Common Problems Page 22 Hardware Page 24 Software... -
Page 3: Introduction
1. Introduction Thank you for choosing the iRapid 3D printer! This device has been designed with utmost care in order to satisfy your requirements. To use your 3D printer immediately, please use the instructions to setup the printer and read the information in the user manual on performing basic functions. - Page 4 WEEE- Waste from Electrical and Electronic Equipment) The WEEE symbol signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products after use. For more information about recycling options, visit the website at www.irapid.de.
-
Page 5: Guarantee And Warranty
Download software and applications only from our website: (http://www.irapid.de/downloads/software/Software.zip The company iRapid GmbH assumes no liability for any loss of data on any internal or external storage medium. The device has been pre-installed with software and works as can be reasonably expected. -
Page 6: Quick Overview
4. Overview... -
Page 7: Preparation
Preparation Download and install the software from the iRapid page Free iRapid Software for Windows XP, Vista, Windows 7 und Windows 8: Step 1: Download the software here: http://www.irapid.de/downloads/software/Software.zip Step 2: Unzip the software. Step 3: Install the software. All necessary drivers are installed automatically. - Page 8 Step 5: Start the software and select "Configuration". Step 6: Select "Printer Settings".
- Page 9 Step 7: Select the highest COM port. Step 8: Connect now with the 3D printer.
- Page 10 Insert the filament Step 1: Turn on the printer and the display shows "Printer Ready". Step 2: Select "Quick settings." Step 3: Select "Preheat PLA." Step 4: Wait until 200 ° C is reached.
- Page 11 Step 5: After heating, depress the clamping lever. Step 6: Now carefully insert the filament. Step 7: Press the plastic wire gently until the molten plastic wire comes.
-
Page 12: Printing
6. Printing 6.1 Printing with PC Step 1: Connect the 3D printer to the PC. Step 2: Load the object. - Page 13 Step 3: Select Slic3er for the calculation of the file. Step 4: Choose the layer resolution...
- Page 14 Step 5: Start the calculation of the object. Step 6: The program calculates the object, please wait.
- Page 15 Step 7: Select after calculating "Start Job". Step 8: The 3D printer will print the object.
-
Page 16: Data Transfer To The Internal Memory
6.2. Data transfer to internal memory Step 1: First, load an object and calculate (slice) this. Step 2: After the calculation, select SD card. - Page 17 Step 3: A new window will open, select here the upload button. Step: Assign a name...
- Page 18 Step 5: Data is transferred. Step 6: Now, print the file without PC...
-
Page 19: Printing Without Pc
6.3. Printing without PC Step 1: Turn on the printer, the display showing „printer ready“ Step 2: Choose "SD Card" Step 3: Choose "Print file"... - Page 20 Step 4: Choose "Sample or Test " Step 5: The 3D printer is printing...
-
Page 21: Technical Data Of Irapid Black
7. Technical data profile of iRapid BLACK Print Technology: Fused Filament Fabrication Max. print dimensions: approx. 250mm width, 150mm depth, 120mm height Filament diameter: 1.75mm Layer Resolution Settings: 50 Micrometer (0,05mm) For small parts 100 Micrometer (0,10mm) For small parts... -
Page 22: How To Fix Common Problems
8. How to fix common problems 8.1 Hardware Plastic wire (filament) is not inserted in the nozzle. If the 3D printer is turned off and is still connected via the USB cable to the PC, the display remains lit. For optimal printing results, the printing table must be precisely adjusted to the nozzle. - Page 23 As a rule: If the gap is too big, the adhesion is too weak If the gap is too small, the adhesion is too strong.
-
Page 24: Software
8.2 Software • Use only offered by iRapid software on the website. • Is there still a problem with the software please contact our support team via our website www.iRapid.de. 9. Contact us iRapid GmbH Gottfried-Hagen-Straße 60 51105 Cologne Germany Tel: +49 221 16 80 49 0 Mail: info@irapid.de...
