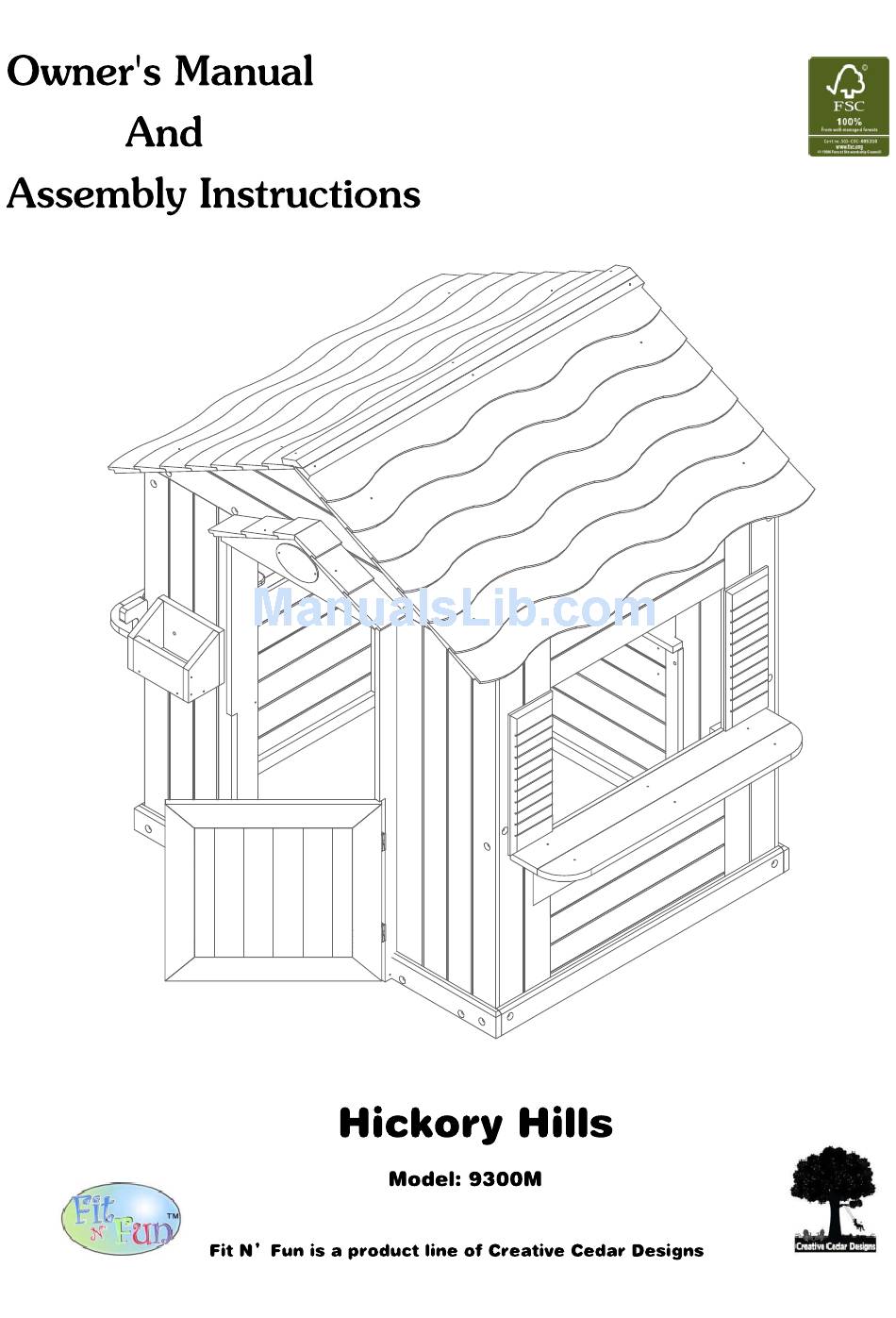

Fit N'Fun 9300M Hickory Hills Owner's Manual And Assembly Instructions

Playhouse
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9300M Hickory Hills and is the answer not in the manual?

Questions and answers

Summary of Contents for Fit N'Fun 9300M Hickory Hills

  • Page 11: Assembly Instructions

    Hickory Hills Assembly Instructions WARNING: CHOKING HAZARD Unassembled parts may be a choking hazard to children 3 years and younger CAUTION: Adult Assembly Required. Hardware contains small pieces with sharp points. Keep parts out of the reach of children until assembled. Parts of this product can present dangers if improperly assembled.
  • Page 12 Basic Setup Dimensions Place the set on level ground, not less than 6ft [2 M]from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines or electrical wires. 4' [1221mm] 5'-5" [1654mm] HEIGHT = 4'-6" [1363mm] INSIDE DIMENSIONS 3' [905mm] WIDTH x 3'-9"...

  • Page 13: Parts Identification

    Parts Identification 2A017-10 BACK LEFT WALL (1 REQ.) 2A015-10 LEFT WALL 2A016-10 RIGHT WALL 2A018-10 BACK RIGHT WALL (1 REQ.) (1 REQ.) (1 REQ.) 2A020-10 BACK WALL UPPER SECTION (1 REQ.) 2A019-10 BACK WALL LOWER SECTION 2A021-10 BACK GABLE WALL (1 REQ.) (1 REQ.) 2A026-10 DOOR ENTRY GABLE...
  • Page 14 Parts Identification 11/16 [17mm] 11/16 [17mm] 21 5/8 [550mm] 11/16 [17mm] 36 9/16 [929mm] 46 15/16 [1191mm] WD3078-10 SHELF BOARD WC3075-10 BACK WALL BOTTOM TRIM WC3074-10 SIDE WALL BOTTOM TRIM (1 REQ.) (1 REQ.) (2 REQ.) 11/16 [17mm] 11/16 [17mm] 11/16 [17mm] 6 1/2 [165mm] 32 7/8 [835mm]...
  • Page 15 Parts Identification 2 - Plastic Stakes - P004 (P-MBXF) MAILBOX FLAG (1 REQ.) (P-SB) SINK BOWL (1 REQ.) (P-TUB-B) BLUE TUB (P-TUB-G) GREEN TUB (1 REQ.) (1 REQ.) (P-SPOUT) SINK SPOUT (1 REQ.) (P-FAUCET-R) RED FAUCET KNOB (P-FAUCET-B) BLUE FAUCET KNOB (1 REQ.) (1 REQ.) DOOR HINGE...

  • Page 16: Hardware Identification

    Hardware Identification CS1/4 Cup Washer SH1/4X2 1/4 Socket Head Bolts FW1/4 Flat Washer LW1/4 Lock Washer Imperial Metric SH1/4X1 7/8 Socket Head Bolts 1/4" LN1/4 Lock Nut 1/2" SH1/4X1 5/8 Socket Head Bolts 3/4" 1" SH1/4X1 Socket Head Bolts LW3/16 Lock Washer FW3/16 Flat Washer 2"...
  • Page 17 Measuring hardware It is very important that you get the right hardware in the correct place when assembling the unit. You can use the ruler below to measure your hardware or you can compare the hardware to the hardware identification page. NOTES: 1) Do not include bolt head when measuring length of bolt.
  • Page 18 Phase Phase Hardware Left Wall Prep. CS1/4 CUP WASHER SH1/4X1 5/8 Socket Head Bolts LW1/4 Lock Washer NOTE: DO NOT TIGHTEN HARDWARE UNTIL ASSEMBLY IS COMPLETE. Phase Parts NOTE: IDENTIFY INSERT NUTS ARE THESES HOLES FOR LEFT WALL ORIENTATED WH3092-10 CORNER UPRIGHT-LEFT TOWARD INSIDE (1 REQ.) 2A015-10 LEFT WALL...
  • Page 19 Phase Phase Hardware Right Wall Prep. CS1/4 CUP WASHER SH1/4X1 5/8 Socket Head Bolts LW1/4 Lock Washer NOTE: DO NOT TIGHTEN HARDWARE UNTIL ASSEMBLY IS COMPLETE. Phase Parts WH3092-10 CORNER UPRIGHT-LEFT (1 REQ.) WH3093-10 CORNER UPRIGHT-RIGHT 2A016-10 RIGHT WALL (1 REQ.) (1 REQ.) 2A016-10 NOTE:...
  • Page 20 Phase Phase Hardware Back Wall Prep. CS1/4 CUP WASHER SH1/4X1 Socket Head Bolts LW1/4 Lock Washer NOTE: DO NOT TIGHTEN HARDWARE UNTIL ASSEMBLY IS COMPLETE. Phase Parts 2A020-10 BACK WALL UPPER SECTION (1 REQ.) 2A019-10 BACK WALL LOWER SECTION 2A017-10 BACK LEFT WALL (1 REQ.) (1 REQ.) 2A018-10 BACK RIGHT WALL...
  • Page 21 Phase Back & Side Walls Phase Hardware Assembly CS1/4 CUP WASHER SH1/4X1 5/8 Socket Head Bolts LW1/4 Lock Washer NOTE: DO NOT TIGHTEN HARDWARE UNTIL ASSEMBLY IS COMPLETE. SH1/4X1 5/8 LOCK WASHER & CUP WASHER BACK WALL ASSEMBLY FROM PHASE 3 WALL 2A016-10 FROM PHASE 2 WALL 2A015 -10...
  • Page 22 Phase Front Wall Phase Hardware Assembly CS1/4 CUP WASHER SH1/4X2 1/4 Socket Head Bolts NOTE: DO NOT TIGHTEN SH1/4X1 5/8 Socket Head Bolts HARDWARE UNTIL ASSEMBLY IS LW1/4 Lock Washer COMPLETE. Phase Parts 2A022-10 FRONT LEFT WALL 2A023-10 FRONT RIGHT WALL (1 REQ.) (1 REQ.) 2A023-10...
  • Page 23 Phase Front Wall Assembly Phase Hardware Continued CS1/4 CUP WASHER SH1/4X1 7/8 Socket Head Bolts LW1/4 Lock Washer NOTE: DO NOT TIGHTEN HARDWARE UNTIL ASSEMBLY IS COMPLETE. Phase Parts WH3091-10 DOOR WALL BRACE (1 REQ.) 2A023-10 2A022-10 INSIDE VIEW WH3091-10 2A022-10 WH3091-10 WH3091-10...
  • Page 24 Phase Door Assembly Phase Hardware & Installation WS1/8 X 1 1/2" Wood Screws Phase Parts WD3090-10 DOOR HEADER (1 REQ.) WJ3087-10 DOOR THRESHOLD WD3088-10 DOOR JAM-LEFT (1 REQ.) (1 REQ.) WD3089-10 DOOR JAM-RIGHT (1 REQ.) NOTE THE HOLE WD3090-10 ORIENTATION 19 13/16 WD3089-10 FLUSH...
  • Page 25 Phase Trim & Porch Gab. Phase Hardware LW1/4 Lock Washer Attachment CS1/4 CUP WASHER SH1/4X2 1/4 Socket Head Bolts WS5/32 X 2" Wood Screws NOTE: DO NOT TIGHTEN HARDWARE UNTIL ASSEMBLY IS SH1/4X1 5/8 Socket Head Bolts COMPLETE. WS1/8 X 1 1/8" Wood Screws Phase Parts WC3075-10 BACK WALL BOTTOM TRIM 2A026-10 DOOR ENTRY GABLE...
  • Page 26 Phase Mailbox Phase Hardware Assembly WS1/8 X 1 1/8" Wood Screws Phase Parts WD3086-10 MAILBOX BOTTOM WD3083-10 MAILBOX FLAG SIDE WD3084-10 MAILBOX RIGHT SIDE (1 REQ.) (1 REQ.) (1 REQ.) WD3082-10 MAILBOX FRONT BRD. (1 REQ.) WF3085-10 MAILBOX BACK (1 REQ.) WD3083-10 WD3084-10 WD3086-10...
  • Page 27 Phase Accessory Phase Hardware Attachment CS1/4 Cup Washer SH1/4X1 Socket Head Bolts LW1/4 Lock Washer Phase Parts 2A030-10 SINK VANITY (1 REQ.) MAILBOX ASSEMBLY FROM PH. 9 SH 1/4X1 & CUP WASHER...
  • Page 28 Phase Shelf Assembly Phase Hardware WS5/32 X 2" Wood Screws Phase Parts 1 [25mm] 5 7/8 [150mm] 6 5/8 [168mm] 1 [25mm] 2A029-10 LEFT WALL TUB SHELF WL3076-10 SHELF GUSSET (1 REQ.) WL3077-10 SHELF GUSSET (3 REQ.) (3 REQ.) WD3080-10 SHELF BOARD WD3081-10 SHELF BOARD (1 REQ.) (1 REQ.)
  • Page 29 Phase Shelf Phase Hardware Attachment WS5/32 X 2" Wood Screws NOTE: TYPICAL INSTALLATION FOR WALLS 2A015-10 & 2A016-10 ASSEMBLIES 2A015-10 FROM PREVIOUS PHASE FLUSH WITH WINDOW LEDGE CENTER GUSSETS ON PRE-DRILLED HOLES & FLUSH TOP OF SHELF WITH WINDOW LEDGE OUTSIDE OF WALL Parts 6 5/8 [168mm]...
  • Page 30 Phase Shutter Phase Hardware Attachment WS1/8 X 1" Wood Screws Phase Parts WF3073-10 WINDOW SHUTTER (4 REQ.)
  • Page 31 Phase Gable Phase Hardware Attachment SH1/4 X 1 5/8 Socket Head Bolts CS1/4 Cup Washer SH1/4 X 1 Socket Head Bolts LW1/4 Lock Washer NOTE: TIGHTEN ALL HARDWARE! WS1/8 X 1 1/2" Wood Screws Phase Parts 2A025-10 FRONT GABLE WALL (1 REQ.) 2A021-10 BACK GABLE WALL (1 REQ.)
  • Page 32 Phase Entry Roof Section Phase Hardware Attachment WS1/8 X 1 1/2" Wood Screws Phase Parts 2A028-10 DOOR GABLE ROOF SECTION-LEFT (1 REQ.) 2A027-10 DOOR GABLE ROOF SECTION-RIGHT (1 REQ.) REST ROOF SECTIONS ON DOOR ENTRY GABLE AND AGAINST THE FRONT WALL GABLE. ATTACH FROM INSIDE THROUGH THE PRE-DRILLED HOLES INTO THE ROOF SECTION BRACE.
  • Page 33 Phase ROOF ASSEMBLY Phase Hardware & ATTACHMENT WS1/8 X 1 1/2" Wood Screws WS1/8 X 1" Wood Screws Phase Parts ALIGN WITH WALL PEAK EDGE STEP 1: 2A032-10 ROOF RIDGE CAP (1 REQ.) WD3097-10 WD3097-10 2A031-10 ROOF SECTION WD3097-10 ROOF BOARD (2 REQ.) (2 REQ.) STEP 1:...
  • Page 34 Phase ACCESSORY Phase Hardware LN1/4 Lock Nut ATTACHMENT WS1/8X1 1/2" Wood Screws SH1/4X1 5/8 Socket Head Bolts FW1/4 Flat Washer WS1/8X3/4" Wood Screws LW3/16 Lock Washer FW3/16 FLAT WASHER PH3/16X3/4" Pan Head Screw Phase Parts (CHLKBRD) MENU BOARD (P-SB) SINK BOWL (P-SPOUT) SINK SPOUT (1 REQ.) (1 REQ.)
  • Page 35 Phase Phase Hardware Placard & Door FW3/16 Flat Washer Attachment LW3/16 Lock Washer Phase Parts PH3/16X1" Pan Head Screw WS3/16 X 5/8" Wood Screws (DRKNOB) DOOR KNOB (1 REQ.) DOOR HINGE DOOR (2 REQ.) (IN HARDWARE BAG) 2A024-10 DOOR FRAME PLACARD (1 REQ.) (1 REQ.) INSIDE...
  • Page 36 Phase Tighten All Hardware ASSEMBLY COMPLETE! MAKE SURE TO TIGHTEN ALL HARDWARE NOTE: DO NOT OVER TIGHTEN HARDWARE. Phase Hardware WS5/32 X 1 3/4" Wood Screws Phase Parts 2 - Plastic Stakes - P004 STAKE OPPOSITE CORNERS STAKE Deck Screw ASSEMBLY COMPLETE! MAKE SURE TO TIGHTEN ALL HARDWARE...
