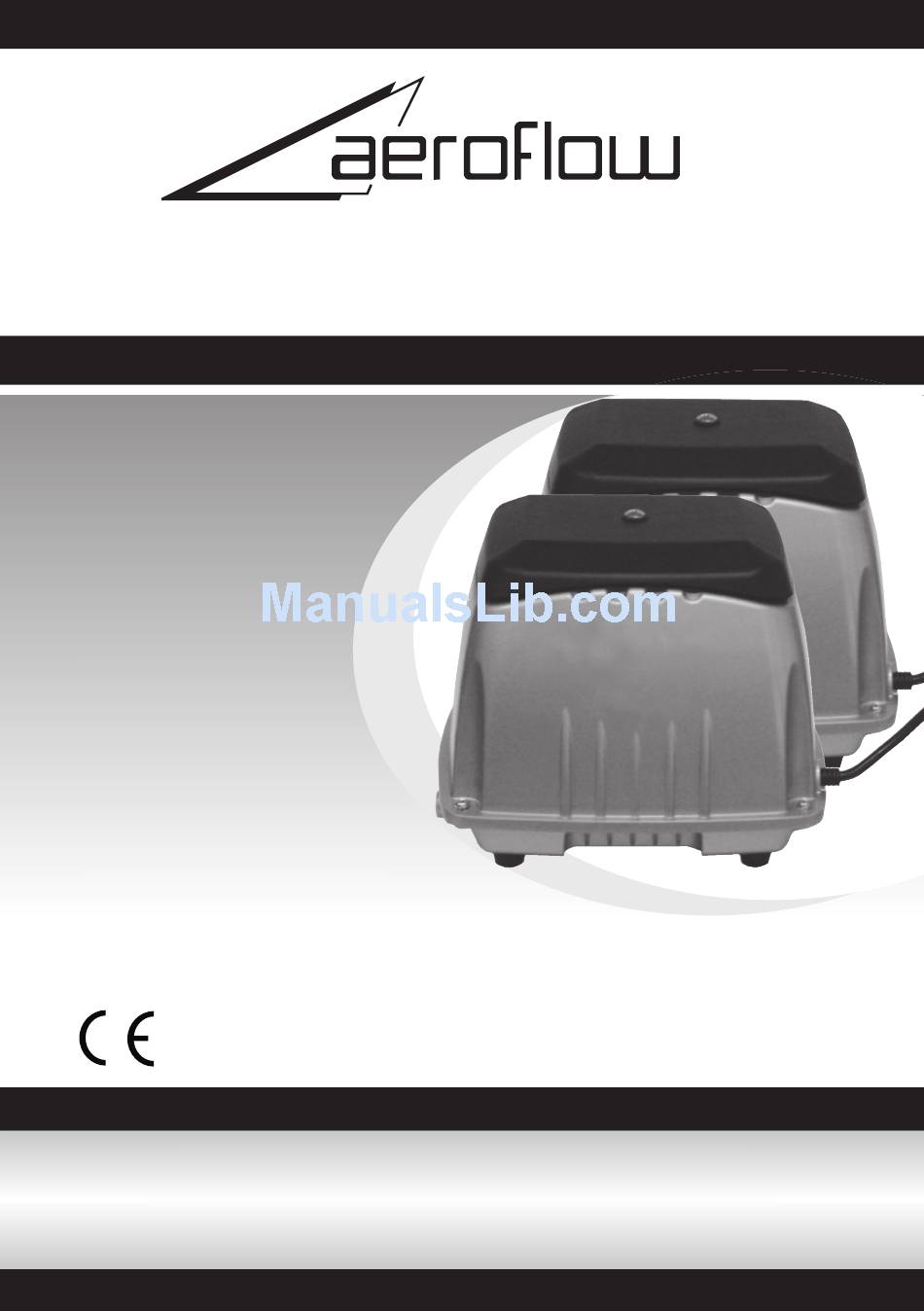

TM
Linear Air Pump
OIL – LESS COMPRESSOR
Operation and Maintenance Manual
IMPORTANT: PLEASE READ THIS MANUAL AND SAVE FOR FURTHER REFERENCE.
• HIGH EFFICIENCY
• LOW NOISE LEVEL
• SMOOTH AIR FLOW
• EASY MAINTENANCE
• COMPACT AND POWERFUL
• NO LUBRICATION REQUIRED
ISO 9001
Thankyou for purchasing this product, it is manufactured to the
highest standards using quality materials.
Please follow all recommended maintenance, opertational and safety
instructions and you will receive years of trouble free service.
Advertisement
Table of Contents
Summary of Contents for AeroFlow OIL – LESS COMPRESSOR
- Page 1 Linear Air Pump OIL – LESS COMPRESSOR Operation and Maintenance Manual IMPORTANT: PLEASE READ THIS MANUAL AND SAVE FOR FURTHER REFERENCE. • HIGH EFFICIENCY • LOW NOISE LEVEL • SMOOTH AIR FLOW • EASY MAINTENANCE • COMPACT AND POWERFUL • NO LUBRICATION REQUIRED ISO 9001 Thankyou for purchasing this product, it is manufactured to the highest standards using quality materials.
-
Page 2: Cautions For Use
WARNING • IMPORTANT SAFEGUARDS – READ AND FOLLOW ALL SAFETY INSTRUCTIONS • TO REPLACE OR CHANGE ANY OF THE PARTS REFERRED TO IN THE SERVICE MANUAL, WE STRONGLY RECOMMEND YOU CONTACT AN AUTHORISED TECHNICIAN. DANGER To avoid possible equipment electric shock, special care should be taken when the pump system is used as aquarium equipment. -
Page 3: Installation
cause an unsafe condition. Do not install pump where it will be exposed to weather, do not store pump in temperatures below freezing. Ensure pump is securely mounted prior to operation. Read and observe all important markings on pump. 10) Ensure that extension cords (if required) have the correct or higher rating (amperes or watts). -
Page 4: Electrical Connection
ELECTRICAL CONNECTION This product must be properly grounded. Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified electrican. If repair or replacement of the cord or plug is necessary, do not connect the ground- ing wire to either flat blade or terminal. -
Page 5: Operation
OPERATION Use only recommended air handling parts acceptable for pressure not less than 10 psi. When provided, motor terminal covers must be in place for safe operation. Prod- uct surfaces may become hot during operation. Do Not direct air stream at body. Air stream from product may contain solid or liquid material that can result in eye or skin damage, wear proper eye protection. - Page 6 A-80LM, A-100LM NO. DESCRIPTION NO. DESCRIPTION NO. DESCRIPTION NO. DESCRIPTION NO. DESCRIPTION TOP SCREW TOP SCREW TOP SCREW TOP SCREW TOP SCREW FILTER COVER FILTER COVER FILTER COVER FILTER COVER FILTER COVER FILTER FILTER FILTER FILTER FILTER UPPER HOUSING UPPER HOUSING UPPER HOUSING UPPER HOUSING UPPER HOUSING...
-
Page 7: Warranty
DIY MAINTENANCE MANUAL DIY MAINTENANCE MANUAL A-80LM, A-100LM To clean the air filter (Recommended once every six months) To clean the air filter (Recommended once every six months) Loosen the screw on top. (As show in Figure1) Remove filter cover. Figure 1 Figure 1 Take the filter out and clean it with clean water and dry it. -
Page 8: Warranty Conditions
The repair is carried out by GENERAL PUMP COMPANY/AEROFLOW or its agent who has been specifically authorised in writing to carry out the repair under... - Page 9 · Due to advice, directions or instructions provided by GENERAL PUMP COM- PANY/AEROFLOW, it’s Staff and/ contractors · That is determined by GENERAL PUMP COMPANY/AEROFLOW to be fair, nor- mal wear and tear, misuse and abuse · The Supplier shall not be under any liability for any injury, including loss of life, damage, loss including consequential damage or loss including physical, finan-...
- Page 10 In the case of equipment or components which are not manufactured, repaired or installed by GENERAL PUMP COMPANY/AEROFLOW but are supplied by the company, the warranty is limited to that extended by the manufacturer, supplier, repairer or installer of such equipment or components.
