Silent Call Communications WC08-SS Setup And Operation

"Silent Touch" Watch Receiver and Charger/Docking Station Model # WC08-SS
"Silent Touch" Watch Receiver, Charger/Docking Station and Bed Vibrator
The "Silent Touch" Watch is a body worn receiver designed to operate as a watch, wake-up alarm and a built-in
receiver that operates with any Silent Call Signature Series transmitters.
When the watch receives a transmitted signal a specific ICON for that signal will display on the face of the "Silent
Touch" Watch. The Watch will vibrate a specific code for each transmitted signal. When the "Silent Touch" Watch is
being charged in the docking station, you can connect the external bed vibrator (optional) into the jack on the back of
the charger/docking station located to the right of the battery on/off switch. Place the bed vibrator between the mattress
and box springs of the bed or under your pillow, whichever is more effective for you. This allows your
Charger/Docking station to serve as an alerting device while your "Silent Touch" Watch Receiver is charging. The bed
vibrator will pulse the same vibration alarm codes as the "Silent Touch" Watch Receiver.
Vibrator Pulse Outputs
SOUND = three short pulses
PHONE = one long pulse
DOOR = two short pulses
WEATHER = one short and one long pulse
FIRE = continuous short pulses
CO Carbon Monoxide = three short pulses and one long pulse
Setup and Operation:
1. Your Silent Touch Watch comes from the factory mounted in the docking station. When you first receive it,
you must remove the Silent Touch Watch from the docking station by pushing down on the release button to
the left of the watch. There will be a small round label over the charging pins that must be removed before
attempting to charge the Watch Receiver. Once you have removed this label you can now follow the
instructions below to charge your Silent Touch Watch Receiver.

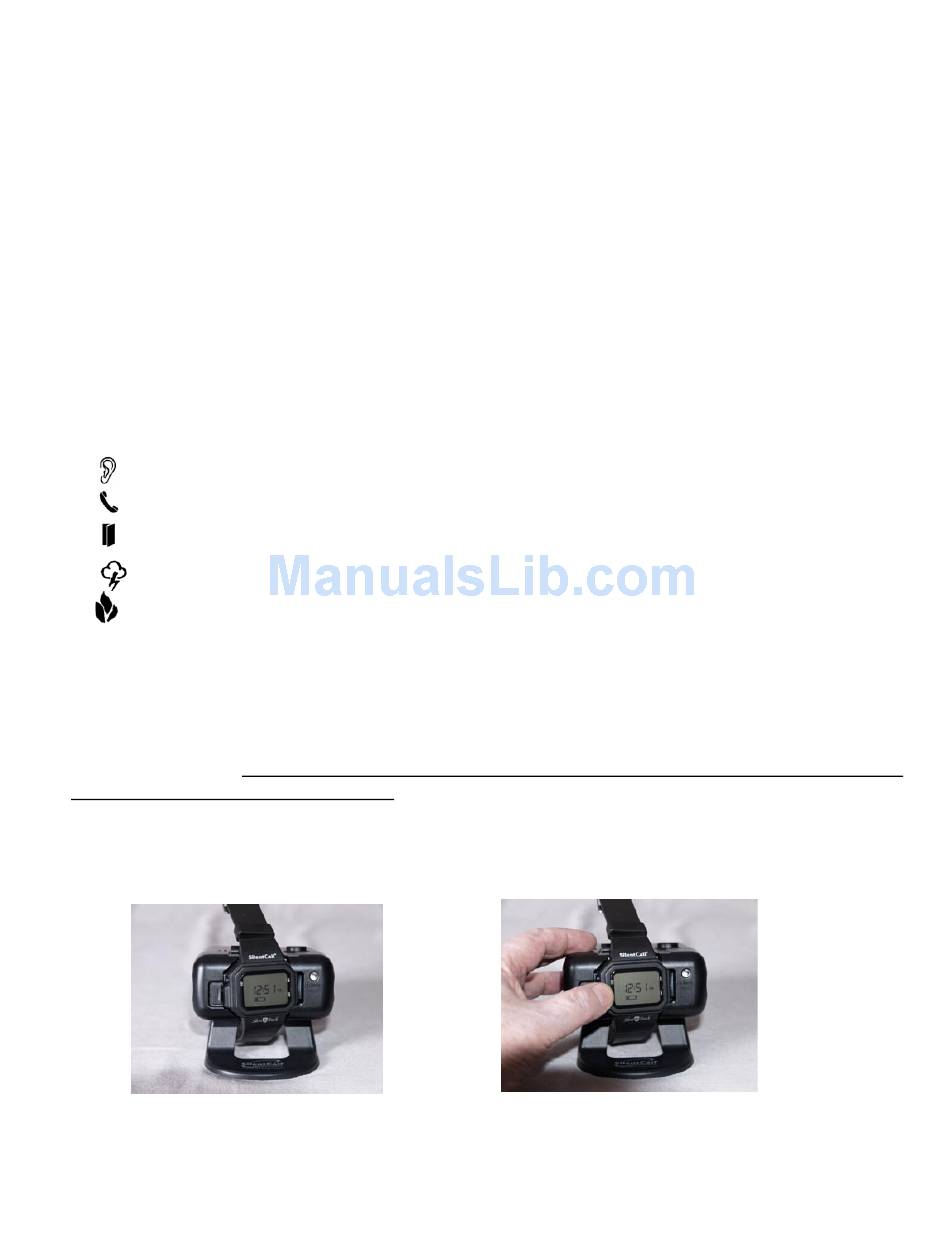

2. Install the "Silent Touch" Watch Receiver into the charger/docking station by first inserting the right side with
the switches marked SW1 & SW2 on an angle into the docking station (see Fig.1) then gently pushing down on
the left side until it snaps into place (see Fig.2)
3. Plug the power supply pin jack into the connector located to the left of the Battery Backup ON/OFF switch on
the back of the Docking station. (see page 2 for diagram) Plug power supply into a standard 120 volt electrical
wall outlet and Slide the Battery Backup Switch to the "On" position.
Kit Model # WCV08-SS
Fig.1
OR
Fig. 2
