iQtronic IQSocket IQSW-GSM User Manual

Intelligent power socket
Hide thumbs
Table of Contents

Advertisement

Quick Links

User
Guide

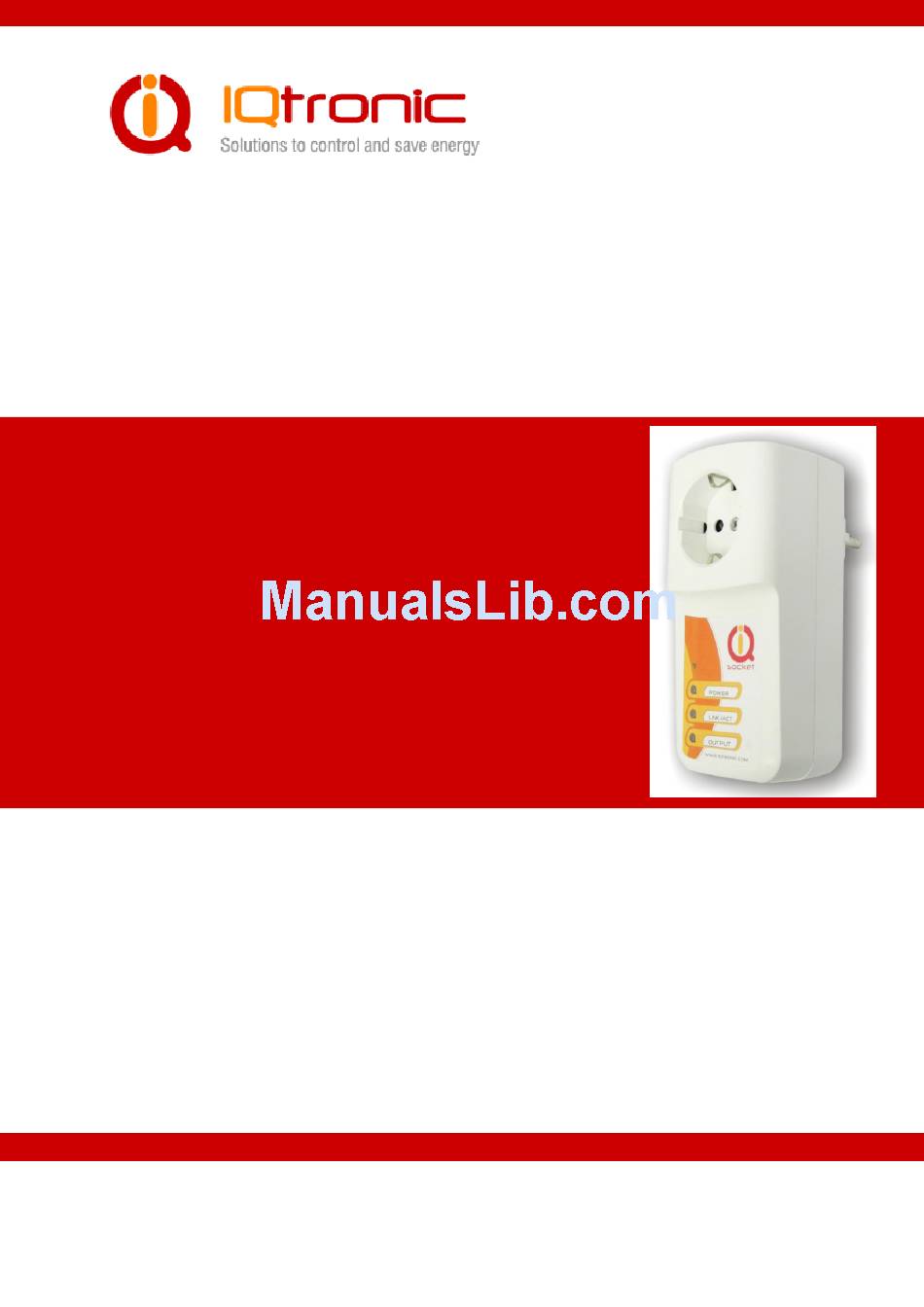

IQSocket IQSW-GSM
Version v1.0 rev3
User guide
www.IQtronic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQSocket IQSW-GSM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iQtronic IQSocket IQSW-GSM

  • Page 1 User Guide IQSocket IQSW-GSM Version v1.0 rev3 User guide www.IQtronic.com...

  • Page 2: Table Of Contents

    2 Introduction ..............4 2.1 Product features ................5 3 Installation ..............6 3.1 Inserting SIM Card ................ 6 3.2 Wiring the IQsocket IQSW-GSM ............7 3.2.1 Using jack input and output ............ 8 3.3 Powering IQSW-GSM On ............... 10 4 Managing IQSW-GSM ............

  • Page 3: Important Information

    ©2011 IQtronic, Ltd 1.1 Important information Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without further notice.

  • Page 4: Introduction

    GSM network. You can use for this purpose any mobile phone or even fixed-line telephone, simply by calling to, or by sending SMS to the number of SIM card inserted of your IQsocket IQSW-GSM. Output power socket: Connect your electric appliance here.

  • Page 5: Product Features

    Time scheduler function, allowing switching on/off your appliance based on day of week and time. 2.1 Product features In general, IQsocket IQSW-GSM has following features: Controlling (turn on, turn off; turn on/off for a specified time; restart by cutting power for short time) of any electric appliance connected to...

  • Page 6: Installation

    3.1 Inserting SIM Card Prepare a standard size SIM card from your favorite GSM operator and insert it into SIM bay of your IQsocket IQSW-GSM: Insert SIM card into the SIM bay and push it gently inside until you hear/feel a click, so it becomes locked inside bay.

  • Page 7: Wiring The Iqsocket Iqsw-Gsm

    ©2011 IQtronic, Ltd Note… It is highly recommended to delete all received SMS messages, stored on the SIM card before using it in IQsocket IQSW-GSM 3.2 Wiring the IQsocket IQSW-GSM Wiring is intuitive, simply connect your electric appliance into the device‟s socket and plug the IQSW-GSM into a free power socket.

  • Page 8: Using Jack Input And Output

    ©2011 IQtronic, Ltd 3.2.1 Using jack input and output Both Output of auxiliary microrelay – the Jack1 and Input for external sensors – the Jack2 use for connection a standard 3.5mm “stereo jack” (three pin) sockets. Input – Jack2: Opto-isolated input for external sensors.
  • Page 9 ©2011 IQtronic, Ltd Jack2 - output Input jack detects if there is a plug inserted into it, which is indicated by the STATUS message and response to INPUTALARM command. Output is provided in a form C/SPDT microrelay contact as shown in the drawing –...

  • Page 10: Powering Iqsw-Gsm On

    ©2011 IQtronic, Ltd 3.3 Powering IQSW-GSM On Once you plug your IQsocket IQSW-GSM into a live electric socket, it become powered on and starts operation. You can verify it by observing status of the LEDs: Once AC power is connected, all three LED indicators will blink shortly and internal self-test is performed in about 10seconds.
  • Page 11 ©2011 IQtronic, Ltd COMMAND (e.g. STATUS) o with un-configured security password/SMSPIN There are two kinds of commands: Control commands (labeled as Ctrl in tables) o Used to control of the IQSW-GSM and can be used at any time. Security settings, such as SMSPIN, permitted callers list, DO apply.
  • Page 12 Change (negate) state of the socket Restarted2 Ctrl and the auxiliary output for time preconfigured by command RESTARTTIME. STATUS Get status of IQsocket IQSW-GSM: Output:OFF/OFF, Ctrl socket and auxiliary output, time, Time:yy/mm/dd,hh:mm:s temperature, last power lost event, ° s, TEMP: 25 input state and GSM signal.

  • Page 13: Managing By Phone Call

    ©2011 IQtronic, Ltd Note… Please note output socket is physically turned to the on state only after passing 30 seconds startup delay since device has been powered on. This is indicated by slow blinking (approx every two seconds) of the output LED indicator (yellow).

  • Page 14: Manual Control

    Note… Manual control by pressing of the push button become active after 30 seconds since IQsocket IQSW-GSM is powered on. A SIM card must be inserted in the SIM bay. 4.4 Timing setup Following table summarizes settings of time interval of RESTART command.

  • Page 15: Security Features

    SIM card (and SMS pin in case PIN code protection is also active). IQsocket IQSW-GSM allows to define up to 20 permitted phone numbers, each containing up to 15 numerals. In case of using SMSPIN, right before each SMS command is placed PIN code...

  • Page 16: Response Messages Settings

    65440655. 421 is country code in this example and 2 is area code. 4.7 Response messages settings When you communicate with your IQsocket IQSW-GSM, it is important to make you sure if command was understood and executed successfully. For this purpose we implemented response messages, confirming each command or informing you when an error is detected.
  • Page 17 ©2011 IQtronic, Ltd SMS Command Description SMS Response Type SMSCONFIRM=YES SMS confirmation is enabled/active SMSCONFIRM=YES - OK for all SMS commands. SMSCONFIRM=NO SMS confirmation is SMSCONFIRM=NO - OK disabled/inactive for all SMS commands. SMSCONFIRM? Get configuration of SMSCONFIRM SMSCONFIRM=NO,(YES) parameter, active setting is in () parentheses.

  • Page 18: Scheduler Feature

    ©2011 IQtronic, Ltd 4.8 Scheduler feature Your IQsocket IQSW-GSM is equipped with a scheduler, allowing to control output socket and to get status message, based on time and day of week. Up to 20 scheduled tasks are supported. Following table summarizes usage of SCHEDULER command.
  • Page 19 ©2011 IQtronic, Ltd o 11:00,*,ON 1 Turn on Output1 every day at 11:00 o 14:30,*,OFF1 Turn off Output1 every day at 14:30 o 01:30,1,RES1 Restart Output1 every Monday at 01:30 o 19:00,5,INF Send Status SMS every Friday at 19:00 Note…...

  • Page 20: Thermostat Function

    ©2011 IQtronic, Ltd 4.9 Thermostat function Thermostat function act as a temperature regulator to control power socket or output microrelay circuit, using two temperature thresholds which control selected output. This is just a supplemental feature due to limited accuracy of the power sensor ±...

  • Page 21: Power Lost Alarm

    4.10.2 for more information. 4.10.1 Power lost alarm The IQsocket IQSW-GSM is equipped with Power lost alarm feature, which can send an SMS alert to preconfigured number in case of mains power is lost and restored back.
  • Page 22 ©2011 IQtronic, Ltd Defining phone number where to send power alarm alerts Command PWRALARMNUMBER allows to specify the phone number, where will be sent alerts in case of Power lost alarm events. Following table summarizes its usage: SMS Command Description...

  • Page 23: Defining Phone Numbers For Sms And Ringing Up Alerts

    ©2011 IQtronic, Ltd 4.10.2 Defining phone numbers for SMS and ringing up alerts Phone numbers must be entered in international format, see following table. SMS Command Description SMS Response Type ALARMNUMBER+ Add a new number into list for alarm ALARMNUMBER+4201234...
  • Page 24 ©2011 IQtronic, Ltd SMS Command Description SMS Response Type NEXTTESTTIME=1 Next activation of the input alarm is NEXTTESTTIME=1 - OK possible after 1 minute. NEXTTESTTIME? Get current settings of Input1 time NEXTTESTTIME=1 delay minutes If an input alarm state occurs sooner than is NEXTTESTTIME value, alarm will be activated after expiring of NEXTTESTTIME time.
  • Page 25 ©2011 IQtronic, Ltd Selecting type of input alarm alert SMS Command Description SMS Response Type ALARM=RING Type of alarm alert is ringing ALARM=RING- OK up defined telephone number(s) ALARM=SMS Type of alarm alert is sending ALARM=SMS- OK SMS to defined telephone...

  • Page 26: Temperature Alarm

    ©2011 IQtronic, Ltd 4.10.4 Temperature alarm IQSW-GSM allows watching user-defined temperature interval in range from 0 to 50°C using embedded temperature sensor. It is possible to define when will be alarm generated: when temperature is reaching minimum, maximum or both defined minimum and maximum levels; using the same levels TEMPON/TEMPOFF defined for the thermostat function (see Chapter 4.9)

  • Page 27: Using Microphone

    ©2011 IQtronic, Ltd 4.11 Using microphone Your IQSW-GSM is equipped with a highly sensitive microphone, which can be used to monitor sound through any phone. Sensitivity is typically sufficient to recognize voices within even larger room where is IQSW-GSM installed; it depends on device orientation and placement and also on background noise.

  • Page 28: Various Other Settings

    () parentheses. VERSION Get firmware version Ver. 2.0.1 (c)2011 Ctrl Note… Please note firmware of IQsocket IQSW-GSM can be upgraded only by sending unit back to the factory or to an authorized service center. Page 28 of 34...

  • Page 29: Error Messages

    ©2011 IQtronic, Ltd 4.13 Error messages Error messages are being sent only when sending response messages is permitted (see also ERRORREPLY command). SMS response Description Error! Incorrect control or configuration command; or wrong SMSPIN. Not allowed! In case of permitted phone numbers list is active but used number is not included in it.

  • Page 30: Indicators

    ©2011 IQtronic, Ltd 5 Indicators The IQsocket IQSW-GSM is equipped with three LED indicators: POWER LIGHTS RED Input power is OK; BLINKS RED 2 x PER SECOND SIM is not correctly inserted or missing or is bad LINK/ACT BLINKS GREEN, EACH 3 SECONDS...

  • Page 31: Factory Default Settings

    After this step is your device in original factory configuration. WARNING! Please BE CAREFULL! This step will erase all settings of your IQsocket IQSW-GSM except language settings. 6.2 Factory default settings Parameter Default setting Parameter...

  • Page 32: Technical Specification

    ©2011 IQtronic, Ltd 7 Technical specification Model IQsocket IQSW-GSM-E, CEE 7/5 French type socket IQsocket IQSW-GSM-F, CEE 7/4 "Schuko” earthed IQsocket IQSW-GSM-N, NEMA 5-15 USA socket IQsocket IQSW-GSM-B British BS 1363 Mains power 100-230VAC / 50-60Hz, own consumption avg. 20mA@230V...

  • Page 33: Operation, Maintenance And Safety Recommendations

    ©2011 IQtronic, Ltd 7.1 Operation, maintenance and safety recommendations Do not modify product in any way and do not operate product modified any way. Warranty is void when product was disassembled or modified in any way. Product is not fused; ensure it is installed in fused electric installation only.

  • Page 34: Ordering And Accessories

    ©2011 IQtronic, Ltd 8 Ordering and accessories IQsocket product family uses following ordering code system: IQSx-y-z Example: IQSW-GSM-F Product family: W=WALL | R=RACK | D=DIN | B=Board Product model: GSM | GSML | GSMRF | IP | RS232 | HDO | IPGSM...
