HIMS Co SenseView PORTABLE User Manual

Hide thumbs Also See for SenseView PORTABLE:
Table of Contents

Advertisement

Quick Links

Download this manual


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SenseView PORTABLE and is the answer not in the manual?

Questions and answers

Related Manuals for HIMS Co SenseView PORTABLE

Summary of Contents for HIMS Co SenseView PORTABLE

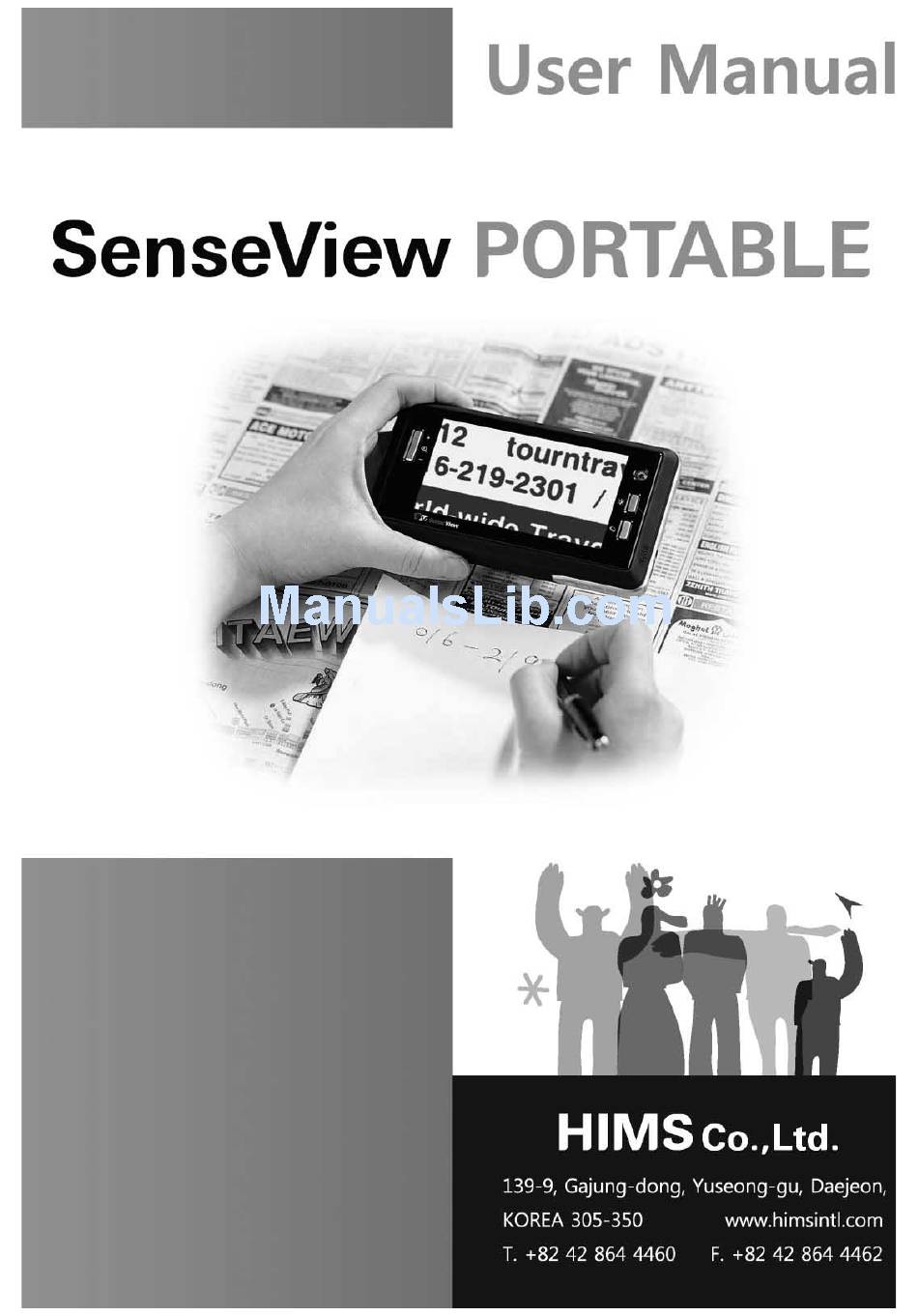

  • Page 1  ...

  • Page 2: Table Of Contents

        Table of Contents 1. What is the SenseView PORTABLE ..1 2. Safety precaution ..........2 3. Package............3 4. Configuration ..........4 5. After purchasing..........6 (1) ............Charging ..............6   (2)Remove protective film ..............6   6. How to use ...........7 (1)Starting...
  • Page 3 ..............8   (2) ............Zoom ..............8   ① ..........Zoom-in/out ..............8   legs ②Using ..............9   rate ③Magnification ...............10   (3)Changing color ..............11   (4)Changing brightness ..............11   (5)Still image ..............12   (6)Connecting external camera ..............12   (7)Additional features  ...
  • Page 4 ..............13   saving mode ①Power ...............13   battery status ②Checking ...............14   on/off ③Sound ...............15   handle ④Sliding ...............15   7. Troubleshooting ...........17 8. Technical Specification .......20 9. Warranty ............20  ...
  • Page 5  ...

  • Page 6: What Is The Senseview Portable

    1. What is the SenseView PORTABLE? The SenseView PORTABLE is a portable magnifier that makes low-vision and elderly to see small text through the large screen. It offers high magnification and vivid display. The Sense View PORTABLE is a slim, light and easily portable PDA style Pocket video magnifier.

  • Page 7: Safety Precaution

    2. Safety precaution To protect both yourself and the equipment, observe the following precautions.  Do not use damaged power plug or unsuitable outlet to prevent electronic shock or fire.  Do not touch power plug with wet hands to prevent electronic shock.

  • Page 8: Package

    3. Package (1) SenseView PORTABLE (2) AC adapter (3) Carrying bag (4) Strap (5) User manual  ...

  • Page 9: Configuration

    4. Configuration )   )   )   )   )   )   )   (1) Power switch (2) Zoom-in/out button (3) DC Jack (connect to a power adapter) (4) Strap hold (5) Camera indicator (6) Brightness button (7) Color mode button  ...
  • Page 10 (10)   )   )   (11)   (12)     (8) External video input (9) Sliding handle (10) Still image button (11) Camera (12) Legs  ...

  • Page 11: After Purchasing

    5. After purchasing (1) Charging Battery must be fully charged approximately for 3 hours prior to initial use.  To charge the battery, plug the supplied AC adapter into the AC adapter jack on the bottom of the left side edge. ...

  • Page 12: How To Use

    6. How to use (1) Starting the SenseView PORTABLE ① Power on/off  The Power switch is at the upper part of the left side.  To turn on, slide down the Power switch. The magnified image will show up.
  • Page 13 ② Location of the Camera To magnify the exact spot of the object, be aware of the camera location.  The Camera indicator is the blue and round- shaped icon at the upper right of the top panel.  When you turn on the unit, the Camera indicator will be on.
  • Page 14 ② Using the legs When you unfold the legs at the bottom, you can magnify in lower magnification rate than when you fold up the legs.  ...
  • Page 15 ③ Magnification rate By pressing the top of the Zoom rocker switch (left hand side), you can increase or decrease viewed image magnification level. There are 9 magnification levels. The rates are different when you fold up and unfold the legs. Use the legs for your convenience.
  • Page 16 (3) Changing color  The image on the LCD screen can be viewed in 6 color modes. To select your preferred mode press the bottom right button and cycle through the available schemes.  The available color modes are: 1) Full color 2) Black on white 3) White on black 4) Yellow on black...
  • Page 17  The Still image button is at the center of the rare panel.  Briefly press the button and the image the SenseView PORTABLE is showing at that instant will remain on the screen.  Press the button again to return to the normal viewing mode.

  • Page 18: ①Power Saving Mode

    (7) Additional features ① Power saving mode In order to save the battery, the Power saving mode will be activated when you do not use the unit for few minutes.      If you leave the unit turned on and unmoved for 3 minutes or more it automatically goes into a power saving mode.

  • Page 19: ②Checking The Battery Status

    ② Checking the battery status The battery indicator icon is displayed at up right corner on the LCD screen as a 3 segment horizontal bars in an oblong frame .   [A battery charging indicator]    When you press the Zoom-out button and the Color mode button simultaneously, the indicator will appear accompanied by an audio beep.

  • Page 20: ③Sound On/Off

    Note: Low battery - If the single low battery orange segment and the surrounding oblong box flash, along with a beep, the battery needs to be charged. ③ Sound on/off Every time you press each button, you can hear a sound to confirm your button stroke. You can turn on/off the sound for your convenience.
  • Page 21 ※ The gray part of the left side is not movable.  ...

  • Page 22: Troubleshooting

    7. Troubleshooting (1) It does not turn on.  Charge the unit prior to initial use. Plug the supplied AC adapter into the AC adapter jack on the bottom of the left side edge for 3 hours before using the unit. (2) The power is on, but I can’t get an accurate image.
  • Page 23  It may not on the screen but the camera lens. Wipe the camera lens with soft cloth. (5) I want to turn on/off the sound.  When you press each button, you can hear a sound to confirm your button stroke. To turn on/off the sound, press the Zoom-in button and the Brightness button simultaneously.
  • Page 24 7 minutes while in the Power saving mode, so you need to turn it on again.  When the battery runs out, the power will be turned off. Plug the supplied AC adapter into the AC adapter jack on the bottom of the left side edge for 3 hours before using the unit.

  • Page 25: Technical Specification

    8. Technical Specifications (1) LCD: 4.3 inch wide type TFT-LCD (2) Magnification rate: 4.7X~22.5X (3) Brightness: 4 levels (4) Color modes: 6 color modes (5) External camera (additional item) (6) Battery: Rechargeable lithium polymer (3000mAh, 3.7V) ① Continuous of use: 5 hours ②...
  • Page 26 (2) Warranty does not cover the problem due to the user’s fault. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful...
  • Page 27 compliance could void user’s authority operate the equipment.  ...
