Fig. 1
14
13
0
After the replacement check the seal using a leack detector spray.
5.1.13 Setting reduced capacity power

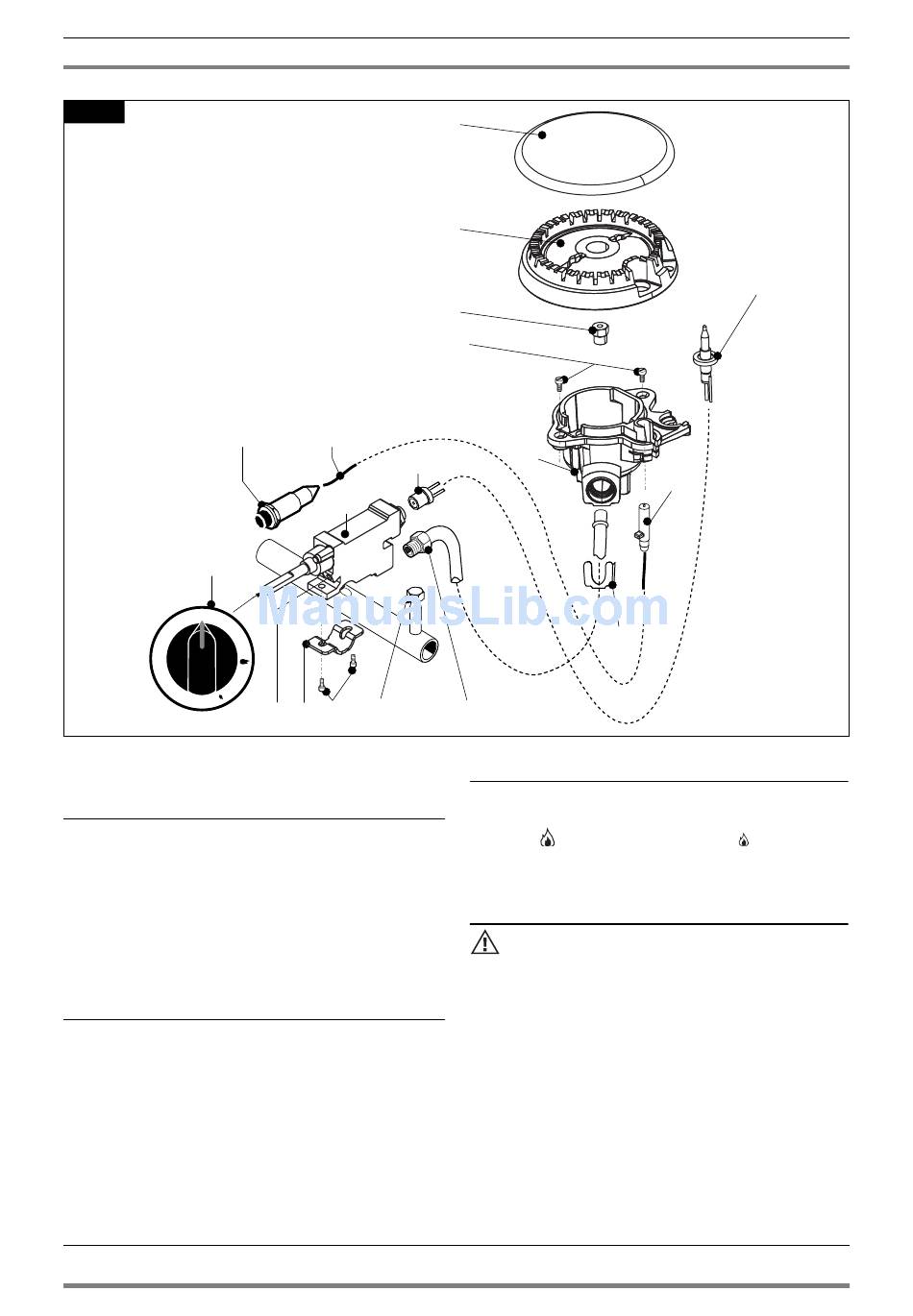

The minimum setting screw (pos. 5 fig. 1) should be adjusted as fol-
lows:
• for operation with LPG it should be screwed all the way down;
• for operation with methane, use the gas flow table to check the
value in l/min with respect to the operating alorific value (meas-
urement in accordance with the volumetric method). Start the
appliance in accordance with the instructions. Turn the knob to
the minimum position and use screw (pos. 5 fig. 1) to adjust the
flow (clockwise = flow reduction; conter-clockwise = flow
increase).
5.1.14 Replacement of burner injector of gas oven GN 1/1
Remove the front/lower unscrew the fixing sight screws. Unscrew the
screw fixing the hanger (pos. 2 fig. 2) of the injector-holder (pos. 3
fig. 2), unscrew the screw (pos. 5 fig. 2) and extract the injector-hol-
der from its housing, then unscrew and replace the injector with one
able for the type of gas, see table 1, install in reverse order. After the
replacement check the seal using a leack detector spray.
0813_GB_42 - GAS KITCHENS WITH PILOT
5 - SET-UP FOR OPERATION
12
16
8
17
5
7
6
10
9 · 16
3
2
1
4
18
9
5.1.15 Setting reduced capacity power oven
Loosen screw (pos. 9 fig. 2) by two or three turns after having remo-
ved the knob and the control panel cover.
Light the burner and keep it lit for at least 10 minutes with the
knob in the
position, then put the knob to
screw (pos. 9 fig. 2) until a reduced but steady, even flame is obtai-
ned (the flame must warm the thermocouple even on low).
5.2 Maintenance
Attention! Before doing any repair or maintenance
work, unplug the appliance.
The following maintenance program should be carried out at least
once a year by qualified personnel with license:
• Check that all the safety and adjustment devices are working
properly;
• Check that the burners are working properly with regard to:
- ignition
- combustion safety;
Check functioning of the appliance as described in paragraph 5.1.6
"Operation control".
If it should be necessary to clean the open flame burners, proceed
as follows:
• Remove the grills, the flame spreaders and the bodies of the
burners;
• Clean the parts with water and detergent and an appropriate
11
15
and tighten
04/2008
