Summary of Contents for MobiApps m200

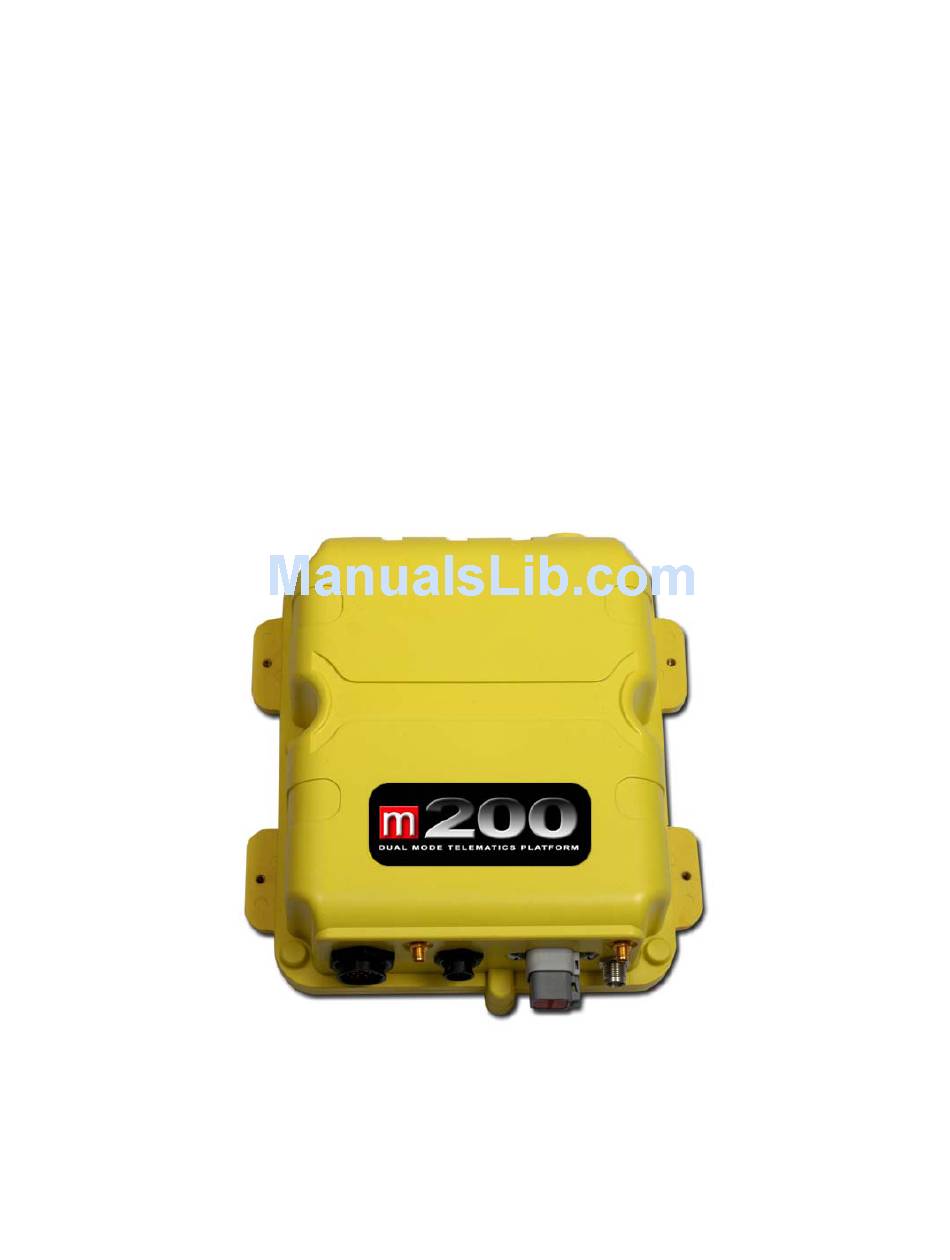

- Page 1 MobiApps m200 Installation Guide May 2009 m200 Installation Guide...
-
Page 2: List Of Equipment
The only part with a finite life is the internal lead battery, with an expected life of 3 years. m200 Placement Rules and Recommendations Care must be taken to ensure that the supplied cable can reach from the m200 to the power supply and the ignition switch (if used). Device... -
Page 3: Power Supply Requirements
Figure 2: m200 Side View Installing the m200 In this section, you will learn how to install the m200 unit and its components. Please read the detailed instructions before beginning the installation. Caution! Do not mount the m200 near a magnetic field, battery chargers, battery isolators, generators or electric motors. - Page 4 Note: The mounting bracket must be installed on a flat surface. Otherwise, if screwed down hard, the mounting bracket can flex, preventing the four fasteners from lining up with the mating holes in the m200. Spacers should be placed below the mounting bracket to prevent flexing. A mounting kit can be ordered from MobiApps.
- Page 5 Caution! The m200 should not be installed in the manner illustrated below with the vent on the bottom. Tip: The m200 may need to be serviced and it should therefore be placed in a location where it is easy to dismount.
- Page 6 6. Run the satellite antenna, GPS antenna and GSM antenna cables to the m200. 7. Connect the satellite, GPS and GSM antennas to the m200. Take careful note of the reverse polarity SMA connecter used for the GSM antenna.
