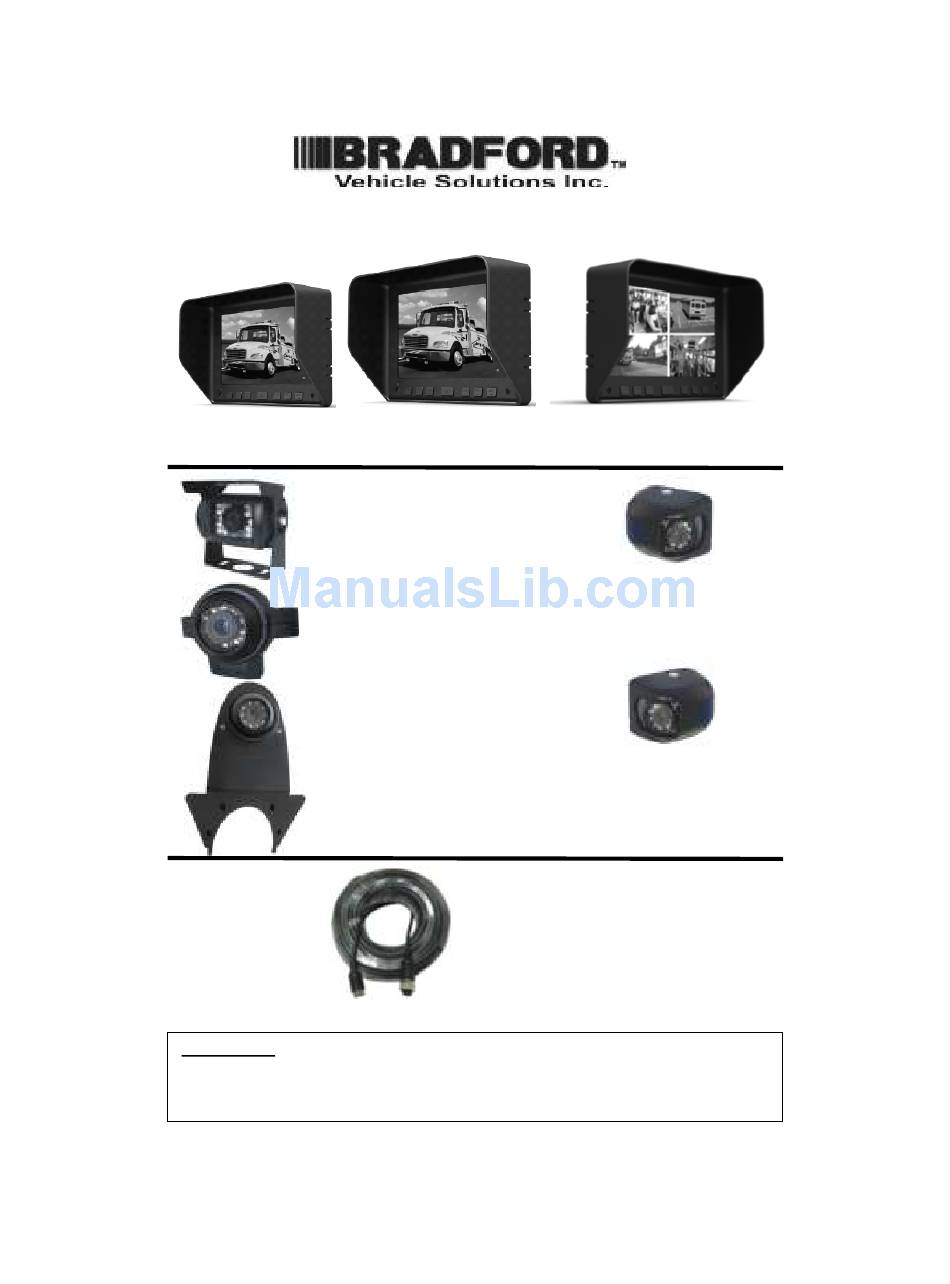

Vehicle Video Monitoring System
M02
5.6" Monitor
18-LED High-Illumination
Adjustable Camera w/Sun Visor
Front Facing Ball Camera
Rear Facing Overhead Shark
Mount Ball Camera
Please Note: These instructions are provided as a general guideline only.
vehicles may require special mounting, wiring, and/or weather-sealing. This is the
sole responsibility of the installer.
responsibility for the integrity of the installation for this or any of its products.
M03
7" Monitor
C01
C07
C14
Passenger Side/Right Camera
W16 - 16' Cable
W49 - 49' Cable
W65 - 65' Cable
Bradford Vehicle Solutions, Inc. assumes no
M04
7" Quad Monitor
C8L
Driver Side/Left Camera
C8R
Some
PLIT490 REV. -
3/26/13
Advertisement
Table of Contents
Summary of Contents for Bradford Vehicle Video Monitoring System
- Page 1 Some vehicles may require special mounting, wiring, and/or weather-sealing. This is the sole responsibility of the installer. Bradford Vehicle Solutions, Inc. assumes no responsibility for the integrity of the installation for this or any of its products. PLIT490 REV. -...
-
Page 2: Specifications
Specifications MONITORS Operating Voltage 12-24VDC • Operating Temperature –5⁰F (-20⁰C) to +160⁰F (70⁰C) • Storage Temperature –20⁰F (-30⁰C) to +175⁰F (80⁰C) • Aspect Ratio: 16:9 • NTSC / PAL Autoswitching • Operation: Remote Control and OSD Menu • Built-in Speaker •... -
Page 3: Monitor Installation
Monitor Installation The monitor is designed for interior use only and must be mounted in a dry location. • Install the monitor on a surface that will support a minimum of 9lbs. • Choose a location a minimum of 16” from any speakers to reduce the chance of screen •... -
Page 4: Camera Installation
Camera Installation C07 Ball Camera 1. Use the enclosed Allen wrench to remove the two screws securing the ring around the outside of the ball camera. 2. Determine whether you wish to use the bolts, washers, and nuts or the sheet metal screws to mount your light. - Page 5 (Camera Installation CONT’D) C14 Overhead Shark Mount Camera 1. Peel the backing off of the 2. Install the camera to the enclosed gasket and affix the mounting surface using the gasket to the base of the camera. four self-tapping screws included (or other appropriate fasteners if applicable).
- Page 6 Connections 1. Using the harness enclosed with the monitor, connect one or more cameras to the monitor. 2. Connect the Power (red) and ground (black) wires as shown in the diagram below. 3. Connect the corresponding Trigger Wire for each camera to the desired +12VDC source (usually the reverse lights).
- Page 7 Operation DIM This is a photocell that is used to sense the ambient light and auto dim the screen in low light conditions. CAM Switches which camera/input is shown on the monitor. M/N Mirrors (flips) the image When the DIMMER is set for Manual mode (see below) this button is used to switch between Day and Night mode.
- Page 8 Due to continuous product improvements, we must reserve the right to change any specifications and information, contained in this manual at any time without notice. Bradford Vehicle Solutions, Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
