Meyer M-1A Operating Instructions

M-1A
Control
Electronics
Unit
The Meyer Sound M-1A is
an active signal processor
designed for use with Meyer
Sound UPA-1C and UM-1C
loudspeakers. lt is a single
channel device, and it
occupies a single 1 ⁄ -inch
3
4
rack space. The functions
of the M-1A are:
■ Active crossover for bi-
amplification
■ Loudspeaker frequency
response and phase
response alignment
■ SpeakerSense™ driver
protection
Connections
Operating Instructions
Input
Input
Lo Channel
– +
Red
Loudspeaker Cable

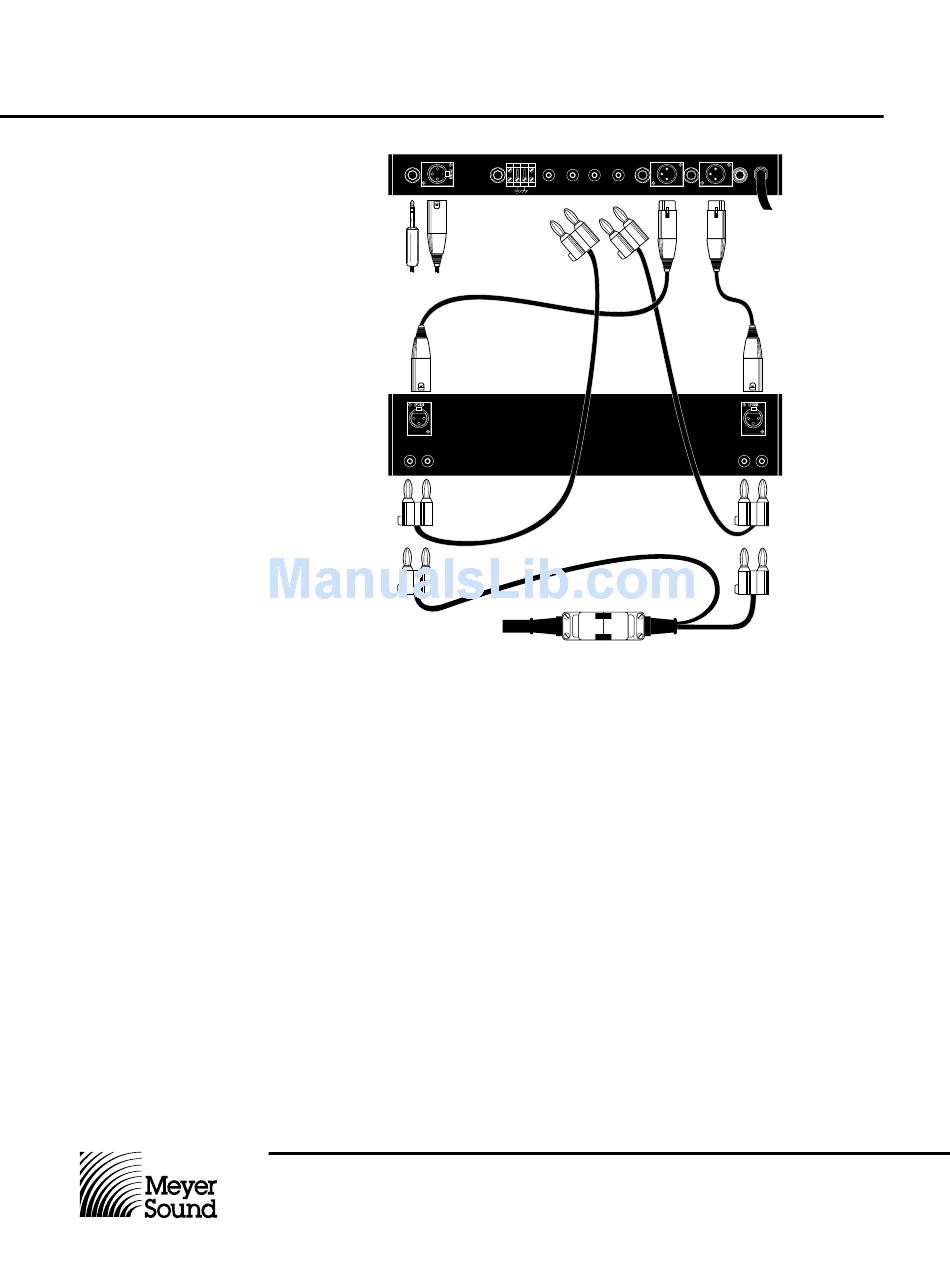

The M-1A operates at line level and is de-
signed to be the last component in the chain
before the power amplifier. Connections to
the M-1A should be made according to the
diagram above.
1. Signal inputs to the M-1A may be either
balanced or unbalanced. For best sig-
nal-to-noise ratio, the average input level
should be at least 1 volt RMS. The M-1A
will accept peak inputs of up to +26 dBv
balanced, or +20 dBv unbalanced.
2. The Sub input is used only when the M-
1A is operated in conjunction with Meyer
Sound B-2, B-2A or B-2AEX subwoofer
Controllers.
3. SpeakerSense™ connections are made
from the output of the power amplifier
back to the M-1A Sense inputs. The Hi
output of the power amplifier must be
connected to the Hi Sense input, and the
Lo output of the power amplifier to the Lo
Sense input in order for the SpeakerSense
driver protection circuitry to operate prop-
erly.
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
Sub Lo Hi
Lo
Sense
In Out
Red Black
Sense Sense
Cable Cable
Amplifier
1 Meter
Pigtail
Adapter
Note. Polarity of these connections does not
matter.
4. Signal outputs from the M-1A may be
either balanced or unbalanced. The max-
imum output levels before clipping are
+26 dBv balanced, +20 dBv unbalanced.
5. Connections between the power amplifier
outputs and the Meyer Sound loudspeaker
used with the M-1A should be made ac-
cording to the instructions for the particular
loudspeaker (UPA-1C or UM-1C). These
connections must be verified for correct
polarity, and correct channel assignment
(Hi to Hi, Lo to Lo). Color codes given
in the diagram are those used for Meyer
Sound cables and adapters.
Note. The grounding strap on the M-1A rear
panel connects circuit ground (signal com-
mon) to earth ground (U-ground). Lifting this
strap from the terminal block disconnects
circuit ground from earth ground (the chas-
sis remains connected to U-ground). If hum
problems occur, this feature may be used to
control ground loops in the system.
Hi
Out
1/4 A
Hi Channel
– +
Black
