External Switching - G-Lab MAC-4.4 User Manual

right or left. The arrow-head indicates set channel (A, B, C, D, E, F letters correspond
with 10, 11, 12, 13, 14, 15 channels' numbers and "0" digit indicates channel No. 16).
Connecting to amp with EXTERNAL SWITCHING inputs
In case of connecting to the amps
equipped with
connectors JACK MONO type it is needed to
use for every connector the double wire cable
with JACK MONO pin. It is recommended to
use the G LAB EXT SWT JACK MONO cables
(product code 00852). In case of making the
cables by yourself it is recommended to use
JACK plugs with the insulated (e.g. plastic)
cage.

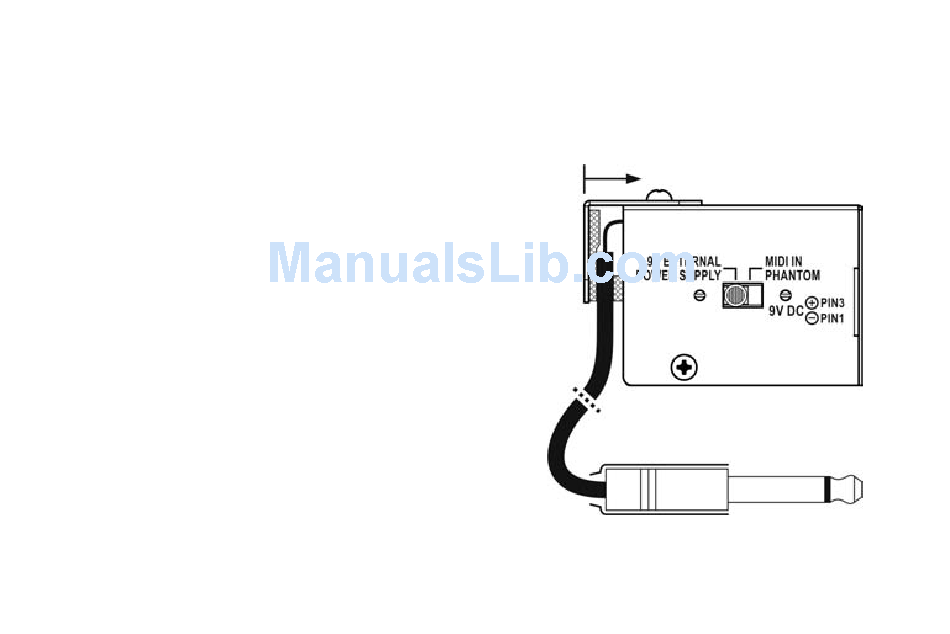

To connect the cables remove the fixing cover. After connecting them put it back,
press down and tight up (see the picture below).
4
EXTERNAL SWITCHING
