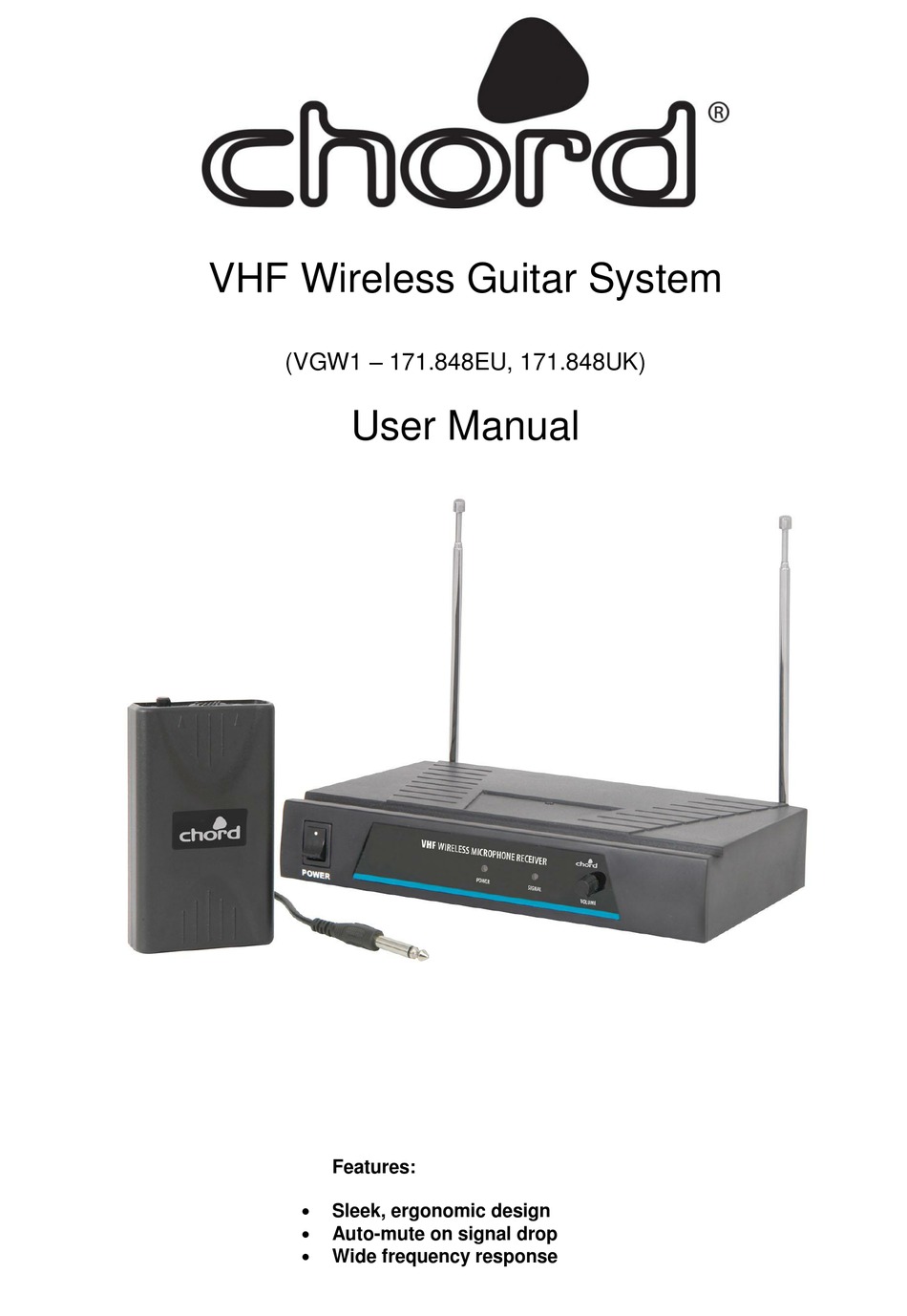

- Page 1 VHF Wireless Guitar System (VGW1 – 171.848EU, 171.848UK) User Manual Features: Sleek, ergonomic design Auto-mute on signal drop Wide frequency response...
- Page 2 Introduction: Thank you for choosing the Chord VHF-series wireless system. This professional wireless set provides an instrument VHF radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.
- Page 3 Receiver Rear Panel 1. Antennae 2. Power adapter input 3. Unbalanced 6.3mm jack output 4. Balanced XLR output Receiver Front Panel 1. Power ON/OFF switch 2. Channel A volume control 3. Channel A indicator LED 4. Power indicator LED 5. Channel B indicator LED 6.
-
Page 4: Troubleshooting
Turn up GAIN ADJUST on beltpack transmitter Turn up VOLUME on receiver Microphone output is very low Increase Gain on amplifier Turn up guitar volume controls Check transmitter battery Note: for further troubleshooting, refer equipment to qualified service personnel for testing © Chord 2011...
