Elcon LT2MSKU-T Operating Instructions Manual

Digital transmission system for 2 mbps signals via copper cable

Advertisement

Quick Links

LT2MSKU-T
Digital Transmission System
for 2 Mbps signals via copper cable
Operating instructions
Art. no. 101388-1
© ELCON Systemtechnik GmbH 2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the LT2MSKU-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Elcon LT2MSKU-T

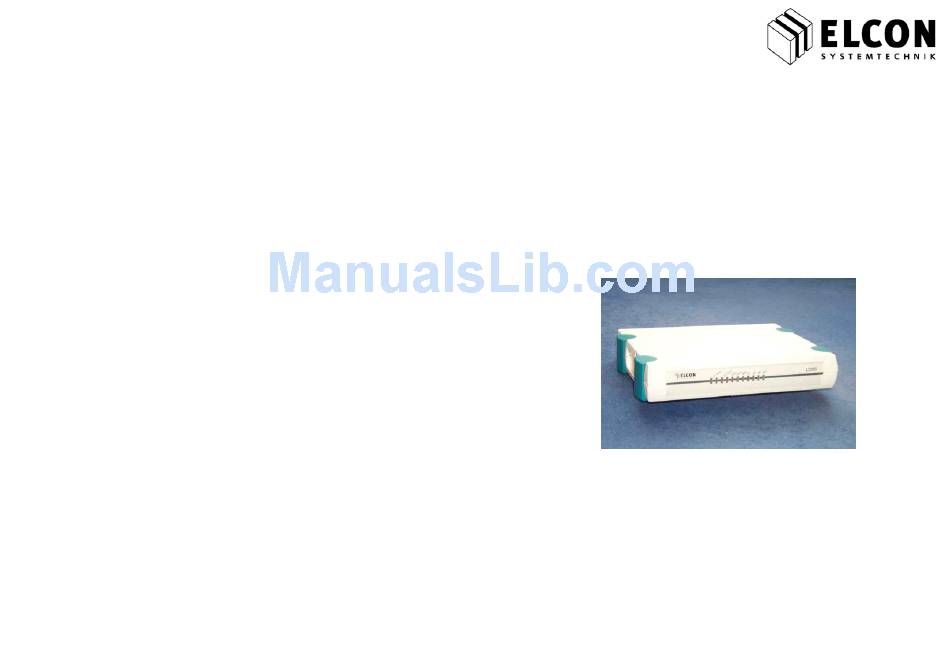

  • Page 1 LT2MSKU-T Digital Transmission System for 2 Mbps signals via copper cable Operating instructions Art. no. 101388-1 © ELCON Systemtechnik GmbH 2008...
  • Page 2: Safety Precautions

    LT2MSKU-T LT2MSKU-T Miscellaneous Please keep this manual always accessible at a safe place! When putting the device into operation, pay attention to the safety precautions (→ chapter 11). We reserve the right to apply modifications. This is contributed to the technical progress and aimed at the permanent improvement of the product.
  • Page 3: Table Of Contents

    Remote power supply module 112 V ± 3 V / 59 mA (nominal values) Operating elements Remote power supply module FSP2M Mounting of remote power supply module Installation / Mounting of LT2MSKU-T Technical data Miscellaneous Safety precautions Version: 2008/05/23 Version: 2008/05/23...
  • Page 4: Short Description

    2048 kbps unstructured Line code HDB3 (AMI) The line terminating unit in desktop version LT2MSKU-T can be used, among others, as 120 Ω Impedance network termination for unstructured fixed connections (leased lines). It matches the V2M...
  • Page 5 2 Mbps signal and no CRC4 application. The If the LT2MSKU-T is used as desktop device, it should be placed on a plain and dry table received digital signals at the V2M interface (E1) are only checked with regard to existence, surface.
  • Page 6 / continued Press upper part and bottom part together (4 × audible snap-in). The LT2MSKU-T is powered from an optionally available power-supply module (SNG2M) or through a DC power supply at a voltage ranging from -32 V ... -75 V.
  • Page 7: Interfaces

    Mounting of remote power supply module Interfaces / continued Attach upper part on the film (hold it in inclined position) and then place it All interfaces are situated on the rear side of the LT2MSKU-T. onto the housing bottom part. UB power supply...
  • Page 8 LT2MSKU-T LT2MSKU-T Interfaces Mounting of remote power supply module / continued The interfaces have the following functions and pin assignments: Assemble the device as follows: - Insert labelled film strip into the bottom part. DSL (UKS) interface (RJ 45) - Make sure that the LED domes are correctly placed.
  • Page 9 LT2MSKU-T LT2MSKU-T Mounting of remote power supply module Interfaces / continued / continued Warning: If the UKS interface is connected through the Western jack (RJ45 jack, figure 3), make sure that the 6-pin spring terminal has been attached to the Wago Cage-Clamp connector of the...
  • Page 10 For local power supply, a tripolar power pack should be used. If, in case of local power Figure 15: FSP module as separate sub-unit supply, the LT2MSKU-T is powered by a power pack other than the specified one (e.g. older 2-pole types without FPE / earthing conductor), the LT2MSKU-T needs additional grounding.
  • Page 11 (strip) for contacting. For data transfer, only the transmission path (TXD), the receive path (RXD) and signal ground are used. Control and signalling lines are neither served nor ana- lysed by the LT2MSKU-T. The standard transfer rate is 56 kbps. The NRZ line code is used during transmission.
  • Page 12: Block Diagram

    Unlocking as described under 3. SHDSL Line Framer Framer & & interface SHDSL G.703 Transceiver Transceiver SHDSL Line Framer Framer interface & & SHDSL G.703 Transceiver Transceiver Figure 8: Block diagram LT2MSKU-T Figure 13: Unlocking the housing Version: 2008/05/23 Version: 2008/05/23...
  • Page 13: Display Elements

    The optionally available remote power supply module is linked with the basic sub-unit by The front panel of the LT2MSKU-T is equipped with 11 LEDs, which signal the different means of DIN connectors. Further, the circuit board has switches for the device configura- operating states.
  • Page 14: Operating Elements

    The FSP2M has been designed as plug-in unit and is connected to the basis unit of the seen from the schematic view of the LT2MSKU-T (fig- LT2MSKU-T with help of a DIN connector (see „Mounting of remote power supply mod- ure 9). Table 2 shows the function of the switches. To ule).
