Custom Star Panel Installation Guide

StarCeiling123's Custom Star Panel Installation Guide explains in detail how to create an affordable ($350 –

400) custom Fiber Optic Star Ceiling. The directions are geared for a specific size (4 x 8) but you can easily

modify the plans to meet the needs of your project. Once you get started you will find working with fiber to

be relatively easy and you will be well on your way to becoming a pro!!!

Use COUPON CODE

BUILDASTARCEILING

to receive

$10.00

off any order over $50.00 from StarCeiling123

You can find all the necessary fiber optic supplies and much more on our web site -

www.starceiling123.com

Please email

chris@starceiling123.com

or call (866) 620-5176 with any questions you may have. We are

happy to help you get started and have the best prices around.

Table of Contents

Need help?

Do you have a question about the Custom Star Panel and is the answer not in the manual?

Questions and answers

Summary of Contents for StarCeiling123 Custom Star Panel

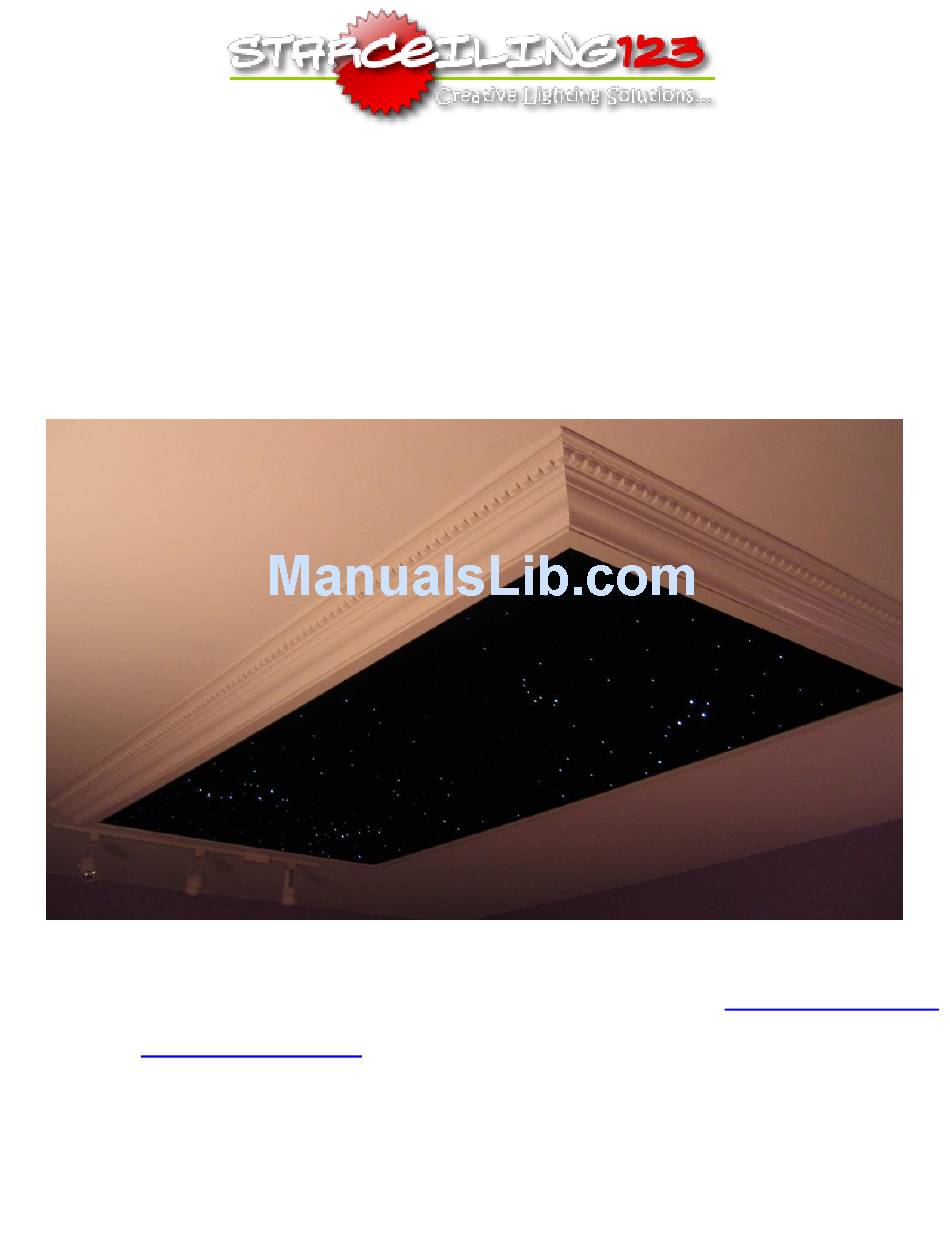

Page 1 Custom Star Panel Installation Guide StarCeiling123’s Custom Star Panel Installation Guide explains in detail how to create an affordable ($350 – 400) custom Fiber Optic Star Ceiling. The directions are geared for a specific size (4 x 8) but you can easily modify the plans to meet the needs of your project.
Page 2 Material List 1. Illuminator (light source) – Illuminators come in two main types, LED and Halogen. LED runs a little cooler and is better suited for enclosed areas. Halogen illuminators have bulbs that can be changed and the ones we sell can produce white or colored light.
Page 3 Material List (cont’d) 8. Metal brackets, screws, and nails a. T & L brackets – 2 T’s and 4 L’s. Used to connect the pieces of the wood strengthening the rigid insulation. Get enough wood screws to secure them. b. L brackets – 10 – Used to secure the wood frame to the ceiling. c.
Page 4 Installation (cont’d) 2. Create the wood border using #4 on the material list around the perimeter and down the middle of the insulation board. Cut the wood to the correct lengths and connect the wood pieces with the L and T brackets. Secure the rigid insulation to the newly created wood border from the front/finished side by screwing through the insulation and into the wood border.
Page 5 Installation (cont’d) 3. Cover the rigid insulation with the black velvet. Do this by pulling it taunt and wrapping it around the backside and securing it to the wood with staples. Work your way around securing it with staples (the more the better) and making sure to stretch out the wrinkles.
Page 6 Installation (cont’d) 5. Build the wood frame using #6a on the material list. Create a rectangle box with the inside dimensions of 84 ½ X 40 ½ (86 X 42 outside dimension if you use the recommended ¾” thick wood). Make sure you measure correctly or you’ll find yourself doing it again.
Page 7 11. Paint – finish it all with a couple coats of trim paint and you are ready to enjoy your new fiber optic star ceiling. Disclaimer of Liability. The reader of this document assumes all responsibility and risk. Under no circumstances shall StarCeiling123 LLC be liable for any DIRECT,...
