SolarTorrent 1000W Grid Tie Power Inverter User Manual

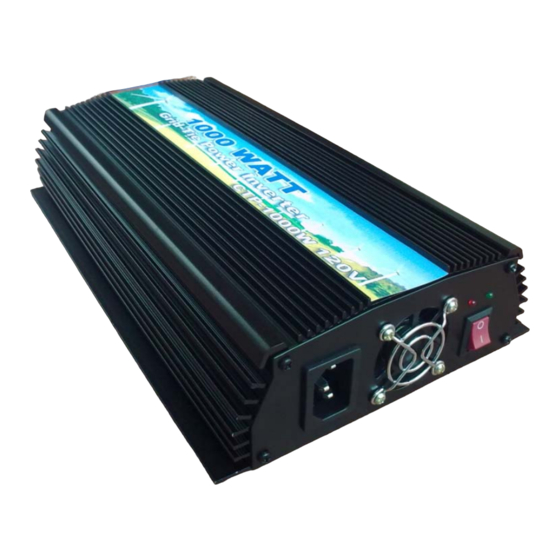

1000W Grid Tie Power Inverter
1. Description：
Directly connected to solar panel design（Without battery）
Angle with high precision auto-detect if it was held 0 Total
Step directly modulated high-frequency phase
Pure sine wave output
Solar luminosity power automatically adapt
Automatic power locking
Maximum Power Point Tracking(MPPT)
Automatically adapt to different load power factor
Constant current, constant-power design
Power grid automatically shut down when the output is faulty
Current limit protection
Schmitt trigger SPWM Generator(Output Pure sine wave)
Straight-line with the design
Multiple stack(Use of multiple machines in parallel)
Design of high frequency and high conversion rate

2. User Guide:

Installation & Connection
1.1 Red Terminal: to connect positive pole of DC; Black Terminal: to connect negative pole of DC.
AC Socket: to connect grid.
Switch: Power Switch, after the proper connecting, turn on, Inverter start working.
DC Input limits:
Operating Voltage range: 10.5V to 28V
Maximum input Voltage: 28V
Solar Panel: 30W minimum, only use PV panels with maximum power voltage at 17.5V.
Can ONLY connect panels in parallel. DO NOT connect them in series!
Wind Turbine: Rated output voltage 24VDC, Maximum voltage 28VDC
AC Output:
Grid Connection:
220V AC version: 170V-250V, 50Hz
110V AC version: 90V-140V, 60Hz
Island Protection: Automatically disconnect when the grid is tripped
Maximum quantity of Pure Sine-wave Inverters allowed on a main circuit: No limited
LED Indicators:
Red LED on: Input DC voltage is too high or low (less than 10.5V or more than 28V)
Red LED on: Over Heat protection once over 70℃, automatic restart after cooling
down for about 2-10 minutes.
Red LED on: Grid blackout fault
Green LED Flashing: Output power in the state of regulation.
Green LED on continuously: Inverter works normally, constantly max. output power.
