Summary of Contents for Varde Vision
-

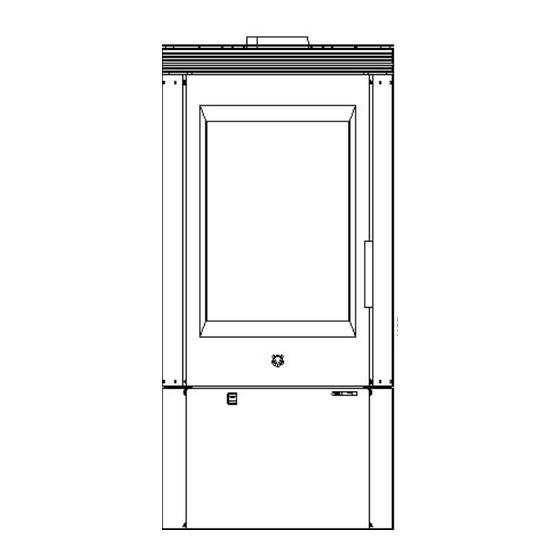

Page 1: Technical Specifications Vision
Varde Vision Installation— and User guide Revision 3... -
Page 2: Table Of Contents
Congratulation on purchasing your new stove Varde Ovne A/S is a Danish company specializing in functional, environmentally friendly and designed quality stoves. Index Welcome and index Page 2 Technical specifications Vision 11 Page 3 Technical specifications Vision 1 Page 4... -
Page 3: Technical Specifications Vision
Technical Specifications Vision Varde Vision 11 Hight (mm) 1171 Wide (mm) Depth (mm) Weight (kg) Effect 5,3-6W Nominal Output 6 Kw Heated area 45-120m2 Efficiency 79 % Flue gas data: 5,8g/sek., 265°C 20°C, 12 pa. Combustion chamber: (H x W x D): 380 x 352 x 215mm Flue outlet Ø... - Page 4 Technical Specifications Varde Vision Varde Vision 1 Hight (mm) 1171 Wide (mm) Depth (mm) Weight (kg) Effect 5,3-6 W Nominal Output 6 kW Heated area 45-120m2 Efficiency 79 % Flue gas data: 5,8g/sek., 265°C , 20°C, 12 pa. Combustion chamber: (H x W x D): 440 x 360 x 242 mm Flue outlet Ø...
-
Page 5: Regulations And Approval
Important! Regulations Before lighting up your Varde Stove for the All local regulations as well as National and first time, we recommend that you read these European, should be adhered to when instal- instructions carefully and contact your local stove ling your stove. -
Page 6: Flooring And Distance
With Steel Weight Soapstone Varde Vision 110 kg 120 kg Installation distance: If walls are non-inflammable, the stove can be placed closer to them. However, we recommend a minimum distance of 5-10 cm, to allow for cleaning behind the stove. The cleanout gate must be accessible. -
Page 7: Chimney
265°C and at a room temperature of 20 °C. Varde stoves are always fitted with a smoke plate which redirects smoke to make its way to the chimney as effectively as possible. This ensures that the heat from the smoke is emitted inside your home rather than outside it. -
Page 8: Air Supply
Continual fresh air Overheating A continual supply of fresh air is required in the Occors if too much wood is placed in the room in wich the stove is situated. This can be stove or if the combustion receives too achieved by installing 1-2 vents, whilst also ensur- much air. -
Page 9: Operation
Operation the handle inn and out . Ignition/ Lighting your Normaly operation Varde Ovne stove of the Stove. The handle should Open the Ignition Air by be in the inner posi- turning the handle 1 down. tion. The grate must be open. -
Page 10: How To Light And Stoke A Fire
How to light and stoke a fire The first time you light up the stove, the enamel will temper and give off some smoke and a slightly burnt smell. We recommend that you leave doors and windows open, as airing the room will make the smell disappear. -
Page 11: List Of Accessories
Operation Shake grate Vermiculit plates Ash tray Ignition Air Combustion Air Throttel for Shake grate Cast iron Door Top Steel cover... -
Page 12: Vermiculite
Vermiculite is a very porous material and should be handled with care. When refilling the stove, stoke the wood carefully and use a glove. Only use original parts from Varde Ovne A/S Vermiculit set, Item no.: 1501506... -
Page 13: How To Choose The Wood
What to burn. This Varde Stove is tested and approved for the burning of wood. Only dry wood with a moisture content of maximum 20 percent and the size to fit into the combustion chamber should be used. -
Page 14: Maintenance
Also, remember to lubricate the door hinges as required. Glass pane The glass pane should be cleaned using Varde Glas Cleaner, which is available at all DIY centres selling Varde Ovne stoves. Empty the Ash pan regularly. It can be emptied into your dustbin, as long as you make sure it does not contain any hot embers. -
Page 15: Troubleshooting
Troubleshooting. Smoke enters the room • Not enough draught in the chimney. • Inspect the flue pipe or the chimney for blockage. • Make sure the height of the chimney is correct. The glass or the chimney soots up • The wood is too moist. •... -
Page 16: Spare Parts
Spare Parts If Spare parts at any time should be needed, please chech the list below. Vermiculit Set, Item no.: 1501506 Glas, Item no.: 1501503 Locking system, Item no.: 1501565 Sealings—Door , Item no.: 10014+10008 Shake Grate, Item no.: 65 Glass spring with screws, Item no.: 10024... -
Page 17: Fresh Air Supply
Continual fresh air. A contiual supply of fresh air is reguired in the room in witch the stove is situated. This can be achived by installing 1 or 2 vents, whilst also ensuring that these can not be blocked. Combustion air supply (extra) When a stove is installed in a room, the requirements to air supply increase. -
Page 19: Warranty
Warranty All Varde stoves go through a close quality inspection, and we take pride in always delivering products of a consistent quality. This being so, manufacturing faults may still occur, and on these we offer a 5 year warranty. The warranty does not include: ·... - Page 20 Soldalen 12, 7100 Vejle, Danmark, Tel. +45 7482 0003. vardeovne.dk...
