- Page 1 English User manual αlpha remote Electric panel radiators Doc.Code: INSAHDE001-04/2014...
-
Page 2: Table Of Contents
- Instructions prior to installation ........………………………………………………….. - After installation.............……………………………………………………… - Safe operation............…………………………………………………… - Mounting location………………………………………………………………………………………………………. Wall mounting the Alpha Heater.……………………………………………………………… Remote thermostatic controller Use of wall-mounted or table stand (optional) and battery installation…………………………. Basic settings of the remote control ..………………………………………………………... -
Page 3: Your New Α Α Α Α Lpha Electric Panel Radiator
Your new α α α α lpha electric panel radiators Thank you for purchasing the "αlpha" Panel Heater, which is a modern and high quality device. Please check carefully the heater once you have unpacked the unit, our production facility strives to pack and ship for the ultimate in protection. -
Page 4: Delivery
Check immediately on receipt of the unit the contents of the package. The following items must be included: • Complete electric Alpha panel radiator with wall mounting bracket, all in the correct colour ordered. • Remote control (if ordered) in a separate box, embedded in a foam covering for protection. -
Page 5: After Installation
After installation Any faults that may develop in the future must always be repaired by a certified professional otherwise there is a risk of possible serious consequences. To ensure quality and safe operation, it is advised that manufacturer recommended parts are always fitted. -
Page 6: Wall Mounting The Alpha Heater

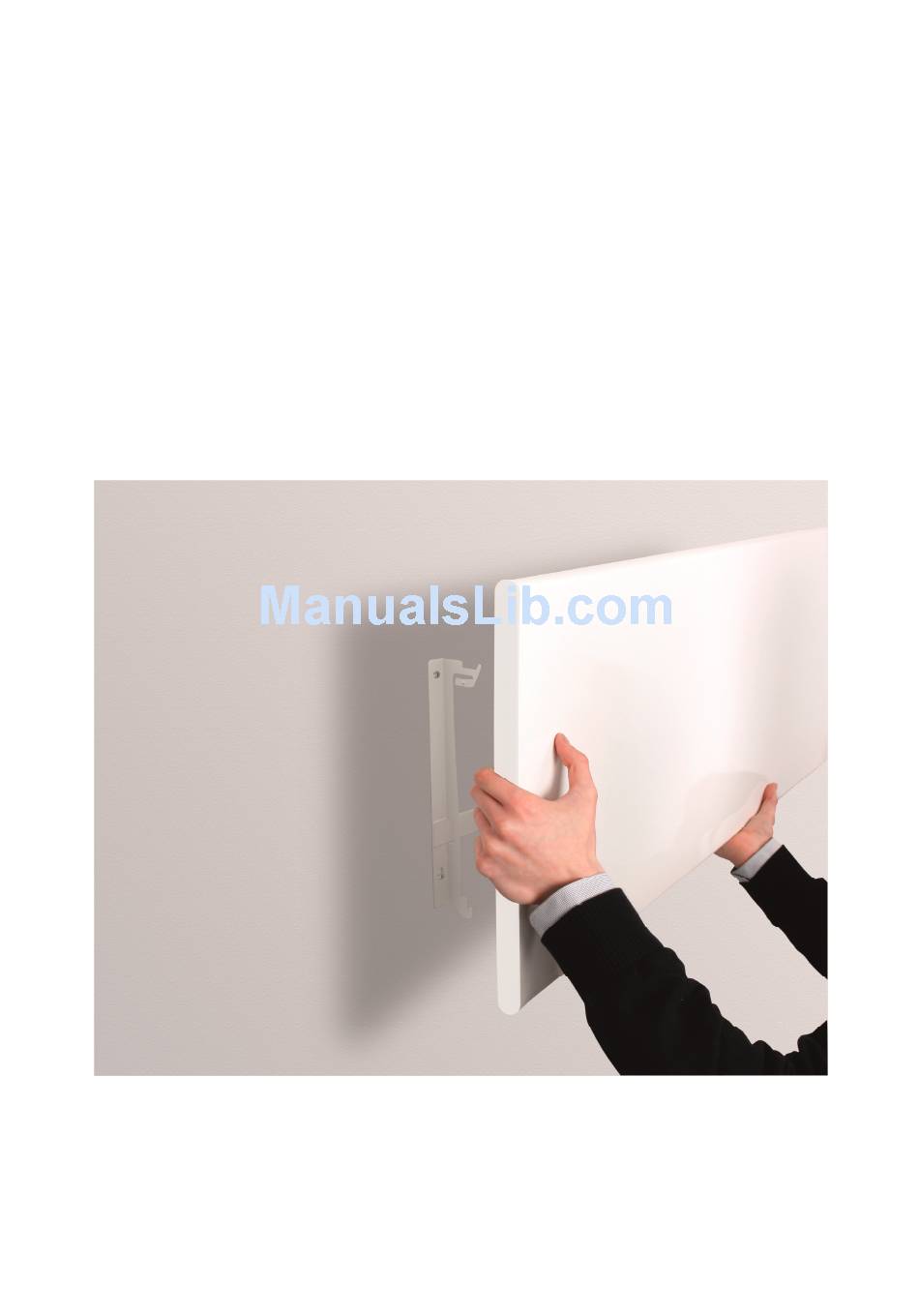

Wall mounting the device The appliance must not be connected to the electricity whilst fitting to the wall brackets. Place the heater, with the front panel on the ground ensuring the surface you are placing it on will not damage the heaters finish. If in doubt place a soft cloth down first. To release the wall bracket, press the top part of the bracket on both sides at the same time the metal tabs slightly to the left (Fig. -
Page 7: Remote Thermostatic Controller Use Of Wall-Mounted Or Table Stand (Optional) And Battery Installation
Preparing the Remote Control (mounting, installation and battery replacement) Wall mounting Table stand for remote control (Optional Accessory) -
Page 8: Basic Settings Of The Remote Control
Inserting the batteries Procedure prior to first use or when changing batteries • Remove the two screws at the bottom Battery Compartment Open short side of the remote control • Lift the display face carefully • • 2 alkaline batteries 1.5 V IEC LR6 (AA) •... -
Page 9: Default Settings
-For slow heating use the SL selection. In this mode the heater will react immediately when the desired temperature is 3 ° C above/below the set room temperature. 6. This feature is not available on the alpha. 7. Display for times Choice between 12 and 24 hours mode 8. -
Page 10: Pairing Between Transmitter (Remote Control) And Heater Receiver
9. Two options for switching times per day -Choose P4: You have 4 switching times per day of the program . -Select P6: You have 6 daily times. The factory setting is P6. 10. The backlight of the display has 3 settings 0 = No backlight 5 = backlight for 5 seconds 10 = backlight for 10 seconds. -
Page 11: Adjustment Operation With Remote Control
Receiver power button red LED (A): A short press will turn the red LED on/off indicating supply status. Load staus green LED (B): The green LED will illuminate when the heater is calling for power. Green LED (B) will also flash slowly to indicate when the heater is in an over-temperature protection mode. -
Page 12: Adjustment For Operating Multiple Devices With Multiple Remote Controls
When operating multiple devices with multiple remote controls When using more than one remote control you will need to give each control specific assignments to avoid any malfunctions to individual units. This is done by assigning corresponding codes by remote control. Please proceed as follows: Open the casing of the remote control by removing the two small screws. -
Page 13: Temperature Setting Without Time Control
Setting the heater by remote control after pairing is complete For an explanation to the symbols seen on the screen of the remote control, please refer the end of this manual. Temperature only setting without time control 1 Turn on the remote control at the top left hand corner of the screen. 2 Increase the temperature setting in the top right hand corner of the screen to your desired preference. -
Page 14: Time-Controlled Temperature Settings
If, however, you would like to change any individual, or indeed all preset values, please follow the instruction below. • Firstly decide if you would like to use the factory settings with 3 x on/off each day or your own bespoke settings with 2 x on/off each day. To change the factory default see the configuration menu on page 8 of this instruction. -
Page 15: Holiday Mode And Manual Override
Holiday Mode. • With the screen turned on push and hold the P-key (3) for 3 seconds. • A small suitcase will appear in the top of the screen indicating the holiday mode is active. • Push the clock button (2) to increase the number of days required up to a maximum of 99 days. -
Page 16: Blank Program Input Sheet
Finally, check your program inputs Before you can run a program with newly entered data, you should be sure that everything has been entered, as it was planned. Always check before executing the entries. Press the P-key (3). It will now show the set input information for each on/off and day If the entry is correct, press the P button (3). -
Page 17: Control Screen Schematic
αlpha Schematic drawing for remote (9 ) ( 1 0 ) ( 8 ) (1 8 ) ( 1 1 ) ( 1 7 ) ( 1 2 ) (1 6 ) (1 3 ) (1 4 ) (1 5 ) Symbols in the display αlpha remote... -
Page 18: More Products From Sol*Aire
Other Sol*Aire products and accessories for electric heating Electric cartridge heaters without control Electric cartridge heaters with controls Valves and fittings for radiators and heated towel rails Electric and central heated towel rails... -
Page 19: Α Α Α Α Lpha Technical Data Sheet
For further αlpha remote accessories, components and other devices from the field of electric heating also consult our website or contact directly with us. We are always happy to help. Technical Data 230V / 50 Hz Voltage Insulation class: Protection class: IP 20 White (RAL9010) - Page 20 αlpha remote Electric panel radiators Sol*Aire Heating Products Limited New Row Eppleby North Yorkshire DL11 7AW Tel: 01325 717899 Fax: 01325 718065 email info@solairehp.co.uk Web: www.solairehp.co.uk...
