Summary of Contents for Fishsens SondeCAM mini

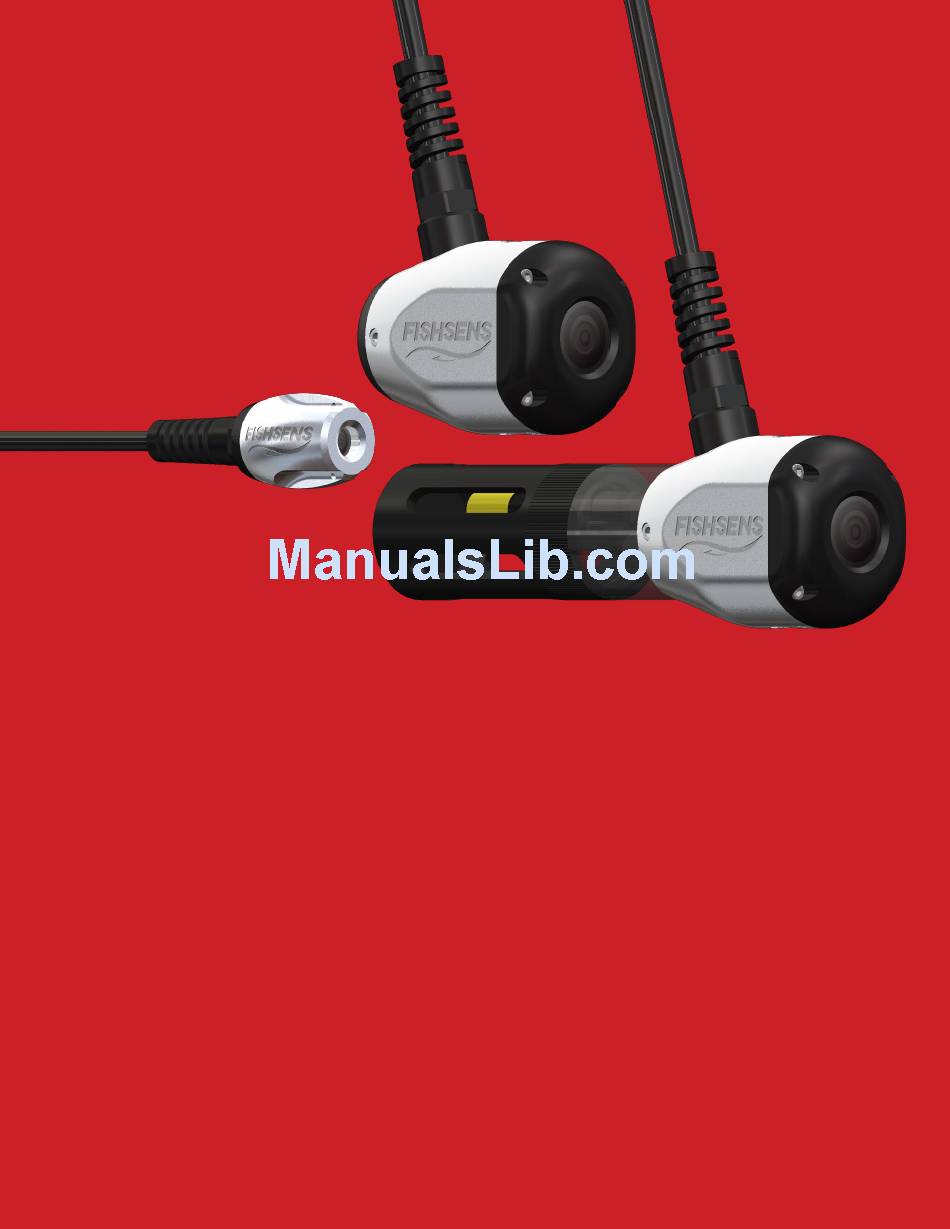

- Page 1 SondeCAM User Guide...
-
Page 2: Table Of Contents
Table of Contents Overview ............................1 SondeCAM mini ........................... 1 SondeCAM ........................... 1 SondeCAM WQ ..........................1 Boat Installation ..........................2 Generic Configuration ......................... 2 SondeCAM WQ Lowrance® Configuration .................. 3 Using SondeCAM Accessories ......................4 SondeCAM DVR ........................... 4 Topside Rail Mount Kit ........................ - Page 3 Limitation of Warranty ......................17 Warning ............................. 17 Authorized U.S. Service Centers ....................17 Mechanical Drawings and Specifications ..................18 SondeCAM mini ......................... 18 SondeCAM ..........................19 SondeCAM WQ .......................... 20 Appendix ............................22 SondeCAM WQ Direct Communication ..................22 Revision History .........................
- Page 4 PAGE INTENTIONALLY LEFT BLANK 2091 Exchange Court Fairborn, Ohio 54324 937-426-2703 www.FishSens.com...
-
Page 5: Overview
Overview SondeCAM mini Overview SondeCAM mini SondeCAM mini is a small profile and affordable option for underwater video with direct connection to on-board electronics. SondeCAM SondeCAM is the original FishSens underwater video camera with direct connection to on-board electronics. SondeCAM WQ... -
Page 6: Boat Installation
Boat Installation Generic Configuration Boat Installation Generic Configuration 1 SondeCAM & mini 5.5 X 2.1 mm Female Barrel Connector Fishfinder 6 ft. Power Cable (Not included) Fuse, Glass, 1A, 250V, 5x20 mm, Slow-Blow 12V Battery Diode, Schottky, 1A, 20V (Not included) 4 Power &... -
Page 7: Sondecam Wq Lowrance® Configuration
Lowrance® Video Cable UW6P Connector Lowrance® Power Cable RCA Female FishSens Lowrance® Adapter RCA Male Connect the SondeCAM system as show above. Power the Lowrance® and select Video from the main menu. For SondeCAM WQ applications, seeSondeCAM WQ Fishfinder/Chartplotter Setup:... -
Page 8: Using Sondecam Accessories
Using SondeCAM Accessories SondeCAM DVR Using SondeCAM Accessories SondeCAM DVR Connecting the DVR 1. Unscrew the SD card port plug. 2. Insert a SD Card and reinstall the plug. 3. Connect the SondeCAM to the DVR receptacle. 4. Connect the DVR plug to the fishfinder adapter. Record Button ... - Page 9 Using SondeCAM Accessories SondeCAM DVR DVR Menu To enter the menu click MENU. Resolution Choose the video resolution (influences video output quality). D1: 720x480 VGA: 640x480 QVGA: 320x240 Enable/Disable Date Stamp Choose whether the date and time will be shown at the bottom of the recorded video.
-
Page 10: Topside Rail Mount Kit
Using SondeCAM Accessories Topside Rail Mount Kit Topside Rail Mount Kit 1. Attach the RAM ball to the camera with the supplied lock washer. 2. Mount the u-bolt assembly to the boat rail. (Fits 0.75” to 1.25” diameter rails). 3. Attach the SondeCAM to the u-bolt assembly with the Boatside Rail Mount Kit... -
Page 11: Sondecam Wq Setup And Operation
SondeCAM WQ Setup and Operation Selecting a Water Quality Parameter SondeCAM WQ Setup and Operation Selecting a Water Quality Parameter 1. Remove the probe guard and port plug from the bulkhead. 2. Install the pH or dissolved oxygen probe. 3. Insert the magnet (back of screwdriver) into the bulkhead hole and observe the LED color. -
Page 12: Calibration
SondeCAM WQ Setup and Operation Calibration Calibration Warning: The pH and DO sensors used with the SondeCAM WQ are precise scientific instruments and care must be taken during calibration in order to ensure accurate readings. The integrated precision temperature sensor does not require calibration. The depth sensor is calibrated automatically during either pH or dissolved oxygen calibration. -
Page 13: Sondecam Wq Fishfinder/Chartplotter Setup
SondeCAM WQ Fishfinder/Chartplotter Setup Lowrance® SondeCAM WQ Fishfinder/Chartplotter Setup Lowrance® 1. From the start screen, click the Video button to view live streaming video. 2. Swipe down the blue menu button in the top right to open the menu. 3. Click Data Overlay if not already selected. 4. - Page 14 SondeCAM WQ Fishfinder/Chartplotter Setup Lowrance® 10. Expand Sonar, GPS, and Weather. 11. Set Altitude, Water Temperature, Depth, and Wind Speed to HDS-9T NMEA0183 Port 1 [This device]. 12. Click Close. 13. Click Save. 14. Set the correct units for the selected parameters in Settings | Units.
-
Page 15: Maintenance
Maintenance Camera Maintenance Camera Rinse the device in clean water and wipe gently with non-abrasive cloth after use to remove any buildup Wipe the lens with a non-abrasive cloth if the image becomes foggy Ensure all connections are dry and secure ... -
Page 16: Water Quality Sensors
Maintenance Water Quality Sensors Water Quality Sensors DO Probe (YSI 2002 Galvanic Dissolved Oxygen Sensor) Preparing for Measurement 1. Remove the probe guard to access the sensor and unscrew from the SondeCAM. 2. Unscrew and discard any old Membrane Cap at the bottom of the electrode. 3. - Page 17 Note: When cleaning the sensor, be careful not to touch the membrane with your fingers. The oils on your skin can affect the dissolution of oxygen through the membrane and in turn affect the readings of the sensor. If the above procedure does not work, please contact FishSens Technology for assistance.
- Page 18 Maintenance Water Quality Sensors pH Probe (YSI 1001A Amplified pH Sensor) Preparing for Measurement pH sensors are shipped with the pH bulb moist. Prior to using your WQ-pH for the first time, remove the pH storage bottle from the bottom of the electrode and rinse the electrode with distilled or de-ionized water (Note: Keep the pH storage bottle for late storage).
- Page 19 3. Rinse in clean water (not DI). 4. Soak in clean water for 60 minutes or more to remove all traces of bleach. Stir periodically. 5. Re-rinse in clean water. If the above procedure does not work, please contact FishSens Technology for assistance.
-
Page 20: Troubleshooting
Troubleshooting Generic Troubleshooting Generic Issue Steps to Resolve Video does not 1. Confirm there is nothing blocking the camera lens appear on the 2. Confirm all connections are secure display 3. Confirm the boat battery is good 4. Connect the camera’s RCA output to another display’s (Such as a TV) RCA yellow input to confirm the camera is the issue Camera body feels This is normal with prolonged use in air and is not an issue. -
Page 21: Warranty And Service
This warranty is not applicable to any FishSens Technology, Inc. product damage or failure caused by (i) failure to install, operate or use the product in accordance with FishSens Technology, Inc. written instructions, (ii) abuse or misuse of the product, (iii) failure to maintain the product in accordance with FishSens Technology, Inc. -
Page 22: Mechanical Drawings And Specifications
Mechanical Drawings and Specifications SondeCAM mini Mechanical Drawings and Specifications SondeCAM mini Mechanical Drawing Specifications Weight 1.0 lbs with cable 25 ft. included, 25 ft., 50 ft., 100 ft. Cable Length extension cables available Buoyancy Sinks without additional weights Marine anodized aluminum, acetal,... -
Page 23: Sondecam
Mechanical Drawings and Specifications SondeCAM SondeCAM Mechanical Drawing Specifications Weight 2.8 lbs with cable 50 ft. included, 25 ft., 50 ft., 100 ft. Cable Length extension cables available Buoyancy Sinks without additional weights Marine anodized aluminum, acetal, Material stainless steel hardware Camera 1/3”... -
Page 24: Sondecam Wq
Mechanical Drawings and Specifications SondeCAM WQ SondeCAM WQ Mechanical Drawing Specifications Weight 2.8 lbs with cable 50 ft. included, 25 ft., 50 ft., 100 ft. Cable Length extension cables available Buoyancy Sinks without additional weights Marine anodized aluminum, acetal, Material stainless steel hardware Camera 1/3”... - Page 25 Mechanical Drawings and Specifications SondeCAM WQ Depth Sensor Specifications MS5803-05BA Miniature Altimeter and Depth Sensor Diving Module Range 0 to 6 bar Resolution 0.1ft Operating Temperature 0 to 50°C (32 to 122°F) Response 8.22 ms Accuracy ± 2% of the reading (±120 mbar) Temperature Sensor Specifications Temperature Sensor Thermistor...
-
Page 26: Appendix
MENU in a terminal interface. Within 2 seconds a menu will appear providing setup and configuration options. NOTE: This menu provides access to the device’s root programming. FishSens Technology, Inc. is not responsible for any permanent damage caused by incorrectly changing the setup. -
Page 27: Revision History
Appendix Revision History Revision History Revision Date Code Changes Reviser 15B03 Original Document Created 15B12 Updated WQ Maintenance Section 15C02 Updated Wiring Diagram Updated Wiring Diagram, DVR Section, 15C20 Dimensions, Cable Pinout, General Clarity 15C31 Updated Accessories, SC mini weight 15E12 Updated Generic Troubleshooting 15F17...
