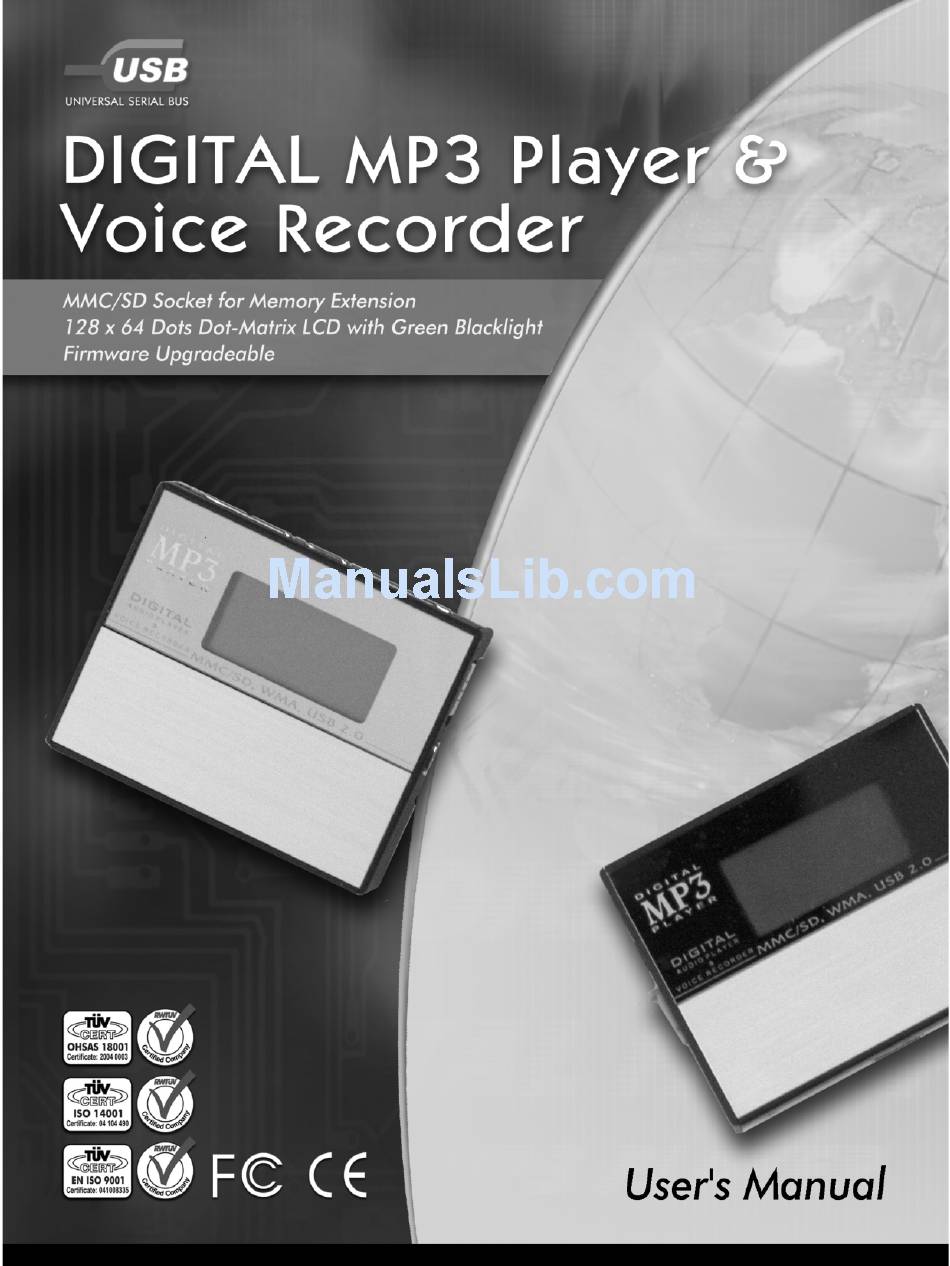

Summary of Contents for Zotac Digital MP3 Player
- Page 2 IMPORTANT SAFEGUARDS · Keep the product and all its parts and accessories out of the reach of small children. · Make sure not to let water into the product. · Do not leave the unit exposed to direct sunlight for long periods. ·...
-
Page 3: Table Of Contents
Table of contents MAIN FEATURES ........................4 1) PLAYER OVERVIEW ......................5 2) THE LCD DISPLAY ......................... 5 3) THE PLAYER OPERATION ..................... 6 Turning the Player On 4) MAIN MENU .......................... 6 Playing Music (MP3, WMA, WAV file) Pause Fast Forward/Skip Next File Rewind/Skip Previous File Stop... -
Page 4: Main Features
Main Features • Play audio files in MP3, WMA, ADPCM WAV formats. • Support four operating modes : Music, Record, Voice, FM. • Portable USB Flash disk function. • Support memory size 64/128/256/512MB. • Blue background lighting • Display the audio file name, format, ratio, lyric, play time, play status, sound effect and volume of tracks. -
Page 5: Player Overview
1) PLAYER OVERVIEW USB connector Earphone/Line-in jack Microphone (build in the player) Neck strap hole Volume down ( Volume up ( Power ON / OFF / Play / Stop / Pause Button ( Previous track / Fast rewind button ( Next track / Fast forward button ( LCD Display... -
Page 6: The Player Operation
3) THE PLAYER OPERATION Turning the Player On Press “ ” to turn on the player. The player will enter the MP3/WMA mode automatically. If there are audio files on the player, the title of these files will be displayed on the screen. The background light is on and starts up for several seconds. -
Page 7: Playing Music (Mp3, Wma, Wav File)
Playing Music (MP3, WMA, WAV file) Short press “ ” to start playing. The player is capable of showing lyric on the display simultaneously while playing a song. The Player support LRC V2.0 format, if there is a lyric file in the same directory and the lyric file name is the same as audio file name, lyrics will be displayed. -
Page 8: Stop
Stop When an audio file is being played, press “ ” and hold for about 2 seconds to stop playing. 002/026 00:22 Yeding-zhonghui.MP3 04:19 128K Adjusting Volume NO R Press “ ”or “ ” to adjust volume. Press “ ” to decrease and “ ”... -
Page 9: Recording Function
Sampling Frequency The higher sampling frequency (with larger number before kHz), the higher sound quality and it will also result in larger recorded files. Record Mode Album and song are selectable. Exit Press “ ” or “ ” to select menu items, press “ ”... -
Page 10: Fm Tuner Mode
FM TUNER MODE (optional) When an audio file is being paused or is stopped, short press “ ” to select “MAIN MENU”-> “FM”. 1). Listening to the radio Press “ ” to select “Radio”, press “ ” to confirm. The preset radio station or P1 station will appear on the display. -
Page 11: System Setup
5) SYSTEM SETUP Setting up Equalizer Mode When an audio file is being paused or is stopped, short press “ ” to select “ MAIN MENU ” -> “ SET ” -> “ EQ SET ”, the menu items as shown in the lower figure. 1). -
Page 12: Setting Up Power Off
Setting up Power Off In this section, you may select time to power off the the player automatically. When an audio file is being paused or is stopped, short press “ ” to enter “ MAIN MENU ” -> “ SET” ->... -
Page 13: Display The Player Information
Display the Player Information When an audio file is being paused or is stopped, short press “ ”, press “ ” or “ ” to select “ABOUT” submenu and press “ ” to confirm. Display the player of firmware Version, INT, Free space. ABOUT VER: 2.511 . -
Page 14: Pc Driver And Utility Installation
8) PC Driver and Utility Installation (only for Windows98/SE) Please refer to the website address to download the utility of relevant product. Make sure finish the software setup before you connect the player with the USB port. If connect the player to PC before setting up the device driver will invoke ‘Add New Hardware Wizard’ of Windows 98/98SE. -
Page 15: Usb Connection
F) After completing the installation, please click check box [Yes, I want to restart my computer now] and click [Finish] to restart your computer. (Windows98) Note: There is no driver required for Windows2000/XP (Plug and Play). 9) USB Connection You could transmit files through USB port of your PC. A) Make sure your PC support USB devices and you have installed the driver (Windows98/98SE). -
Page 16: How To Format The Player
G) A removable disk icon is displayed within the My Computer window. You can now save, copy and delete files on the player by Drag and Drop in the removable disk. When the transfer is finished, following the below pictures to stop this USB Mass Storage Device using the Safe Removal icon, then you can take out the player safely. -
Page 17: About The Format Data Area Option
About the Format Data Area Option: Not Selected (default): Update the firmware only, recommended. Selected: Update the firmware and format the storage. When finish, please format the Removable disk with format tool of Windows.This selection is suggested. Note: You can download the new version firmware from www.user-update.com <http://www.user-update.com>, then copy it to the setup directory “D:\Program Files\ SignaTel\MSCNMMC”... -
Page 18: Fqa And Troubleshooting Tips
FQA and Troubleshooting Tips Why am I unable to install the installation software to my operating system? • Please note that Windows95 is unable to support USB interface properly. Please upgrade your system to Windows98 (Version 2.0,4.10.2222 A), 2000, ME, or XP. •... - Page 20 91-8DA6-02...
