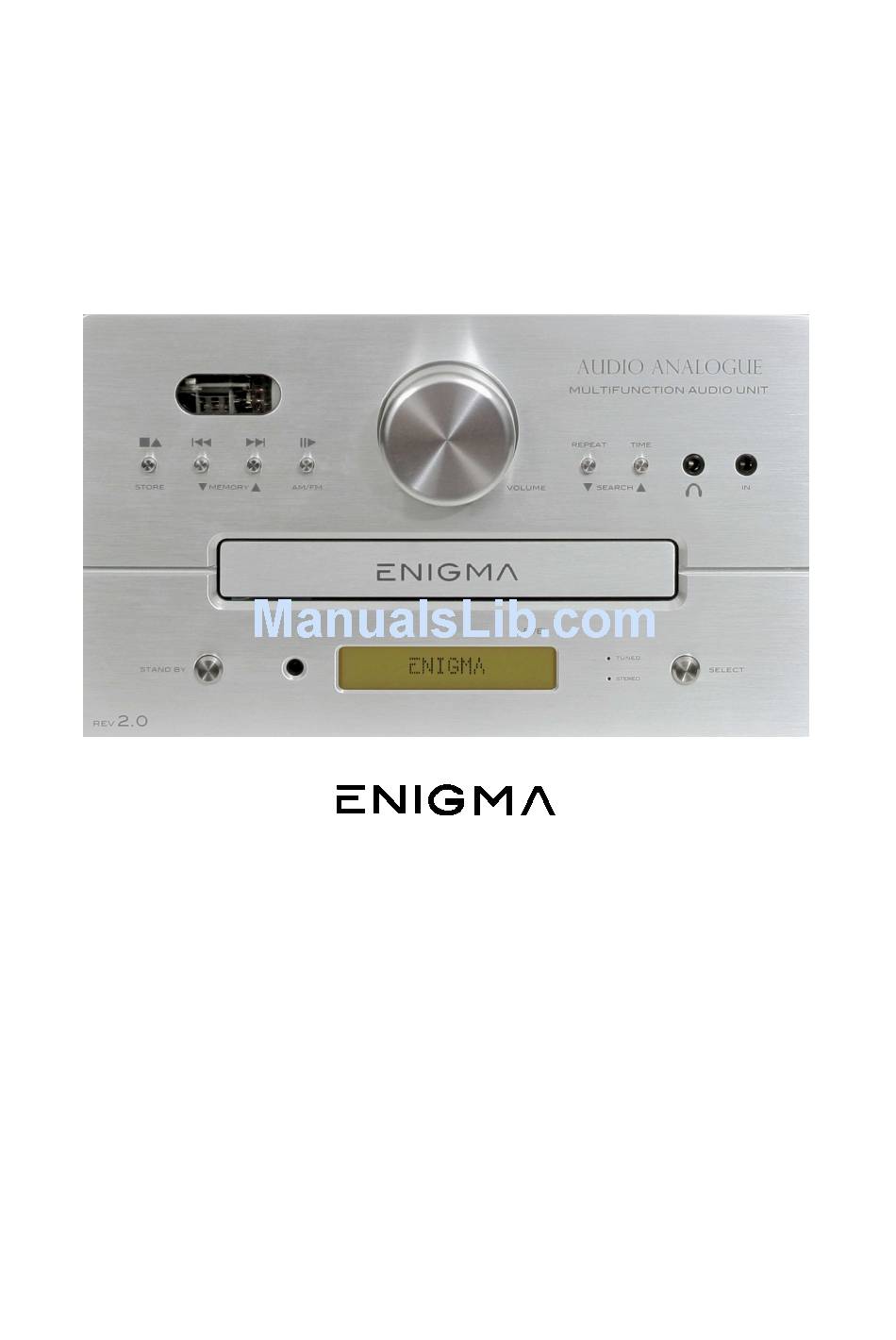

- Page 1 AUDIO ANALOGUE REV2.0 MULTIFUNCTION AUDIO UNIT OWNER’S MANUAL MANUALE D’ISTRUZIONI Manual rev.1.1...
- Page 3 DAC section. The resulting audio quality is astonishing! The Enigma Rev2.0 has a new more essential design with a line input on the front to be connected to a line output of an MP3 Player such as the iPod ®...
- Page 5 INTRODUCTION AUDIO FUTURA spa, AUDIO ANALOGUE producer and distributor, does not take any responsibility in the following cases: Whenever the operational procedures related to the use and the maintenance of the equipment as described in this manual are not respected.
- Page 6 Nessuna parte del presente manuale può essere riprodotta con alcun mezzo, trasmessa o copiata per usi pubblici e/o privati senza la previa autorizzazione di AUDIO ANALOGUE. Le informazioni contenute nel presente manuale sono relative ai dati in possesso di AUDIO ANALOGUE al momento della pubblicazione; AUDIO ANALOGUE si riserva il diritto di apportare cambiamenti al presente documento senza alcun preavviso.
- Page 7 Front panel (All the switches in the top part of the front panel perform different functions depending on whether the Cd Player source or Tuner source is selected, whereas they are inactive when a Line Input is selected): / STORE: •...
-
Page 8: Time Search
allocation, an EMPTY signal shows on the display and the radio switches back to the previous station. When in “Storage” mode, pressing this button allows you to choose a memory allocation where the selected radio station is to be stored. Please refer to the “Radio station storage”... - Page 9 12) STEREO LED: Source selected: Tuner → STEREO LED. When the unit is in stereophonic mode, the STEREO LED turns on when the incoming signal is stereophonic, otherwise it stays off. When the unit is in monophonic mode, the STEREO LED is always off and the signal reproduction is forced to be monophonic.
- Page 10 / AM/FM : • Sorgente selezionata: CD Player → PLAY/PAUSE. Tasto multifunzionale. La pressione di questo tasto attiva la riproduzione del disco oppure attiva o disattiva il momentaneo arresto della lettura (pausa) quando il CD è già in riproduzione. • Sorgente selezionata: Tuner →...
- Page 11 12) LED STEREO: Sorgente selezionata: Tuner → LED STEREO. Il LED Stereo si accende o spegne a seconda della modalità di riproduzione selezionata. In modalità stereofonica si accende quando il segnale ricevuto risulta stereo e rimane spento altrimenti. In modalità monofonica è sempre spento per indicare che si sta forzando la riproduzione del segnale in mono. Il LED è...
- Page 12 Description of the remote controller CD PLAYER functions • STANDBY CD: turns-on and turns-off the device. If you make the unit exit from the standby mode using the remote standby CD switch, after the vacuum tube heating procedure has ended, the CD Player will be selected as the source. •...
- Page 13 Remote controller - Descrizione del telecomando Funzioni CD PLAYER • STANDBY CD: fa entrare e uscire l’apparecchio dalla modalità stand by. Quando si fa uscire l’apparecchio dallo standby usando il tasto STANDBY CD, l’apparecchio, alla fine della procedura di riscaldamento della valvola seleziona come sorgente il lettore CD. •...
- Page 14 As a third step, connect the Enigma Loudspeaker outputs to the speakers. At last, after checking that the mains power switch on the rear panel is in the “0” position, plug the power cable into the Enigma inlet and into the wall outlet and select the “1”...
- Page 15 Front View / Visuale Frontale E N I G M A Connect the iPod ® LineOut to the Enigma Front IN Collegare il LineOut dell’iPod ® al Front IN dell’Enigma iPod is a trademark of Apple Computer Inc. iPod è un marchio registrato di Apple Computer Inc.
- Page 16 Powering up Enigma Turn Enigma on by pressing the STANDBY button on the front panel of the unit or one of the STANDBY buttons on the remote control: The display turns on and a presentation message is shown. After that, a “Heat Tube” message is displayed and the countdown will be shown to indicate that the preamplifier vacuum tube is reaching the right working temperature.
- Page 17 Tune the radio station you’re interested in. Enter in “memorizing” mode by pressing and leaving the STORE button on the remote controller or by pushing the “STORE” switch on the front panel. Then on the display you can visualize the content of the first location along with two dots “:”...
- Page 18 SETUP MENU The Enigma REV2.0 has a lot of very useful functions which can be enabled in to the setup menu, to enter these simply push the AMP SETUP button on the remote. Use the switches: “2”, “4”, “8”, “6” on the remote to navigate through the menu and the switch: ”5”...
- Page 19 • You can navigate inside a menu with the switches LEFT [4] e RIGHT [6] between all the various options. all’interno di una voce del menu setup ci si può muovere con SINISTRA [4] e DESTRA [6] per navigare attraverso le varie opzioni.
- Page 20 Posizione Volume VOL.MODE This scale has lower steps in the normal listening volume range. Questa scala ha passi più piccoli in corrispondenza del normale volume di ascolto. Posizione Volume VOL.MODE This is the default scale Questa è la scala di default Posizione Volume VOL.MODE This scale with its low...
- Page 21 • BALANCE: this function permits the balancing of the channel with 1dB steps for a maximum of 10dB. Use the switch [4]: LEFT to decrease the Right channel compared to the Left one and the switch [6]: RIGHT to decrease the Left channel compared to the Right one.
- Page 22 • SLEEP: when enabled, this function permits you to turn off the unit automatically after a defined time which can be set as: 15, 30, 45, 60 minutes. SLEEP: questa funzione permette di spegnere automaticamente l’apparecchio allo scadere di un intervallo temporale selezionato, gli intervalli sono: 15, 30, 45, 60 minuti.
-
Page 23: Technical Data
• EXIT: selecting this option (pushing the 5: OK button on the remote) exits you from the menu set up, the same result is achieved pushing the AMP SETUP button on the remote when you are in any section of the menu. EXIT: selezionando questa voce del menu (premendo il tasto 5: OK del telecomando ) si esce dal menu setup, lo stesso effetto si ha anche con la pressione del tasto AMP SETUP in qualunque schermata. - Page 24 Specifiche Tecniche Assorbimento: 300VA 125 x 210 x 400 mm Dimensioni (Nota 1) 4,9 x 8,3 x 15,7 " 9,3 kg Peso 20,5 Lbs Guadagno di Linea 12dB Guadagno Finali 26dB Impedenza di Ingresso Linea 40KOhm 10W @ 0.010% THD + N Potenza su 8Ohm, Ingresso Line2 (Note 6) 40W @ 0.016% THD + N...
-
Page 25: Troubleshooting
Get closer to the unit or reduce angle exceeding angle from the front panel If the suggested remedies should not work or the problem is not shown in the list above, please contact your local Audio Analogue retailer. RICERCA GUASTI... - Page 26 WARNING! All of our CD players may not be able to read some specific CD’s manufactured with a unique protection system against copying. If in doubt, please try to read the CD using a PC CD-ROM drive. When the CD-ROM drive is incapable of accessing the tracks on the CD, please do not play the CD in question with our CD players.
- Page 27 Please contact your Audio Analogue dealer who will inform you about returning and recycling the item. Small products normali rifiuti domestici. Per tali prodotti è previsto un (and small amounts) might be taken back by your local collection facilities.
- Page 28 Audio Analogue Manufactured and Distributed by: AUDIO FUTURA spa Via Maestri Del Lavoro 583 51015 Monsummano Terme (PT) Italy Tel. 0572 954513 fax 0572 958099 www.audioanalogue.com - info@audioanalogue.com...
