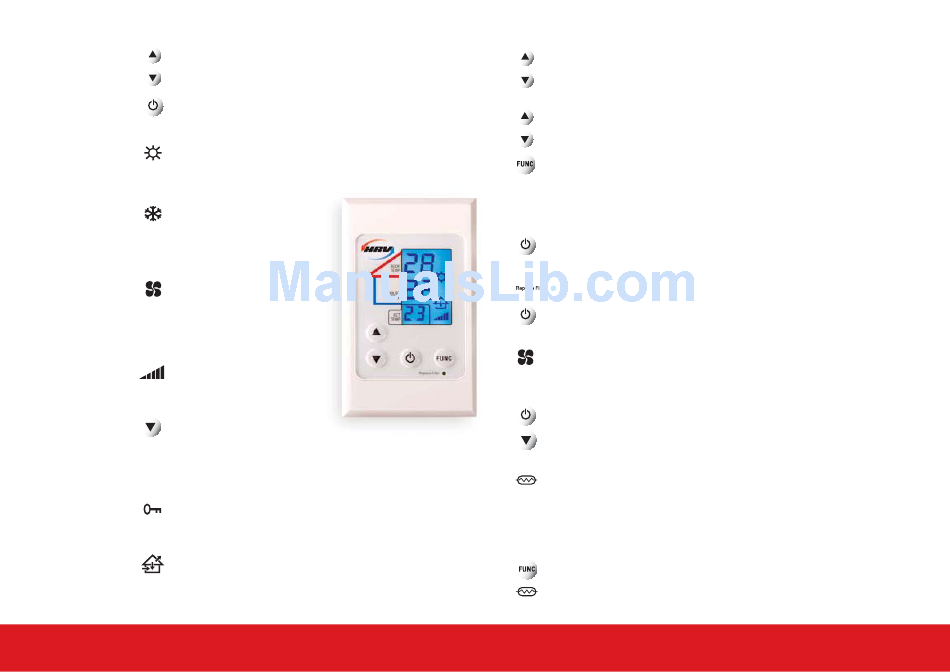

HVR Temperature Controller Instruction Manual page 2

Normal Operation
Press the 'Power' button if the unit is not already on. Select the desired temperature by using the
'Up' and 'Down' arrow buttons. This temperature can be set from 14 to 24 degrees Celsius. After
selecting the desired temperature, the HRV system will function automatically all year round.
Heating
Turning off the HRV System
Cooling
In the unlikely event that you want to turn the HRV system off, just press the 'Power' button once.
The display will turn off. To ensure your house stays fresh and dry, the HRV will automatically power
Ventilation
on again in 8 hours.
Locked
Heating Symbol Displayed (Heating Mode)
Air tempering
If the House Temperature is cooler than the Set Temperature, and the Roof Temperature
Purge
is hotter than the House Temperature, then the HRV System will enter Heating Mode and use the
Roof air
warmer air in the roof space to raise the
Outside air
temperature of the house.
Fan speed
Cooling Symbol Displayed (Cooling Mode)
If the House Temperature is warmer than the Set
Temperature, and the Roof Temperature is cooler
s, a fan speed indicator and
than the House Temperature, then the HRV
digit display is the current System will enter Cooling Mode and use the
cooler air in the roof space to lower the
play is the current house
temperature of the house.
Celsius. If the temperature
Ventilation Symbol Displayed
(Ventilation Mode)
s should be adjusted to the
If the House Temperature is at the Set
r home. This can show from
Temperature, or the Roof Temperature cannot be
burnt toast' mode. used to adjust the House Temperature, then the
HRV system enters Ventilation Mode. This mode
will reduce condensation and provide fresh air in
ng the mode of operation.
the house.
ion, locked, air tempering,
Fan Speed Indicator
The Fan Speed Indicator consists of 5 segments
which provide a rough indication of the fan
speed. The fan is capable of much finer speed
adjustments than the 5 steps indicated.
Burnt Toast Mode
Burnt Toast Mode forces the HRV to run at full fan speed for 1 hour. To enable Burnt Toast Mode
to be comfy while
press and hold the 'Down' arrow button for three seconds. Two beeps will be heard and the set
temperature will flash '--'. This mode is a boost mode to clear unwanted fumes or to remove
aving the planet"
condensation that may have been trapped behind a closed curtain.
After 1 hour the system will return to its previous setting automatically. To de-activate, press the
'Up' or 'Down' arrow button once.
Your HRV system creates huge
ncies as it dries out your home.
Locking the Keypad (non ATU System)
ou will find you use less primary
To avoid accidental changing of any settings, the keypad can be locked. Press and hold the 'FUNC'
heating ( fireplace, heat pump
button until the lock symbol is shown (3 sec). To unlock the keypad press and hold the 'FUNC'
flued gas ) and you won't need
button until the lock symbol goes out (3 sec).
dehumidifiers. HRV owners are
Air Flow Path
up to 60% of their energy cost
and reducing their emissions.
The air flow path has three arrows showing where the air is coming from (roof or outside) and also
if the roof space is being purged. Note, purging roof space and outside air are additional options
Good on you. available – contact HRV for more information 0800 HRV 123.
Night Mode
Night Mode sets the HRV to 18 degrees for 4 hours, after which it will return to its
previous setting automatically. Night Mode is best used in summer before going to
bed in the evening. Once set, your HRV System will use the cool air in the roof space to
bring the room temperature down, and create air flow in the house to help with a
more comfortable night sleep.
To activate press and hold the 'Down' arrow button until you see the set temperature as
a flashing '18'. This will occur 3 seconds after the flashing '--' is displayed, so don't release
the button until the flashing '18' is seen. To de-activate, press the 'Up' or 'Down' arrow
button once.
Filter Gauge
The Filter Gauge is an indicator of how much percentage of use the filter has remaining.
To display the filter gauge press the 'FUNC' button twice within a second and then after
another second, press it again. 'Fil' will be displayed with a number under it. This number
is a percentage of filter use remaining. Over time the number moves towards zero percent
and the filter needs to be replaced when it gets close to zero. This will also be indicated
by the Replace Filter Light (see below).
Note: For systems with an ATU, you will need to turn the system off first, by pressing the
'Power' button.
Replace Filter Light
If the Replace Filter Light is flashing, then it's time to replace your filter. Doing this
without delay will ensure your HRV System continues to work at its best performance.
Power Failure
During a power failure the unit will retain all settings, including the Set Temperature and
the key pads locked state.
Ventilation Mode – Adjusting the Ventilation Level
This setting determines how much air your HRV will deliver when the temperature inside
your roof cavity is undesirable – for example, on a cold winter night or hot summer day.
For bad condensation problems a higher setting can be selected. A higher setting will
reduce condensation but may also reduce the temperature during cooler times of the year.
To change this setting, first turn the system off by pressing the power button. Next, press
and hold the 'Down' arrow button until the display is lit (3 sec) – the display will now show
'01' beside the 'Roof Temp' and another number beside the 'House Temp'. Press the 'Power'
button to change the setting. The setting can be a number from '1' through to '6'.
To exit settings mode press the 'FUNC' button when the setting has been made. Settings
mode will exit in 2 minutes, if no key is pressed.
ATU control (ATU system) – Optional
The Air Tempering Unit can run in two modes (Air tempering mode or thermostat mode).
Air Temper mode uses a lot less power and only turns on the heater to help reduce
condensation. Thermostat mode turns on the heater whenever the HRV system needs
to heat.
To enable air tempering mode, briefly press the 'FUNC' button once. The ATU symbol will be
displayed. To disable the air tempering mode briefly press the 'FUNC' button again.
The ATU symbol will go off.
To enable thermostat mode, press and hold the 'FUNC' button for 3 seconds, until the ATU
symbol flashes. To disable the thermostat mode, briefly press the 'FUNC' button.
The ATU symbol will go off.
Call 0800 HRV 123 for help and support
