INSTRUCTION MANUAL
Specifications:
• Operating Voltage is 12~24 VAC/DC
• Current Draw: Holding: 22mA, Pull-In: 66mA@12VAC/DC
Holding: 12mA, Pull-In: 32mA@24VAC/DC
• Relays Electric Current: 12A@14VDC, 7A@120VAC
• Optimal Operating Temperature: -20 to +70 ˚C (-4 to +158 ˚F)
• Invalid Code Lock Out: The system will shut down for 60 seconds after 5 invalid
PIN are attempted.
Dimensions & Contents
5"
4
3
/
"
8
MAK-200

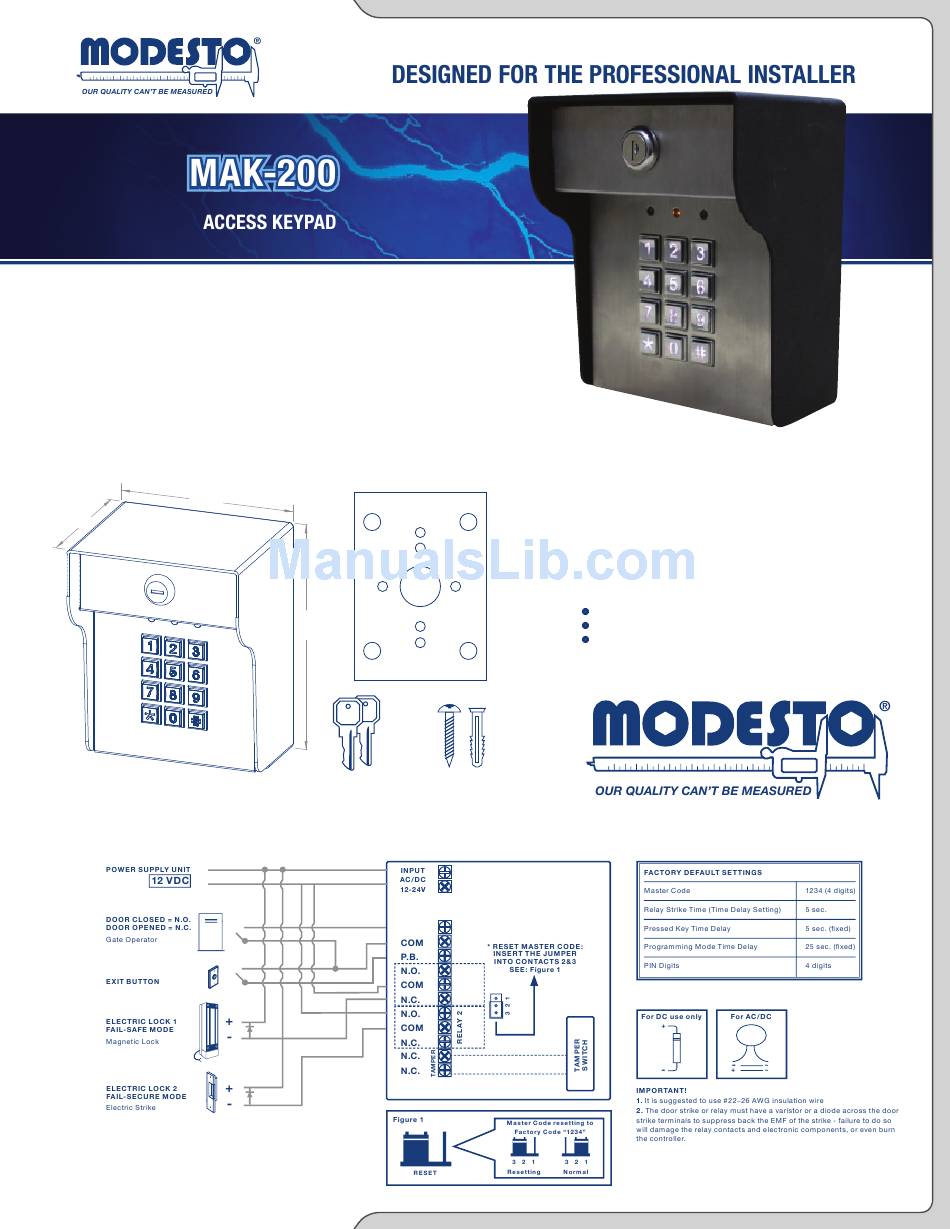

Installation and Wiring Instructions & Diagrams
+
-
GASKET
6½"
KEYS X 2
SCREWS & PLASTIC
WALL ANCHORS X 4
+
-
REED
System Signals
SOUND SIGNAL
• 1 Short Beep: Key In
• 1 Long Beep: Valid PINs
• 2 Beeps: Enter / Exit Programming Mode
• 3 Beeps: Incorrect Input
• 5 Beeps: Reset master code to default value (1234),
clear all PINs
LED SIGNAL
•
Green LED: First Relay Active
•
Red LED:
Second Relay Active
•
Yellow LED: Normal (Power On)
