DON-BAR CFS SERIES Installation, Operation And Maintenance Manual

Wood stoves

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Keep these instructions for future use

REV. 2014-11

LES FOYERS

DON-BAR

FIREPLACES

WOOD STOVES

Shop and Showroom: 741, St-Vallier Ouest, Quebec (Quebec) G1N 1E2

Website: www.don-bar.com - Email: don-bar@don-bar.com

Installation, Operation

and Maintenance Manual

CFS

Series

CFS SERIES

Les foyers DON-BAR Fireplaces, inc.

Phone: (418) 686-9114 - Fax: (418) 686-9117

Table of Contents

Need help?

Do you have a question about the CFS SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for DON-BAR CFS SERIES

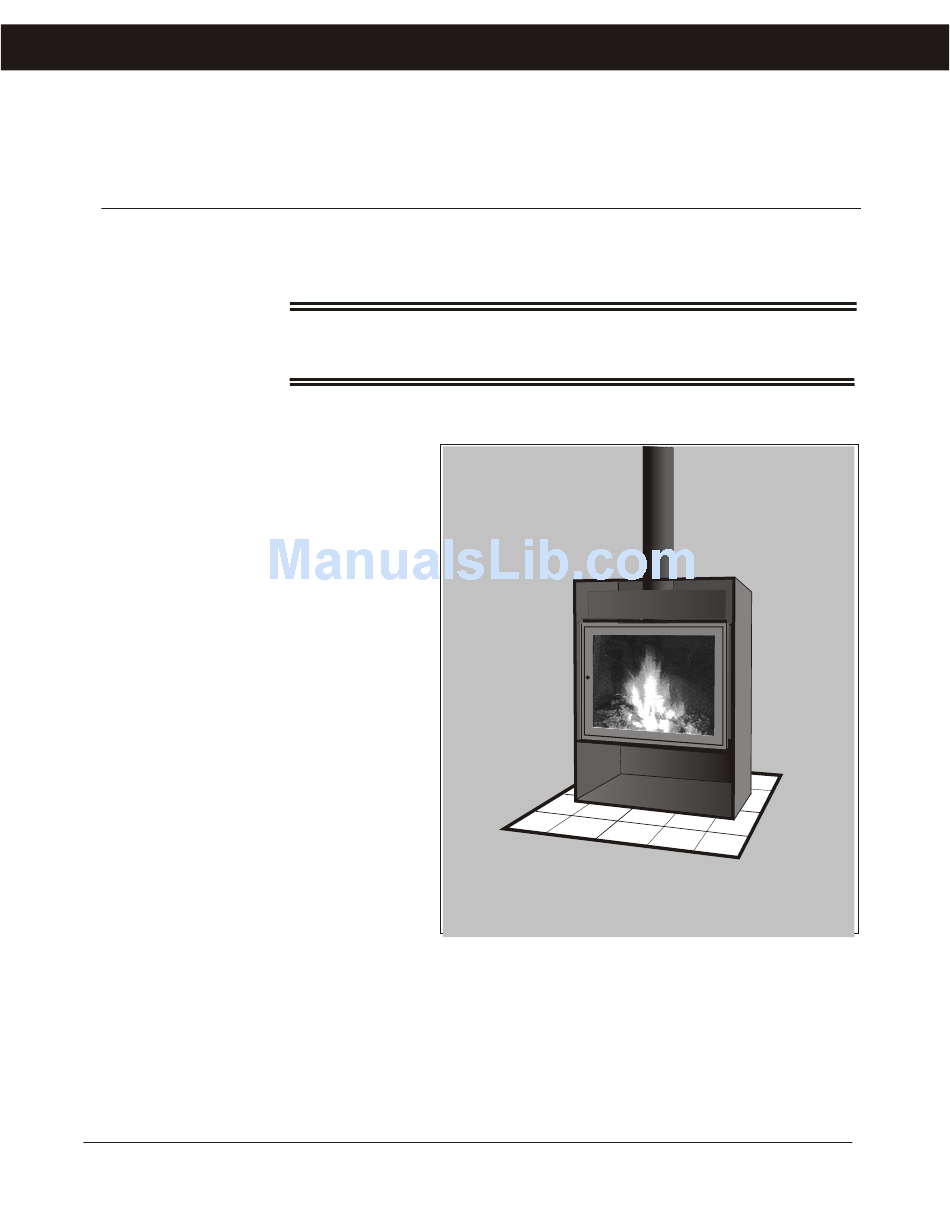

Page 1 Maintenance Manual LES FOYERS DON-BAR FIREPLACES Series CFS SERIES WOOD STOVES Les foyers DON-BAR Fireplaces, inc. Shop and Showroom: 741, St-Vallier Ouest, Quebec (Quebec) G1N 1E2 Phone: (418) 686-9114 - Fax: (418) 686-9117 Website: www.don-bar.com - Email: don-bar@don-bar.com REV. 2014-11...
Page 2: Table Of Contents
Page 20 PART 5: Warranty ........... This document in its entirety is the intellectual property of Les Foyers Don-Bar inc. Any unauthorized use will expose its author or authors to legal and financial penalties. Copyright © 2014 - Les Foyers Don-Bar inc.
Page 3: Part 1: Installation
PART 1: INSTALLATION 1. Warnings and cautions 7. Heating duct installation (Optional) 7.1 Basement heating 7.2 Duct installation 2 .Important 7.3 Axial fan installation 1.1. Modifications 7.4 Recommended heating ducts 1.2 Installation instructions 8. Floor protection installation 1.3 Applicable Codes 8.1 Non-combustible floor protection 1.4 Professional installation 8.2 Removing the existing resilient flooring...
Page 4: Part 1: Installation
PART 1: INSTALLATION 1. Warnings and cautions DO NOT USE GRATE TO ELEVATE FIRE. DO NOT OVERIFRE THE UNIT. BUILD FIRE DIRECTLY ON TH HEARTH. D O N O T O B S T R U C T S P A C E U N D E R PROVIDED WITHOUT DETACHABLE LEGS.
Page 5 2.2 Listed factory-built chimneys: Your Don- Bar fireplace is designed to be installed with any prefabricated chimney bearing the ULC-S629 or UL-103HT. The interior diameter varies Don-Bar according to the model. See pages 9 and 10. CFS or CFS-R Protection for...
Page 6 4. Before beginning the installation NOTES Before 3.1 Choosing the best location: beginning the installation, make sure the spot you have in mind for the fireplace and the chimney meet the following requirements: 3.1.1 Chimney: Position the chimney to avoid, as much as possible, offsets, elbows and cutting-out of structural elements.
Page 7 5. Factory-built chimney installation Chimney minimum height above the roof 5.1 Ceiling support installation: Use and install only parts furnished by the manufacturer of the chimney. 10 feet (3 m) Radius Chimney lengths installation: Continue with the installation of the chimney by positioning lengths with the male end up.
Page 8 - 6" dia. (150 mm) basement ceiling Heating a basement (Drawing 5): Your Don-Bar CFS Fireplace is designed to permit the warm air to the basement heating of a lower floor. For this reason, an (or an adjoining...
Page 9 8.2 Removing the existing resilient flooring: Protection for combustible Prior to installing the floor protection, remove floors any existing resilient flooring. (carpet, etc.) 9. Installation of optional accessories 8" (200 mm) 9.1 Anti-smoke flap (optional): For installation minimum details, see Drawing 27. 18"...
Page 10: Floor Protection
69-52 69-61 69-69 69-80 69-90 80-60 80-69 80-80 98-78 98-87 27-1/4” 27-1/4” 27-1/4” 27-1/4” 31-1/2” 31-1/2” 31-1/2” 31-1/2” 36-3/4” 36-3/4” 48-1/4” 1226 48-1/4” 1226 48-1/4” 1226 48-1/4” 1226 48-1/4” 1226 48-1/4” 1226 48-1/4” 1226 48-1/4” 1226 48-1/4” 1226 48-1/4” 1226 19-3/4”...
Page 11 CFS-R 69-61 CFR-S 69-69 CFR-S 80-69 CFR-S 27-1/4” 27-1/4” 31-1/2” 48-1/4” 1226 1226 48-1/4” 48-1/4” 1226 19-3/4” 19-3/4” 24” 19-3/4” 13” 16” 20-3/4” 20-3/4” 22-3/4” 6-7/8” 6-7/8” 6-7/8” 15”min 15”min 15”min Outlet 8” Outlet 8” Outlet 8” reducible reducible reducible to 6”...
Page 12: General Operation
PART 2: SECURITY, OPERATION AND MAINTENANCE 1. General operation 7. Glass firescreen maintenance 1.1 Combustion control 7.1 Glass maintenance 1.2 Air intake control 7.2 Replacing a glass pane 1.3 Smoke outlet control 7.3 Door gaskets 1.4 Danger of burns 8. BBQ installation 8.1 BBQ grill installation 2.
Page 13: Part 2: Security, Operation And Maintenance
PART 2: SECURITY, OPERATION AND MAINTENANCE 1. General operation Using the removable handle to control the air intake 1.1 Combustion control: Two valves are used to control combustion. The first one (Drawing 20), controls the air intake in the combustion chamber.
Page 14 However, some conditions out of our control can create smoke returns. Don-Bar Fireplaces cannot guarantee the absence of smoke returns but if this phenomenon occurs special attention should be given to the following...
Page 15 the air intake control must be fully open. Always Recommended wood species: For an use a firescreen with an open fire. Note that the efficient and economical operation, use only dry air intake control is inoperative when the door is hardwood such as maple, oak, wild cherry, birch, open.
Page 16 Be careful when coming close "Stove Bright" high temperature stove paint. The to it. Keep clothes, furniture, drapes, pets and standard color used by Don-Bar is Metallic Black young children away from the fireplace. no 6309. 4.10 Gloves and poker: In order to operate the 6.3 Fireplace storing before installation: To...
Page 17 1/8" (3 mm) thickness. DRAWING 24 The ceramic replacement glass (pyroceram) can usually be ordered from a local glazier or ordered directly from Don-Bar Fireplaces. (Note: the glass panes are not warrantied against breaking). Warning: Never replace a broken door glass...
Page 18: Anti-Smoke Flap Installation
Soot build-up on the HE smoke sliding Cleaning of the HE smoke deflector deflector (Drawing 26): During the chimney cleaning, be sure to remove any creosote or soot To prevent soot build-up the build-up over the HE smoke deflector. The build- smoke deflector must be up of soot on the deflector can prevent the flow of cleaned at regular intervals...
Page 19: Part 3: Parts List
PART 3: REPLACEMENT PARTS LIST To order a part: 1) Check the replacement part required 2) Specify the year of the fireplace installation _________________ 3) Fax this list with your coordinates to 418-686-9117 HE Combustion System Sliding damper Deflector (without the sliding damper) Rod and plate assembly for the sliding damper Chimney adaptor Standard Parts...
Page 20: Part 4: Chimney Fires
PART 4: CHIMNEY FIRES DIRECTIVES IN CASE OF A CHIMNEY FIRE How to detect a chimney fire What to do - Odour: Smell of smoke in the air. - Immediately alert the occupants of the building about - Sight: The colour of the pipe change. Flames at the potential danger.
Page 21: Part 5: Warranty
4. No representative, employee or agent material or workmanship defects for 10.3 Shipping damages not of Don-Bar is authorized to change or 1 year following the date of reported on delivery; extend the present warranty. purchase. 10.4 Faulty installation;...
