Camel RF Electronic transmitter Instruction Manual

Camel RF Development Center
5Watt FM transmitter instruction manual
Welcome Use the Camel RF PLL FM stereo transmitter
Introduction
：
Camel RF focus on RF technology research and development, in the V / UHF band analog and digital
RF circuit design has a strong development team. 10 Mhz to 4Ghz, 250W following the RF circuit
development projects.
Camel RF Independent production and joint development of various sizes power FM transmitter, FM
radio transmitter village, the campus radio FM transmitter, FM car transmitters, wireless audio, video,
data transmission products for users to choose. Anjie sales at home and abroad, as well as high-quality
wireless products. To give each customer the full technical support. Advanced debugging professional RF
equipment, a product for each of the performance and quality guarantee.
Thank you for selecting 5W FM RADIO STATION BROADCAST TRANSMITTER.

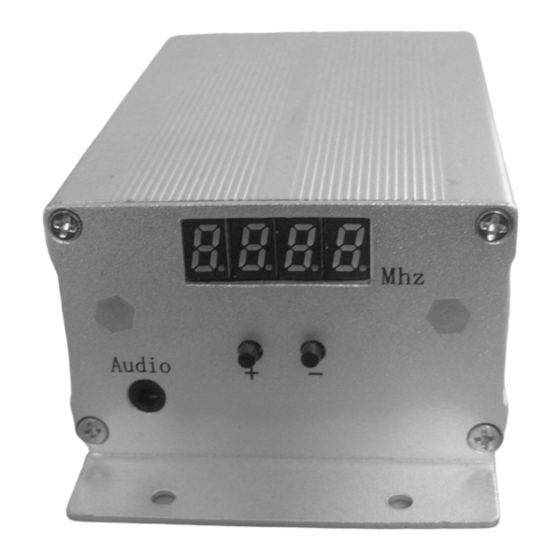

S-5W-ST IS FM A STEREO TRANSMITTER which apply PLL technology，so it's transmission is very
stable.
S-5W-ST main board adopt the PLL FM Transmitter IC of ROHM (BH1415F)，BH1415F build in PLL、
Audio aggravation and Low Pass filter, The control board is made of AT89C205 and AT24C02, the HF
amplifier is made of 2 2SC3355、 1 2SC2053 and 1 2SC1971,add up to 4 grade circuit。 The board adopt HF two
layer PCB design，and the shell is made of wonderful aluminum，the whole little machine is very beautiful
and easy to use!
S-5W-ST is design for amateur Radio fancier and not a professional transmitter!
5Watt FM transmitter instruction manual Page 1 of 5
