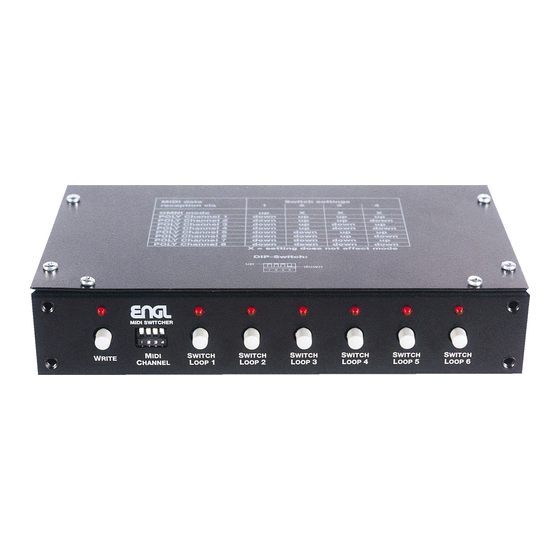

- Page 1 MIDI SWITCHER Z-11 Operator´s Manual Please, first read this manual carefully!
- Page 2 Keep it in a safe place for further reference when you have questions or need to engage in trouble-shooting activities. In order to simplify matters, from here on all references to an amp simply indicate any type of amplifier (combos, heads, 19" pre- and power amps) and switcher denotes the ENGL MIDI Switcher. Components 1.
- Page 3 C) The LED flashes rapidly after you have selected a MIDI program location: The MIDI program change has been transmitted via a MIDI channel which is not selected on the Switcher. In other words the MIDI channel being sent from the MIDI device (e.g. a MIDI Footcontroller) is not in accordance with the MIDI channel on the Switcher and therefore the Switcher does not change to this program location.
-
Page 4: Rear Panel
AC power pack may not consume more than 160 mA of current, otherwise a bigger AC power pack must be used. To feed the Switcher and the ENGL Footcontroller Z-12 with current a standart power pack is sufficient. - Page 5 1. Place it on a flat surface: Attach the four adhesive rubber pads to bottom of the device. 2. Attach it to your ENGL device using the velcro strips ( e.g. to the SAVAGE 120’s rear panel or inside the speaker box of a combo).
-
Page 6: Technical Data
Power supply: External power pack 7-15 volts AC or 9-20 volts DC, approx. 300 mA; Maximum power consumption by the Switcher: approx. 140 mA. Power supply via the MIDI cable Pin 1 and Pin 2 (center) can be activated for the ENGL MIDI Footcontroller Z-12; Consult Table below for pin assignments.
