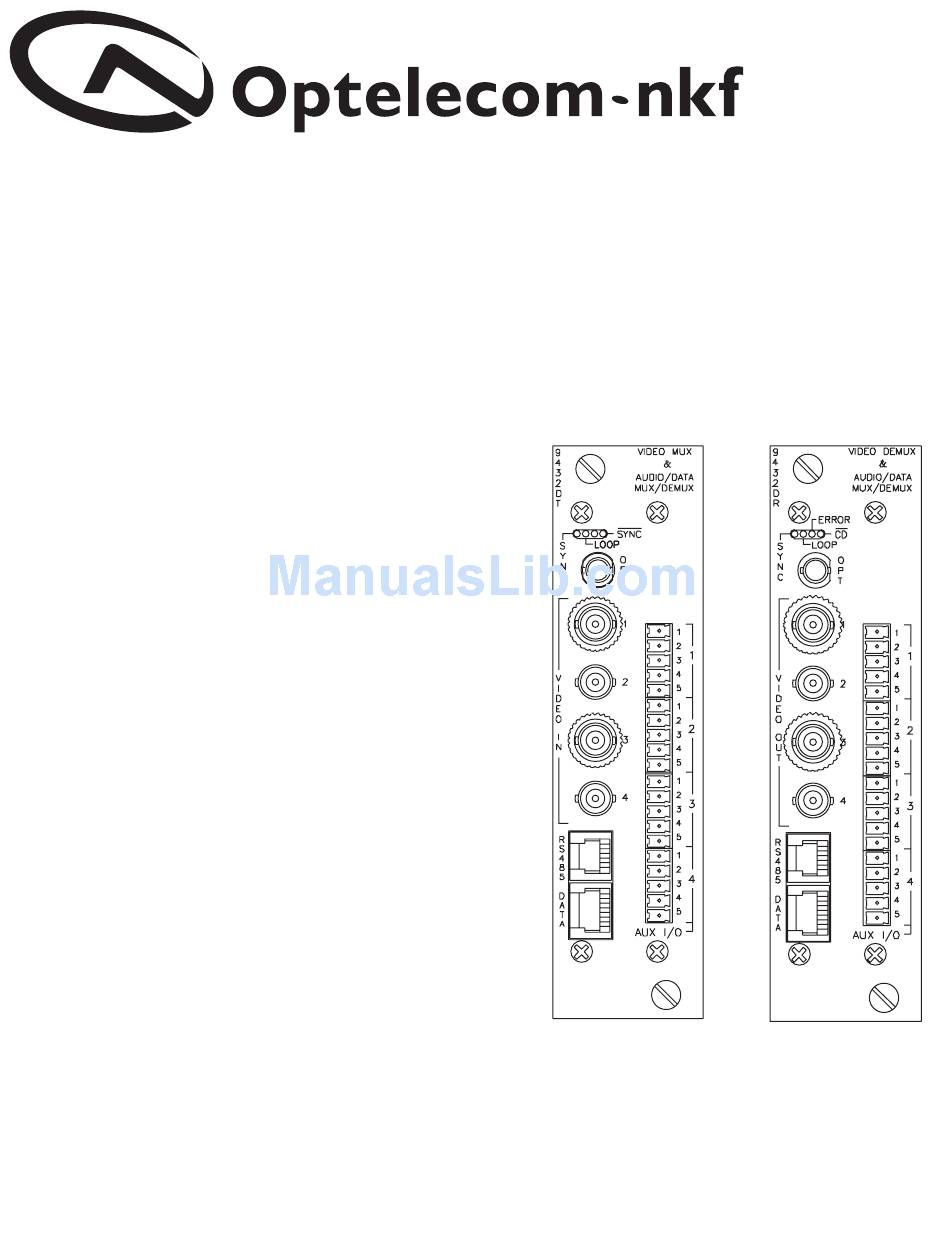

Installation and Operation Manual
Model 9432DT
Model 9432DR
Digital Four Channel Video/Seven Channel
Data Multiplexer/Transmitter and
Receiver/Demultiplexer Cards
For the high quality transmission of four channels
of composite baseband video in one direction and
three channels of data and up to four channels of
optional data over one optical fiber
UM50246, Manual 9432DT/DR, ECO22782, Rev. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9432DT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optelecom-nkf 9432DT

Summary of Contents for Optelecom-nkf 9432DT

  • Page 1 Receiver/Demultiplexer Cards For the high quality transmission of four channels of composite baseband video in one direction and three channels of data and up to four channels of optional data over one optical fiber UM50246, Manual 9432DT/DR, ECO22782, Rev. D...

  • Page 3: Table Of Contents

    Table of Contents Section Page Functional Description 9432DT Indicator, Connector and Dipswitch Locations and Function 9432DR Indicator, Connector and Dipswitch Locations and Function 9432DT/9432DR Configuration and Connection Guide Built-In Data Connection Operation of the 9432DT and 9432DR Operation of the 9432D with the Network Management System Specifications for the 9432DT and 9432DR UM50245, Manual 9432DT/DR, ECO 22782, Rev.

  • Page 4: Safety Instructions

    Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the unit. Optelecom-NKF assumes no liability for the customer’s failure to comply with any of these safety requirements.
  • Page 5 Si no se cumple con alguna precaución, advertencia o instrucción indicada en este manual se infringen los estándares de diseño, fabricación y el uso destinado a la unidad. Optelecom-NKF no asume ninguna responsabilidad si el cliente no cumple con alguno de estos reequisitos de seguridad.
  • Page 6 Falls vorsichtsmassnahmen, warnungen oder anweisungen in diesem handbuch nicht befolgt werden, verstösst dies gegen die konstruktions, und herstellungsstandards und erfolgt im gegensatz zum vorgesehenen verwendungszweck dieser einheit. Optelecom-NKF übernimmt keine haftung für das verabsäumnis des kunden, diese sicherheitsanforderungen einzuhalten.
  • Page 7 Le non-respect d’une precaution, d’un avertissement ou d’une instruction figurant dans ce manuel est une violation des normes de conception, fabrication et indication d’usage de l’appareil. Optelecom-NKF n’est pas responsable du non-respect de ces consignes de securite par le client.
  • Page 8 Fiber Information This unit was manufactured with attention to fiber cleanliness by Optelecom-NKF . Beyond the optical safety information contained in this manual, the following guidelines should be observed when working with optical fibers. The biggest problem is dirt! It takes very little contamination to cause problems with optical fiber connections; cleanliness is extremely important to proper operation of optical equipment.

  • Page 9: Functional Description

    The Models 9432DT and 9432DR are rack-mount, plug-in cards that occupy two card slots in a Series 9000 card chassis. The units operate on 6VDC from the chassis power supply.

  • Page 10: 9432Dt Indicator, Connector And Dipswitch Locations And Function

    9432DT Indicator, Connector, and Dipswitch Locations and Function IGURE 1. LED INDICATORS a) SYNC: Green LED, illuminates when the local data demux is in sync with the incoming received optical signal. b) LOOP: Green LED, illuminates when the remote data demux is in sync with the received optical signal transmitted by the local unit.
  • Page 11 5. AUDIO/DATA INTERFACE OPTION MODULE CONNECTORS See the separate Audio/Data Option Module Installation and Operation Manual. 6. DATA INTERFACE CONFIGURATION DIPSWITCH This ten-position dipswitch allows the user to select the desired data interface compatibility of the configurable input on the “DATA” port. 7.

  • Page 12: 9432Dr Indicator, Connector And Dipswitch Locations And Function

    2. OPTICAL PORT: The optical fiber cable connector is connected to this port for transmission of the optical signal to the 9432DT mux/transmitter. 3. VIDEO OUTPUT CONNECTORS (FOUR): Compatible with BNC connected coaxial cables, these connectors output the four video input signals.
  • Page 13 6. DATA INTERFACE CONFIGURATION DIPSWITCH: This ten-position dipswitch allows the user to select the desired data interface compatibility of the configurable input on the “DATA” port. 7. AUDIO/DATA INTERFACE OPTION MODULE LOCATIONS: The audio/data option modules are installed here.

  • Page 14: 9432Dt/9432Dr Configuration And Connection Guide

    Data Source B Data Destination B To install, connect the video inputs to the 9432DT, connect the video monitors or other video receptors to the 9432DR, and connect an appropriate optical fiber between the 9432DT and 9432DR optical ports. Connect data signal sources or destinations, as required, to the “DATA” and “RS485” ports per the following Built-In Data Connection section.

  • Page 15: Built-In Data Connection

    Built-In Data Connection There are two port interfaces on the 9432DT and 9432DR, the “DATA” port and the “RS485” port. The “DATA” port supports two data channels, one a full-time RS232 channel and the other a configurable data channel that is dipswitch programmable for RS422, RS485 2- or 4-wire, or Manchester operation. Both channels are implemented via the RJ45 connector marked “data”...
  • Page 16 9432D Data Port (RJ45) 9432D (T or R) Data Port (RJ45) Simplex RS422 or Manchester Duplex RS485 2-Wire Connection 2-Wire Connection TX (+) 9432DT (Camera End) TX (-) RX (+) 1 or 8 Shield RX (-) (Arrows Indicate Signal Direction)
  • Page 17 9432D (T or R) RS485 Port (RJ12) 9432D RS485 Port (RJ12) Duplex RS485 2-Wire Connection Simplex RS485 2-Wire Connection TX (+) 3 or 4 9432DT (Camera End) TX (-) 2 or 5 RX (+) 1 or 8 Shield RX (-)
  • Page 18 Operation of the 9432DT and 9432DR Operation is straightforward. Connect per the directions in the Configuration and Connection Guide section on page 6.

  • Page 19: Operation Of The 9432Dt And 9432Dr

    Operation of the 9432D with the Network Management System Operation of the 9432DT with the Network Management System consists of the following parameters: 1. Slot Number 2. Card Name (Model Number) 3. Serial Number 4. Time 5. Wavelength 6. Revision Number 7 .

  • Page 20: Specifications For The 9432Dt And 9432Dr

    Specifications for the 9432DT and 9432DR Optical, by Model Number, for Complimentary T/R Pairs Model Pair MM 08 13 MMH 13 15 SM 1313 SM 1315 SMH 1513 Fiber Size 62.5/125 09/125 09/125 09/125 09/125 Transmitter Optical Output Power (dBm) –5...
  • Page 21 Data Transmission by Port Data Port Connector RJ45 Function RS232 plus switch-selectable RS422 or RS485 Data Rate DC to 115.2 kbps RS485 Port Connector RJ12 Function RS485 Data Rate DC to 115.2 kbps Option Module Ports See separate Audio/Data Option Module Installation and Operation Manual Data Rate DC to 115.2 kbps...
  • Page 24 12920 Cloverleaf Center Drive • Germantown, MD 20874 • USA Main: +1 301.444.2200 • Fax: +1 301.444.2299 U.S. Toll Free: 800.293.4237 Optelecom-NKF B.V Zuidelijk Halfrond 4 • 2801 DD Gouda • The Netherlands Telephone: +31 182.592.333 • Fax: +31 182.592.123 Email: optelecom@optelecom-nkf.com • Website: www.optelecom-nkf.com...
