Gorilla 7007 Operating Manual

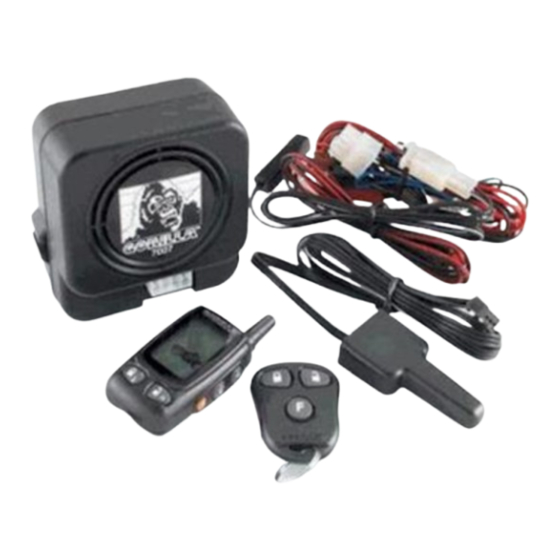

Remote control motorcycle alarm system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Gorilla Cycle Alarm
Gorilla Cycle Alarm
with 2-way pager system
2-way pager system
Remote Control Motorcycle Alarm System
Installation & Operation Instructions
Sistema de Alarma de Motocicleta de Control
Remoto Instrucciones de Instalación y Operación
Syetéme D'alarme Délécommande pour Motocyclettes
Instructions D'installation et de Fonctionnement
MODELS
7007
7017
1017
© 2005 Gorilla Automotive

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7007 and is the answer not in the manual?

Questions and answers

Related Manuals for Gorilla 7007

Summary of Contents for Gorilla 7007

  • Page 1 1017 2-way pager system Remote Control Motorcycle Alarm System Installation & Operation Instructions Sistema de Alarma de Motocicleta de Control Remoto Instrucciones de Instalación y Operación Syetéme D’alarme Délécommande pour Motocyclettes Instructions D’installation et de Fonctionnement © 2005 Gorilla Automotive...
  • Page 2 The Alarm Instructions are divided into 2 sections Section 1 Covers the Gorilla Cycle Alarm Part # 7007/7017 Section 2 Covers the Gorilla 2-way pager system Part # 7017/1017...
  • Page 3 Your Gorilla Remote Control motorcycle alarm was carefully packaged at the factory, however we recommend that you closely examine the contents to be sure that all parts are included. If a part is missing, call the Gorilla Installation Helpline at (800) 262-6267 , and a replacement part will be sent.
  • Page 4 Section 1 Gorilla Cycle Alarm - Part # 7007 / 7017 Alarm Unit Installation IAGRAM Find a place on the motorcycle where you can mount the alarm unit using either hook and loop strips, wire ties or the mounting bracket.

  • Page 5: Programming The Alarm

    Second Remote Transmitter. You will hear 3 Chirps. After programming your Remote Transmitter(s) you must wait 10 seconds to exit programming mode. The Gorilla alarm in now programmed. NOTE: The alarm unit will accept a maximum of 3 codes.

  • Page 6: Alarm Operation

    Alarm Operation 1. Press the transmitter button once to arm the alarm. You will hear one (1) chirp. 2. Press button once to disarm your alarm. You will hear two (2) chirps. When four (4) chirps are heard, it is a signal that your alarm has been activated in your absence.
  • Page 7 Mounting the Tilt Sensor The tilt sensor protects your motorcycle by activating the alarm when the motorcycle is lifted from the side stand to the upright or riding position. 1. Plug the female tilt sensor lead into the male connector from the main alarm harness.
  • Page 8 Important: Each sensor (TILT, SHOCK, CURRENT) has a 5 second delay. It is Testing the Tilt Sensor suggested that you count to 10 before testing. 1. After mounting the tilt sensor you will need to check to see if it activates when your bike is moved to the riding position.
  • Page 9 LED Function Chart When your alarm has been activated, the LED Warning Light will start to flash in the programmed sequence identifying which sensor has been triggered, as shown below: No. of Flashes Alarm Mode None Alarm is disarmed Constant Alarm is armed 1 Flash Current sensor was activated...

  • Page 10: Current Sensor

    Important: Each sensor (TILT, SHOCK, CURRENT) has a 5 second delay. It is Two Stage Shock Sensor suggested that you count to 10 before testing. The purpose of the shock sensor is to sense any disturbance, jolt or impact to the motorcycle.
  • Page 11 2 0 1 1 E . 4 9 t h S t r e e t...
  • Page 12 Section 2 Programming the 2-way Pager System The Gorilla Cycle Alarm with 2-way Pager System (part # 7017) is serious protection for those that want the ability to keep track of their motorcycle’s security at all times.With the 2-way pager, every function of the alarm can be monitored on the pager’s LED screen from up to 1/2 mile away .
  • Page 13 Second Remote Transmitter. You will hear 3 Chirps. After programming your Remote Transmitter(s) you must wait 10 seconds to exit programming mode. The Gorilla alarm in now programmed. NOTE: The alarm unit will accept a maximum of 3 codes.

  • Page 14: Setting The Clock

    2-way Paging Features The paging unit is designed to alert you when either of the following sensors are activated. 5-button 2-way pager 1. Current Sensor 18 88 2. Tilt Sensor Tilt Tilt SAVE 3. Shock Sensor 4. Warn Away The alarm and 2-way paging system have a transmission range of up to 1/2 mile.

  • Page 15: Setting The Vibration Mode

    5-Button Pager Screen Lamp: To illuminate your pager screen. STEP 1 Press and hold the set button for 1 second. The screen will stay illuminated for 5 seconds. Setting the Vibration Mode: The pager unit will vibrate when the system is triggered instead of sending audio tones.
  • Page 16 2 0 1 1 E . 4 9 t h S t r e e t...
