EN

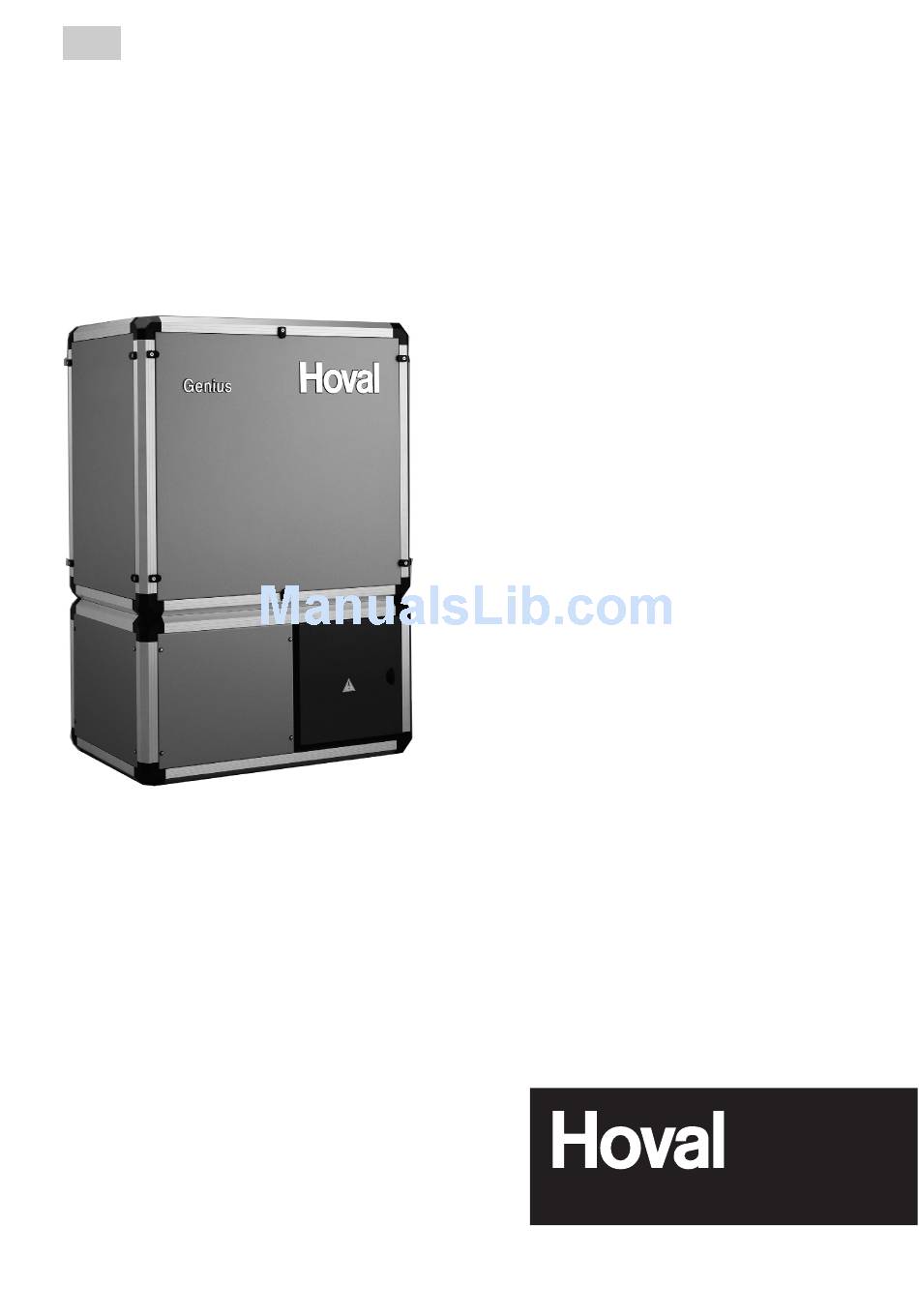

Operating instructions

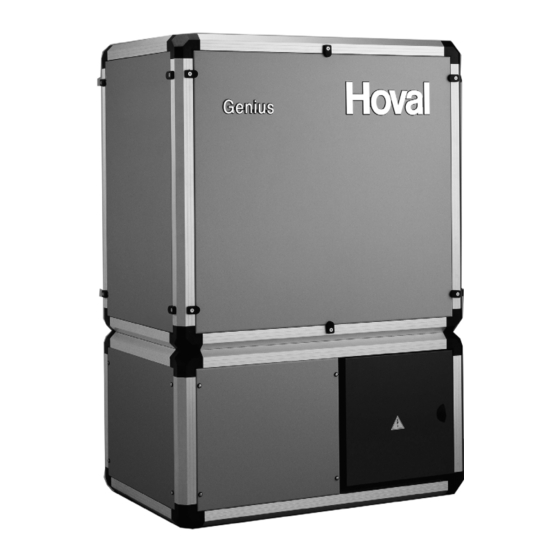

Air/ Water Heat Pump
Genius
(06-35)
®
Genius
Compact (07)
®
Hoval United Kingdom
Hoval LTD
Northgate
Newark
Nottinghamshire NG24 1JN
Phone: +44 1636 67 27 11
Fax: +44 1636 67 35 32
Hoval Export
Hovalwerk AG
Austrasse 70
9490 Vaduz
Principality of Liechtenstein
Phone: +423 399 24 00
Fax: +423 399 26 18
4 204 745 / 01 - 07/07
Subject to modifications
Advertisement
Table of Contents
Related Manuals for Hoval Genius (06-35)
Summary of Contents for Hoval Genius (06-35)
-
Page 1: Operating Instructions
Operating instructions Air/ Water Heat Pump Genius (06-35) ® Genius Compact (07) ® Hoval United Kingdom Hoval LTD Northgate Newark Nottinghamshire NG24 1JN Phone: +44 1636 67 27 11 Fax: +44 1636 67 35 32 Hoval Export Hovalwerk AG Austrasse 70... -
Page 2: Table Of Contents
4 204 745 / 01 Important Addresses........................3 Safety Instructions ........................4 Heater Control ........................5-35 Operator and Display Elements What is the control TopTronic T used for? ......................5 ® Function of the Operator Elements ........................6 Basic Procedures for Altering Settings ......................6 What to do if ..............................7 Heat Pump Control Operator Elements ......................8,10 The Most Important Settings... -
Page 3: Important Addresses
Important Addresses 4 204 745 / 01 Dear Customer Important Addresses and The Hoval Heat Pump Thermalia ® Telephone Numbers Genius ® is an excellent choice. They offer all the advantages of a modern Heating Installer _____________________________________ and efficient heating system. Please... -
Page 4: Safety Instructions
Safety Instructions 4 204 745 / 01 Safety Instructions Installation and service work on heat pumps may be dangerous due to high pressures, electrically conductive com- ponents and the mounting location. As such, heat pumps may only be in- stalled, commissioned or maintained by trained and qualified service personnel. -
Page 5: Heater Control
Consciously switching on/off the heater based on the current weather conditions is one of the most effective en- ergy saving measures. Hoval also offers remote controls which allow you to control and adjust your heater from the comfort of your living room, without having to go to the basement or boiler room. -
Page 6: Function Of The Operator Elements
Heating Control 4 204 745 / 01 Function of the operating elements The central rotary push-button and the labelled keys are designed for easy and straightforward operation. Rotary push-button: Change and store values Function keys Function keys Basic procedure for changing settings An example Select the desired function... -
Page 7: What To Do If
Heating Control 4 204 745 / 01 What to do if... The following information can be used as a first level support in frequently occurring situations. Observation Remedy It is too cold Set a higher value for the room temperature with the rotary push-button (page 11). -
Page 8: Heat Pump Control Operator Elements
Heating Control 4 204 745 / 01 Heat Pump Control Operator Elements Key to Symbols Function Ι ON - Heat Pump working 1. ON/OFF Mains Switch OFF - Heat Pump not working Attention: No Frost Protection Function Key for altering the desired room temperature during the day . - Page 9 Heating Control 4 204 745 / 01 Key to Symbols Function . Key for - Consulting temperature and operating hours System Information - Returning to the basic display without saving the selected value is also possible at any time using this function key. For more information, see pages 33, 34 .
- Page 10 Heating Control 4 204 745 / 01 Key to Symbols Function 9. Key for Manual Operation This key does not apply to heat pumps Emission Measurement On the basic display screen, the day, date and time as well as the cur- 10.
-
Page 11: Changing Room Temperature
Heating Control 4 204 745 / 01 Main settings Changing the room temperature Setting the daytime room temperature Basic display If you have a room console, you MO. 16. AUG. ' 04 can configure the settings on it. 14: 0 0 62. - Page 12 Heating Control 4 204 745 / 01 Setting the reduced (night time) temperature Basic display If you have a room console, you can con- MO. 16. AUG. ' 04 figure the settings on it. 14: 0 0 62. 5 Tap the “Reduced room temperature” key. The night time room temperature If “MC1”...
-
Page 13: Holiday, Absence, Long-Term Decrease
Heating Control 4 204 745 / 01 Holiday, absence, long-term decrease Depending on the duration of your absence and what your requirements are in regard to comfort, there are different operating modes available for interrupting or reducing the heating. In any case you will be able to save a lot of energy and money if the rooms are not heated or less heated during your absence. -
Page 14: Setting Operating Mode
Heating Control 4 204 745 / 01 Setting Operating Mode Procedure for activating the operating modes “HOLIDAY TIL”, “ABSENT TIL” or “PARTY TIL”. Briefly press the “operating mode selection” key � � � OP. MODE The note “OP. MODE” is displayed for a short time. Then the currently active operating mode flashes on the display and AUTOMATIC a bar on the bottom of the display indicates the corresponding sym-... - Page 15 Heating Control 4 204 745 / 01 Procedure for activating the operating modes “AUTOMATIC”, “SUMMER” , “HEATING”, “RED. HEATING” and “STANDBY” Briefly press the “operating mode selection” key. � � � OP. MODE The note “OP. MODE” is displayed for a short time Then the currently active operating mode flashes on the display AUTOMATIC Set the desired operating mode by turning the “rotary push-button”...
- Page 16 Heating Control 4 204 745 / 01 Operating Mode Function AUTOMATIC Automatic regular operation according to the heating periods entered in the first switching time program Factory Settings: Heating from 06.00 am - 22.00 pm Decreased heating from 22.00 pm - 06.00 am Hot Water: 05.00 am - 22.00 pm SUMMER Hot water only...
-
Page 17: Changing Switching Times
Heating Control 4 204 745 / 01 Changing switching times (heating times) Using this function, individual switching time programs for heating and hot water production can be config- ured. After selecting the applicable circuit, the factory set standard programme (P1) can be called up and be individually overwritten. - Page 18 Heating Control 4 204 745 / 01 MO. 16. AUG. ' 04 Basic display 14: 0 0 62. 5 Press the “rotary push-button” for min. three seconds TIMEPROGRAMS “TIMEPROGRAMS” appears on the display Briefly press the “rotary push-button” to confirm the settingn TIMEPROGRAMS The letters “HC”...
- Page 19 Heating Control 4 204 745 / 01 Briefly press the "rotary push-button"” to confirm the desired day The current start time for heating flashes in the display field 0 2 4 6 8 10 12 14 16 18 20 22 24 06.
-
Page 20: Copying Switching Times
Heating Control 4 204 745 / 01 Copying switching times MO. 16. AUG. ' 04 Basic display 14: 0 0 62. 5 Press the “rotary push-button” for min. three seconds TIMEPROGRAMS “TIMEPROGRAMS” appears on the display Briefly press the “rotary push-button” to confirm the setting TIMEPROGRAMS The letters “HC”... - Page 21 Heating Control 4 204 745 / 01 Briefly press the “rotary push-button” to confirm the selected setting Change/Exit: Each flashing setting value can be corrected and confirmed with the knob if necessary. Return to the previous step by pressing key; return to the basic display by pressing the key or �...
-
Page 22: Heating Curve (Heating Characteristic)
Heating Control 4 204 745 / 01 Heating curve (heating characteristic) The heating curve is normally preset by the installer during commissioning of the heating system. The heating curve should only be changed in small steps and over larger time intervals. Recommended settings: Floor heating: 0.3...1.0... -
Page 23: Adjusting The Hot Water Temperature
Heating Control 4 204 745 / 01 Confirm by tapping Turn further in order to set other heating circuits if necessary HEAT. CURVE 1. 0 0 Once you have made all changes, briefly tap the operating mode selection key in order to confirm the settings and return to the basic display. -
Page 24: Manual Hot Water Loading
Heating Control 4 204 745 / 01 Select the desired hot water temperature by turning the “rotary push- button - Setting Range 10..65°C (Factory Setting 60°C) The selected hot water temperature flashes on the display 63. 0 Briefly press the “desired hot water temperature” key to confirm the set temperature Manual hot water loading Outside of hot water operational readiness periods, the hot water heater can be manually reloaded within... -
Page 25: Domestic Hot Water Economy Temperature (Reduced Temperature)
Heating Control 4 204 745 / 01 Domestic hot water economy temperature (reduced temperature) MO. 16. AUG. ' 04 Basic display 14: 0 0 62. 5 Hold down the “rotary push-button” for three seconds TIMEPROGRAMS “Timeprograms” appears on the display Turn the “rotary push-button”... - Page 26 Heating Control 4 204 745 / 01 Set the desired temperature by turning and then confirm by tapping Once you have made all changes, briefly tap the operating mode selection key in order to confirm the settings and return to the basic display.
-
Page 27: Setting The Clock
Heating Control 4 204 745 / 01 Further settings Setting the clock MO. 16. AUG. ' 04 Basic display 14: 0 0 62. 5 Press the “rotary push-button” for three seconds TIMEPROGRAMS "Timeprograms" appears on the display Turn the “rotary push-button” further TIME - DATE Until “Time-Date”... -
Page 28: Setting The Date
Heating Control 4 204 745 / 01 Set the desired time by turning the “rotary push-button” and then confirm by tapping By turning the “rotary push-button” button, additional settings can be entered Setting the date YEAR “Year” appears - confirm 2004 Change year by turning - confirm DAY. -
Page 29: Setting The Language
Heating Control 4 204 745 / 01 Setting the language The desired language will be asked when the control system is turned on for the first time. It is possible to change the language dur- ing operation, however. MO. 16. AUG. ' 04 Basic display 14: 0 0 62. -
Page 30: Reloading The Standard Switching Times Program - Deleting The Own Time Program
Heating Control 4 204 745 / 01 Reloading the standard switching times program - Deleting the own time program Using this function, you can restore all factory pre-settings Basic display MO. 16. AUG. ' 04 14: 0 0 62. 5 Hold down the “rotary push-button”... - Page 31 Heating Control 4 204 745 / 01 Confirm by tapping RESET “RESET” appears on the display Hold down the “rotary push-button” for three seconds RESET RESET " " OK appears as confirmation on the display Once you have made all changes, briefly tap the operating mode selec- tion key in order to confirm the settings and return to the basic display.
-
Page 32: Fault Reports
Heating Control 4 204 745 / 01 Fault Reports Example for sensor alarm messages FLOW (short circuit or interruption) Error code 10-20 and index 0 or 1 ERROR 12-0 Example for heat generator alarm HEAT GENER. messages (switching status) Error code 30-40 and index 2-5 ERROR 30-2 Example for logical alarm messages... -
Page 33: System Information
Heating Control 4 204 745 / 01 System information Information key for system temperatures and heating circuit information Actual Values turn to left turn to right Heat generator OUTSIDE STARTS starts (stage 1) Outside temperature 0 ST-1 Heat generator HEAT GENER Heat generator OPER. -
Page 34: Special Symbols
Heating Control 4 204 745 / 01 Special symbols MO. 16. AUG. ' 04 Ice crystal symbol: Frost protection activated 14: 0 0 62. 5 Umbrella symbol: MO. 16. AUG. ' 04 Summer disconnection active (heating switched off, DHW according to pro- 14: 0 0 62. -
Page 35: Optional Accessories
Heating Control 4 204 745 / 01 Optional accessories Room station RS-T The Room station RS-T offers additional operating convenience through de- centralised monitoring and intervention options, since every heating circuit can be assigned with its own individual room station. Moreover, the central unit contains various control and regulating functions which can only be activated in conjunction with a room station. -
Page 36: Plant Control - Internal Electric Panel
Plant Control - Internal Electric Panel 4 204 745 / 01 Internal Electric Panel(e) Control Switch (g) The control switch (g) must always be on and should only be turned of for service. Pos. „1“ The control module (f) is on. Pos. -
Page 37: Control Modul Type Ram 100A
Plant Control - Internal Electric Panel 4 204 745 / 01 List of Parameters Control Module type RAM110A Para- Factory meters Settings Basic Display* Settings* Defrosting Method Settings Ventilator Settings Flow Time (min.) Return Time (min.) Ventilator, Defrosting Mode Defrosting Settings 1 Selection Button for Display (user mode) or for Re-Engage Timer... -
Page 38: Troubleshooting
Request service Compressor noise Request service Whistling expansion valve Request service Compressor loses oil System leak Request service Water loss Defective inlet or outlet connections Request service In case of recurrence please call your heating installer or Hoval customer service. -
Page 39: Maintenance / Service
Your installer will be happy to advise you. Hoval service is recommended for the fol- lowing work either as individual jobs or in a service agreement: Inspection of: Heat Pump, Hot Water Heater (Boiler), Regula- tor Unit and Circulation Pump. - Page 40 4 204 745 / 01...
- Page 41 4 204 745 / 01...
- Page 42 Northgate Newark Nottinghamshire NG24 1JN Phone: +44 1636 67 27 11 Fax: +44 1636 67 35 32 Switzerland Hoval Herzog AG General-Wille-Strasse 201 CH-8706 Feldmeilen Telefon +41 44 925 61 11 Telefax +41 44 923 11 39 Germany Hoval (Deutschland) GmbH...
