Summary of Contents for Johnson Vintage 60R

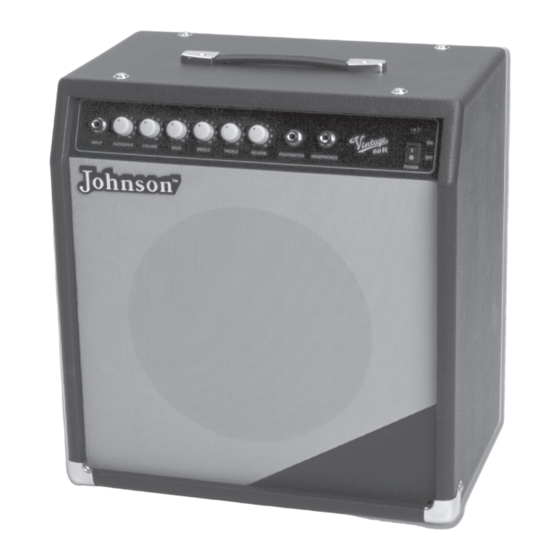

- Page 1 INSTRUCTION MANUAL Vintage 60R MODEL: Vintage Series Guitar Amplifi er...
-
Page 2: Panel Functions
INTRODUCTION Thank you for choosing this Johnson amplifier. Please read this manual carefully and completely before operating your new amplifier. PANEL FUNCTIONS ����� ����� � � � � � � � � � �� �� �� ��� ����� ��������� ������... - Page 3 REVERB CONTROL Used to adjust the level of reverberation/reflection effects. FOOTSWITCH JACK Used to connect a single button footswitch for remote ON/OFF control of the internal Spring Reverb effect. HEADPHONE JACK Used for private listening. Uses a 1/4” jack connector. (Speaker disengaged when headphone jack is in use.) POWER ON/OFF INDICATOR LED glows when the unit is turned on...
-
Page 4: Suggested Settings
SUGGESTED SETTINGS Lo-Volume Distortion for Practice Rock Metal Jazz Rhythm Punk Clean... -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS POWER SUPPLY 110/115VAC/50Hz~60Hz POWER OUTPUT: 60 watts RMS @ 8 ohms LOAD IMPEDANCE: 8 ohms INTERNAL SPEAKER: 12” in diameter INPUT: 1/4” Mono Jack OUTPUT: 1/4” Mono Jack FOOTSWITCH: 1/4” Mono Jack DIMENSIONS: 17 1/4”(W) x 18 1/2”(H) x 11”(D) WEIGHT (approx.): 35 lbs. - Page 6 PRECAUTIONS POWER SOURCES This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. INSERTION WARNING Never place objects of any kind into this product as they may touch dangerous voltage points or short-out parts that...
-
Page 7: Safety Precautions
SAFETY PRECAUTIONS WARNING CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS AMPLIFIER TO RAIN OR MOISTURE. DANGEROUSLY HIGH VOLTAGE IS PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. This symbol warns the user of danger- ous voltage levels localized within the enclosure. - Page 8 WARRANTY INFORMATION This amplifier is warranted, to the original Purchaser, to be free from defects in material and workmanship for a period of five (5) years from the original retail purchase. This warranty is valid in North America only. The manufacturer shall, at its option, either repair or replace the defective product if the product is returned to the original place of purchase.
