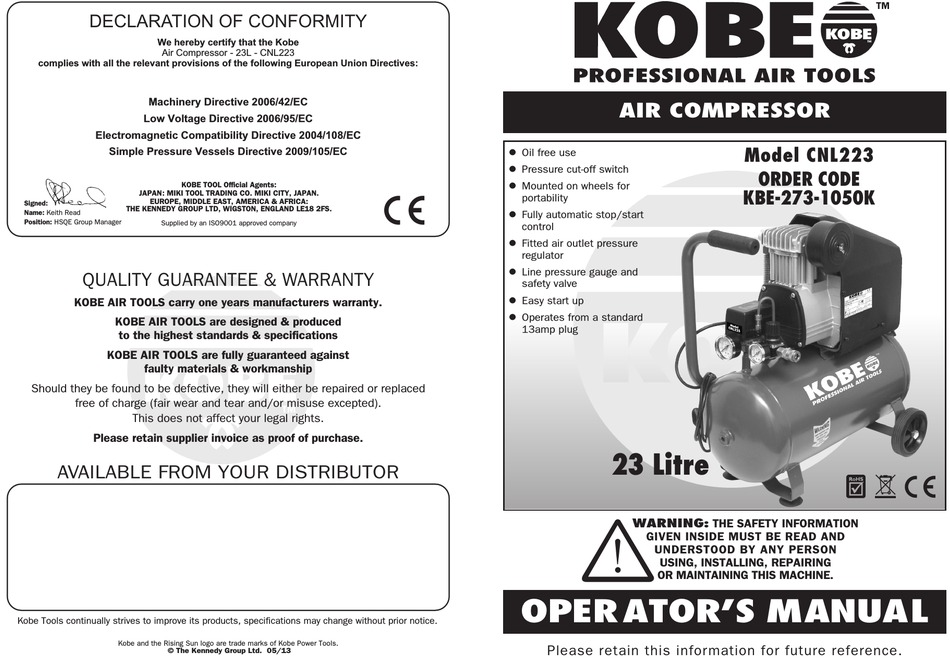

DECLARATION OF CONFORMITY
We hereby certify that the Kobe
Air Compressor - 23L - CNL223
complies with all the relevant provisions of the following European Union Directives:
Machinery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
Electromagnetic Compatibility Directive 2004/108/EC
Simple Pressure Vessels Directive 2009/105/EC
KOBE TOOL Official Agents:
JAPAN: MIKI TOOL TRADING CO. MIKI CITY, JAPAN.
EUROPE, MIDDLE EAST, AMERICA & AFRICA:
Signed:
THE KENNEDY GROUP LTD, WIGSTON, ENGLAND LE18 2FS.
Name: Keith Read
Position: HSQE Group Manager
Supplied by an ISO9001 approved company
QUALITY GUARANTEE & WARRANTY
KOBE AIR TOOLS carry one years manufacturers warranty.
KOBE AIR TOOLS are designed & produced
to the highest standards & specifications
KOBE AIR TOOLS are fully guaranteed against
faulty materials & workmanship
Should they be found to be defective, they will either be repaired or replaced
free of charge (fair wear and tear and/or misuse excepted).
This does not affect your legal rights.
Please retain supplier invoice as proof of purchase.
AVAILABLE FROM YOUR DISTRIBUTOR
Kobe Tools continually strives to improve its products, specifications may change without prior notice.
Kobe and the Rising Sun logo are trade marks of Kobe Power Tools.
© The Kennedy Group Ltd. 05/13
AIR COMPRESSOR
l Oil free use
l Pressure cut-off switch
l Mounted on wheels for
portability
l Fully automatic stop/start
control
l Fitted air outlet pressure
regulator
l Line pressure gauge and
safety valve
l Easy start up
l Operates from a standard
13amp plug
23 Litre
WARNING: THE SAFETY INFORMATION
OPER ATOR'S MANUAL
GIVEN INSIDE MUST BE READ AND
UNDERSTOOD BY ANY PERSON
USING, INSTALLING, REPAIRING
OR MAINTAINING THIS MACHINE.
Please retain this information for future reference.
Model CNL223
ORDER CODE
KBE-273-1050K
Advertisement
Summary of Contents for KOBE CNL223
-
Page 1: Air Compressor
USING, INSTALLING, REPAIRING OR MAINTAINING THIS MACHINE. Kobe Tools continually strives to improve its products, specifications may change without prior notice. Please retain this information for future reference. Kobe and the Rising Sun logo are trade marks of Kobe Power Tools. - Page 2 The use of other than genuine Kobe replacement parts may l Always ensure the electric cable is not damaged has been released from the receiver tank before result in safety hazards, decreased tool performance and increased maintenance.
- Page 3 COMPONENTS KOBE The compressor has The motor windings have Contact your local Kobe agent. Fig.1 Fig. 2 stopped, does not start. burnt out. The motor does not start The capacitor has burnt Replace the starter capacitor.
- Page 4 OPERATION MAINTENANCE KOBE KOBE P R O F E S S I O N A L P R O F E S S I O N A L AIR TOOLS AIR TOOLS PLEASE NOTE: This air compressor is not designed for continuous use.
