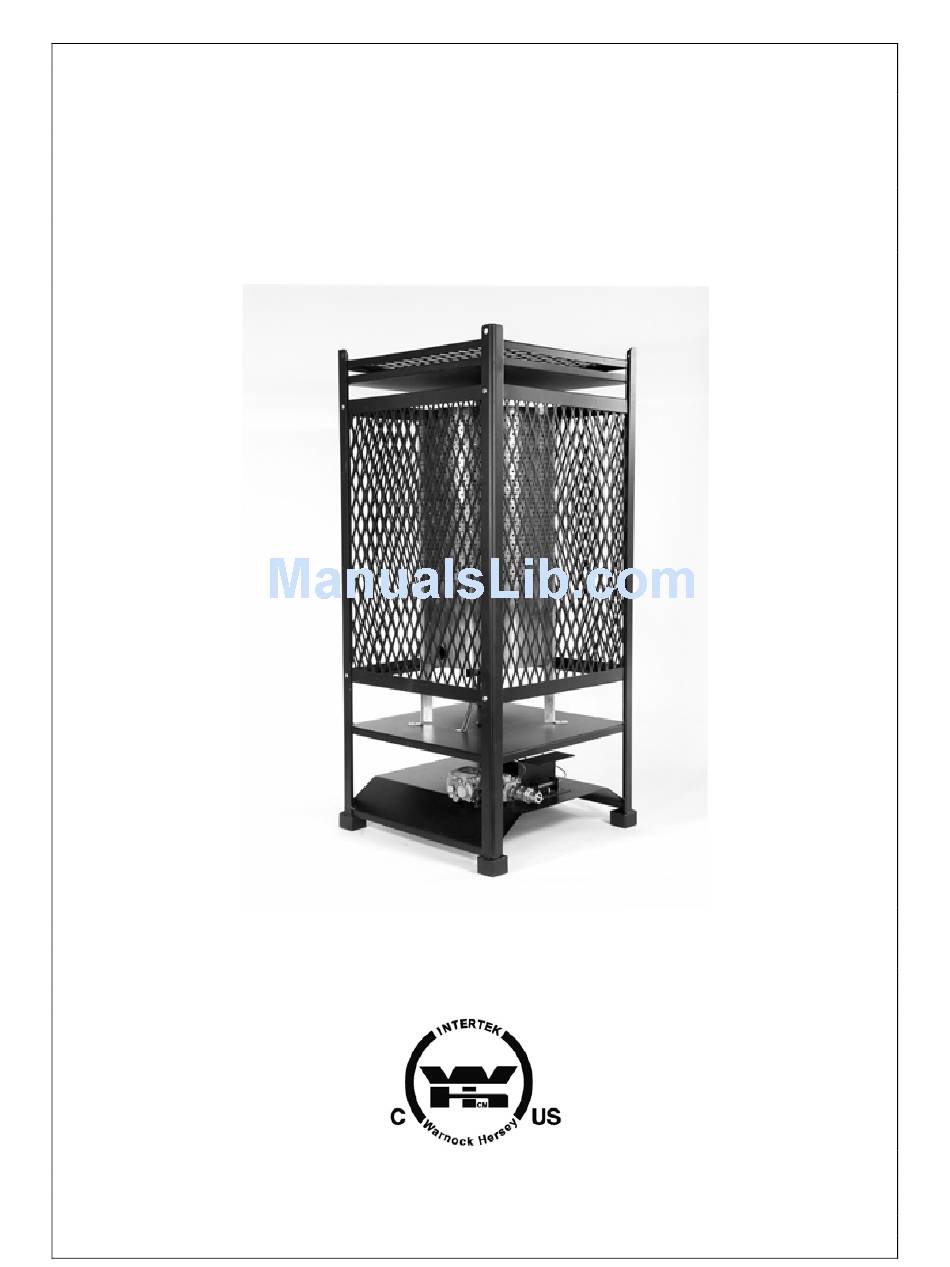

OPERATING INSTRUCTIONS MANUAL
(Please retain for future reference)
For
FRHR-100N/P RADIANT CONSTRUCTION HEATERS
CERTIFIED FOR USE IN CANADA AND U.S.A.
As per Standard ANSI Z83.7 2000/
CSA 2.14 2000 Gas Fired Construction Heaters Unvented /Unattended Type.
FLAGRO INDUSTRIES LIMITED
ST. CATHARINES, ONTARIO
CANADA
Advertisement
Summary of Contents for Flagro FRHR-100N
- Page 1 OPERATING INSTRUCTIONS MANUAL (Please retain for future reference) FRHR-100N/P RADIANT CONSTRUCTION HEATERS CERTIFIED FOR USE IN CANADA AND U.S.A. As per Standard ANSI Z83.7 2000/ CSA 2.14 2000 Gas Fired Construction Heaters Unvented /Unattended Type. FLAGRO INDUSTRIES LIMITED ST. CATHARINES, ONTARIO...
- Page 2 GENERAL HAZARD WARNING: FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK. ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER.
- Page 3 4. The hose assembly shall be visually inspected prior to each use of the heater. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the heater being put into operation. The replacement hose assembly shall be supplied by Flagro Industries Limited. Please see Parts List.
-
Page 4: Installation
INSTALLATION All natural gas heaters must be installed by a qualified gas fitter and must conform to local installation codes or, in the absence of local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA 54 and the Natural Gas and Propane Installation Code, CSA B149.1. -
Page 5: Lighting Instructions
LIGHTING INSTRUCTIONS 1. Ensure the heater is connected to the proper source of gas and proper inlet pressures are supplied. The heater must be installed by a qualified installer. 2. Set thermostat knob (green button) to high position. Rotate the control knob (black) counter clockwise to 'PILOT' position. -
Page 6: Correct Position
IMPORTANT NOTES FOR SUCCESSFUL LIGHTING AND OPERATIONAL SAFETY 1. For safety purposes, this heater model is equipped with a “tip over switch” which will prevent the heater from operating or being lit if it is bumped, jarred, knocked over or positioned on an angle. In order to light and operate properly, this heater MUST be placed on a flat horizontal surface in an upright position. - Page 7 PARTS LIST 2009/2010 FRHR-100N/P RADIANT CONSTRUCTION HEATERS PART # DESCRIPTION LIST PRICE FRHP-01NG Gas Control Valve c/w thermostat – NG 198.00 FRHP-01LP Gas Control Valve c/w thermostat – LP 198.00 FRHP-02NG Pilot Assembly – NG 19.00 FRHP-02LP Pilot Assembly – LP 19.00...
- Page 8 FRHR-100 Parts List...
- Page 9 FRHR-100 Parts List 8, 9, 10...
- Page 10 FRHR-100 Parts List 11, 12...
- Page 11 FRHR-100 Parts List 16, 17 11, 12 19, 20...
- Page 12 FRHR-100 Parts List Accessories HOSES Item # Description Removable Screen Assy FRHP-12 SS Emitter Grid Assy FRHP-08R 3/8" Low Pressure Line FHRP-10 3/8" Flare x 3/8" MP Elbow 49-6C Gas Control Valve FRHP-01 LP/NG Green Control Knob/Black Knob FRHP-23/FRHP-19 Pilot Line FRHP-03A 122-CD/100-506 Propane QD Model...
