Merit Full MAXX Removal And Installation

OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DEVICES
Removal/Installation of Motherboard -
1. Turn off and unplug the game.
2. Unlock and remove the lid.
3. Unscrew the 2 thumbnuts and remove the electronics box access panel at the rear of the
game. You will need to unplug the 2 fan power connectors in order to completely remove the
panel. Also remove the black plate along the bottom of the game. See Figure 1.
4. Use the Motherboard Diagrams section to determine the board type in your game, then dis-
connect all connections to the board. NOTE: Be sure to read the Motherboard Handling
Precautions before handling the board.
5. Remove the 4 nuts on the monitor side of the electronics box and remove the motherboard.
Insert the board into an anti-static bag for storage.
1. Place the new motherboard in the game and secure it with the 4 nuts.
2. Reconnect all connections to the motherboard.
3. Replace the back plate along the bottom of the game, then reconnect the 2 fan power connec-
tors and replace the electronics box access panel. Secure the panel with the 2 thumbnuts.
See Figure 1.
4. Replace and lock the lid.
5. Plug in and turn on the game.
THUMBNUTS
(BOTH SIDES)
ELECTRONICS
BOX ACCESS
PANEL
BACK PLATE

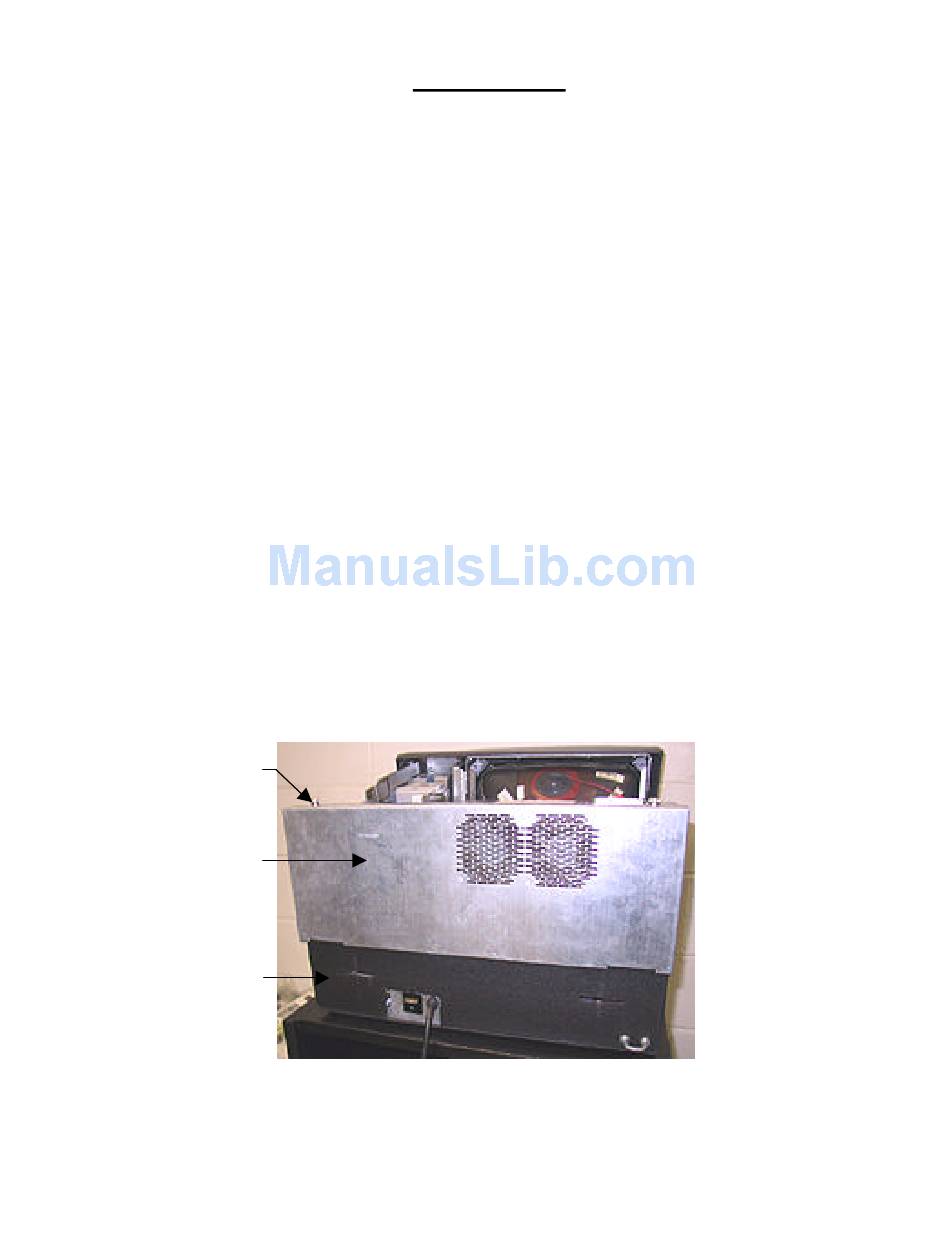

FIGURE 1 - FULL MAXX - REAR OF GAME WITH LID REMOVED
Troubleshooting Information - Removal/Installation of Motherboard -
Megatouch FORCE Technical Reference Manual
