Summary of Contents for flexmedia V737
-

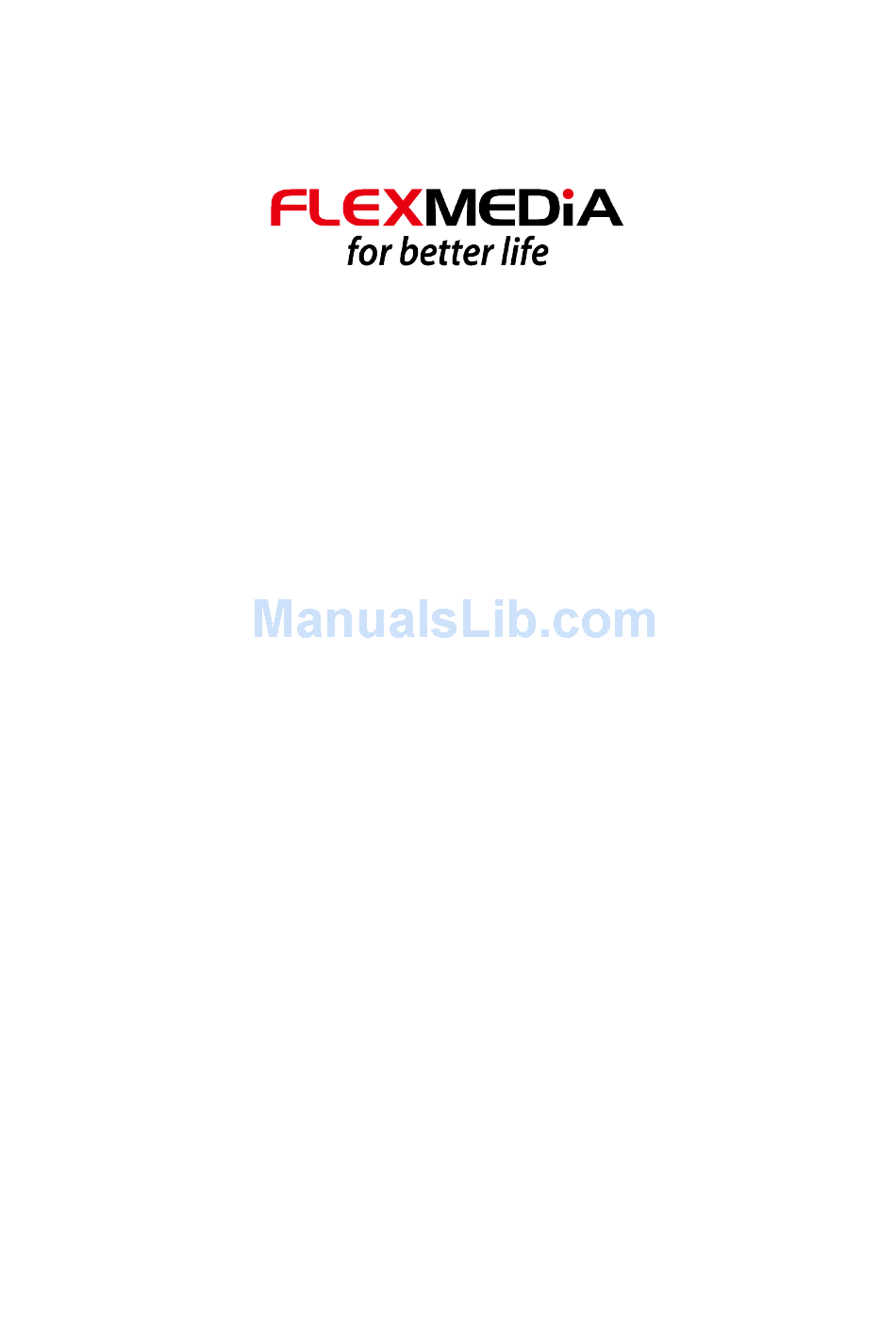

Page 1: User Manual
User Manual V737 V737W V747 V747W Designed by Flexmedia in Taiwan... -
Page 2: Table Of Contents
Table of Contents Important Instructions ................3 Package Checklist ................... 5 Drive Recorder Layout ................6 Using Memory Cards ................7 Using V737/V737W/V747/V747W ............7 LED Indicators ..................8 Menu ..................... 8 Installation of Holder ................13 USB Connection ................... 15 Recording Screenshot ................ -
Page 3: Important Instructions
The video recorded should not be used for illegal purposes, Flexmedia is not responsible for any illegal use of the video recorded. Flexmedia does not guarantee that the recorded video can be used in court for legal purposes. - Page 4 Flexmedia only provides warranty services for the drive recorder. It is recommended that the mounting bracket to be checked constantly to avoid falling during driving.
-
Page 5: Package Checklist
To reduce the risk of fire or shock hazard, do not expose this equipment to rain, any liquid or moisture. Flexmedia shall have no obligation to repair, replace or refund until the customer returns the defective product to Flexmedia. -
Page 6: Drive Recorder Layout

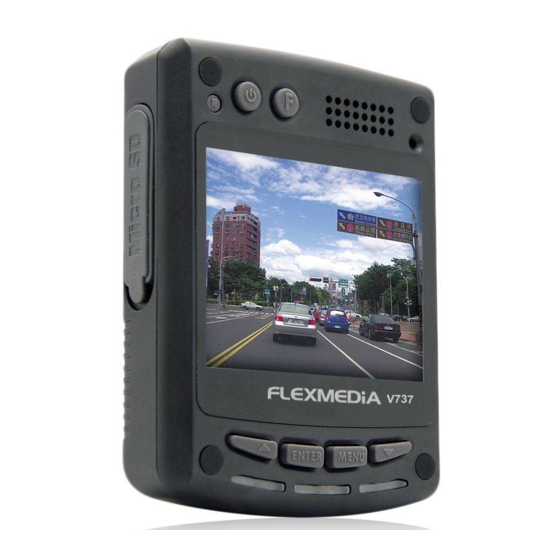

Drive Recorder Layout *Using V747W as example, V7xx series has same keys and IOs. 1. Reset 7. microSD Socket 13. Power Indicator 2. On/Off 8. Up/Reverse 14. Error Indicator 3. Playback 9. Enter/Record 15. USB 4. Speaker 10. Menu 16. DC-in 5. -
Page 7: Using Memory Cards
To remove the memory card, push the card in until it clicks. It begins to slide out, and you can slide it the rest of the way out. Using V737/V737W/V747/V747W 1. Fasten the drive recorder to the suction holder. 2. Insert the microSD card into the card slot. NOTE: Please carefully insert the memory card with the front of the card facing the LCD. -
Page 8: Led Indicators
Under MENU mode, if the device has idled for 20 seconds, it will automatically go back to recording mode. Resolution Using /button to select and press Enter button. (Full HD) 1920 x 1080 @30fps (V747/V747W only) (HD) 1280 x720 Pixels@30fps (WVGA) 848 x 480 pixels@60fps (V737/V737W only) - Page 9 Quality Choose between HQ and LQ. The difference between HQ and LQ is the bit rate. Full HD: HQ (12Mbps) & LQ (9Mbps), HD: HQ (8Mbps) & LQ (4Mbps) Date / Time 1. Press the menu button 2. Using button to select MENU and press Enter button. 3.
- Page 10 Screen Saver Using /button to adjust the setting, the setting can be changed from 0, 30, or 60 seconds. Setting “0” indicates the screen saver mode is switched off. The LCD will remain switched on, but to save power, the device will automatically reduce the brightness of the screen when the unit is idle for 3 minutes.
- Page 11 ‘*’ stands for space. This is suitable for business-use owner to identify which car the video is shot from. Image Type The video displayed on the screen can present the watermark in accordance with the options you set. ON：display FLEXMEDiA Logo, product name, recording date and...
- Page 12 Number Plate：display number plate, recording date and time. The logo is replaced by number plate. OFF：no watermark Version Display the current firmware version of the device. Check www.flexmedia.com.tw to download the most updated firmware. Default(For V747W only) Select "Yes" to change all settings to factory default.
-
Page 13: Installation Of Holder
Installation of Holder Recommendation 1 Recommendation 2... - Page 14 4. Loosen “I” and adjust to the the suction holder angle of “2” 2. Press the suction holder per the 5. Please install V737 in the suction direction of arrow, and then holder per the direction of arrow press the latch. Please remove...
-
Page 15: Usb Connection
USB Connection Connect the driver recorder and PC with the provided USB cable Double click the " My computer" icon, the operating system will display drive recorder as removable disk. You can then read, write, copy, delete and remove data on the PC. ... -
Page 16: Recording Screenshot
Recording Screenshot Battery Level 12:24:12 Resolution and Rec. Lock Sensitivity Rec indicator Rec time Mic indicator Quality (V747W) Press to manually lock current recording file Press ENTER to pause recording, if no action, recording will resume after 10 seconds ... -
Page 17: Playback Screenshot
Playback Screenshot Playing 8th file Folder name／Start Rec. time Lock indicator 100-1220 0008/0101 00:01:45 Date Time Press○ F button to go to playback mode Press button to go to previous file; Hold to rewind Press ENTER to pause playback ... -
Page 18: General Information
General Information For indoor usage, it is best to mount this device from 0 to 3 meter for better camera focus. For indoor usage, it is suggested to use another source of light in the dark areas to enhance images to enable the drive recorder to detect objects and improves the detection. -
Page 19: Frequently Asked Questions
Flexmedia and its product should have no obligation for any loss, cost, damage, injury or expense of any kind use caused by Flexmedia products. Frequently Asked Questions Problem Solution The status indicator... -
Page 20: Contact Us
Contact Us Visit Flexmedia on the web Go to www.flexmedia.com.tw to download the latest firmware or the latest version of this manual. Contact Flexmedia To process a request for Technical Service, please mail the following information to service@flexmedia.com.tw 1. Model Number: 2.
