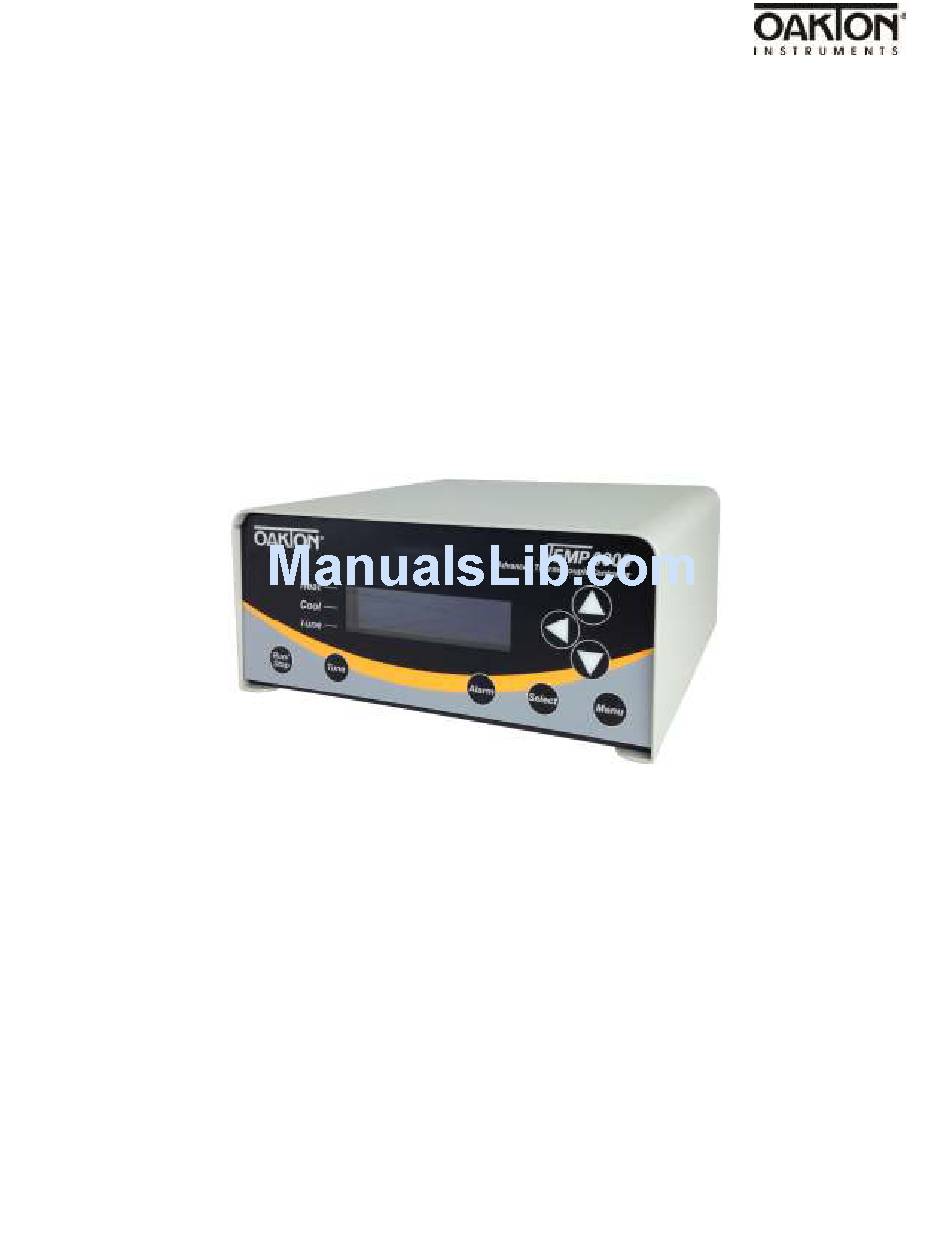

- Page 1 ® Oakton TEMP 9000 Advanced Thermocouple Controller Models: 89800-01 & 89800-02 Oakton Instruments 625 E Bunker Ct. Vernon Hills, IL 60061, USA 1-888-4OAKTON (1-888-462-5866) info@4oakton.com...
-
Page 2: Table Of Contents
Contents Safety ..........................3 General Description ...................... 4 Control Panel Description................... 4-6 How to Setup ........................ 6 Operation Setup ......................7 Menu Screens (Models 89800-01 & 89800-02) ............7-14 Temperature Scale ..................... 8 Alarms ....................... 9 Auto-Calibration Gateway ................10 Loop Break Stop ..................... -
Page 3: Safety
Safety Precautions DANGER: DO NOT REMOVE COVER! HIGH VOLTAGE IS PRESENT IN THIS CONTROL. Contact vendor for service. DANGER: If high voltage is present on external temperature sensor from out- side source, high voltage will be present at the control. DANGER: Fire protection and control damage: Replace all fuses with the cor- rect fuse replacement. -
Page 4: General Description
The control automatically sets the PID parameters through a "learning" sequence in the tune mode. PID parameters include proportional band, reset/integral, and rate/derivative. The user- friendly LED display is to aid in monitoring and setup of the control. The Oakton model: 89800-01 and 89800-02 controls automatically store all information in non-volatile memory. - Page 5 ALARM Button In an ALARM situation, the display will display either “WARNING” or “ERROR” with corresponding warning or error. A “WARNING” will not stop the control process. An “ERROR” will stop the control process. MANUAL RESET mode: Pressing ALARM once will silence the audible alarm and clear the on- screen alarm message.
-
Page 6: How To Setup
Pressing and holding UP and DOWN arrow keys will increase or decrease text entries without an acceleration factor. The LEFT arrow button allows you move backwards through the GEN- ERAL SETUP MENU (GSM) and ADVANCED SETUP MENU (ASM). While in the ASM, you can move backwards to the first ASM screen, but cannot back into the GSM. -
Page 7: Operation Setup
Operation Setup for models: 89800-01 & 89800-02 To enter the user-con igurable setup press the MENU key from the system status screen. • Use the MENU key to advance through each menu setting. • Use the UP & DOWN key to make changes in each menu setting screen. • Use the low chart (page 16 & 17) to have visual of the overall menu layout. • When all settings have been made and saved the control will return to the System Status screen. • Set the Set Point temperature by pressing the Select button one time. A line will appear • under the Set Point value. Use the Up and Down arrow keys to change the Set Point value. •... -
Page 8: Temperature Scale
Sensor Type Sensor selection screen. Use the UP & DOWN keys to change sensor type. Available sensors: Thermocouple Thermocouple Type Thermocouple type screen displayed above. This screen changes with the type of sensor selected on the previous menu screen. Selections: Range Type J: -190°C to 1000°C (-310°F to 1832°F) Range Type K:... -
Page 9: Alarms
Alarms Default mode is off. • Use arrow keys to change alarm settings. • Available selections: OFF, MANUAL RESET, and AUTO RESET. • OFF = NO ALARM • MANUAL RESET = User has to reset the alarm condition by pressing the alarm key. •... -
Page 10: Auto-Calibration Gateway
Alarm Hysteresis Use the UP & DOWN arrow keys to adjust value. • The user defined value when the alarm will exit an alarm condition. Example: User has a Pro- • cess High alarm programmed with a value of 150°C and has set the Alarm Hysteresis of 1°C. The alarm has been activated after the temperature reached 160°C. -
Page 11: Loop Break Stop
Confirmation Screen The use of a secondary calibrated temperature device is required for the calibration. • Use UP and DOWN arrow keys to adjust temperature calibration input value. • Follow instructions on the display of the control. • Sensor Offset Calibration Use the UP and DOWN arrow keys to adjust the value. -
Page 12: Control Action
Control Action Default setting is Heat. Use DOWN arrow key to change to COOL. • Control Mode Default setting is PID. Use arrow keys to change to ON / OFF. • Skip to PID settings if PID was selected in Control Mode On / Off Control Use the UP &... - Page 13 Use the UP & DOWN arrow keys to adjust value. • This is manual adjustment for the proportional band of PID. Only users with advance • knowledge of PID controller operations should attempt the manual setup. Integral Time Setup Use the UP & DOWN arrow keys to adjust value. •...
- Page 14 Run Time Use the UP & DOWN arrow keys to adjust value. • Use the Select key to change between HR and MIN. • Run Time is a safety feature while the control is in the ON / OFF or PID mode. The user can •...
-
Page 17: Advanced Setup Flow Chart
Gener al Set up M enu ENTER… Set pr obe t em p t o XXX. X Pr es s M ENU t o c al i br at e. . . Ar e y ou s ur e y ou want t o RESET…... -
Page 18: Specification Model 89800-01
Specification: Models 89800-01 120VAC ±10% 50/60Hz. ±3% 15 Amp OWER NPUT 1800 Watt MAX LOAD 0 to 90% relative humidity, non-condensing 32 to 77 F / 0 to 25 Operating Environment 2000m Maximum Altitude 2 (Normally only non-conductivity pollution occurs) Pollution Degree Local Level (Connect to branch circuit and not directly to a Installation Category II... -
Page 19: Specification Model 89800-02
Specification: Models 89800-02 230VAC +/-10% 50/60Hz. +/- 3% OWER NPUT 10 Amp 2300 Watt MAX LOAD 0 to 90% relative humidity, non-condensing Operating Environment 32 to 77 F / 0 to 25 2000m Maximum Altitude 2 (Normally only non-conductivity pollution occurs) Pollution Degree Local Level (Connect to branch circuit and not directly to a Installation Category II... -
Page 20: Sensor Input (Model: 89800-01 & 89800-02)
Sensor Input: (Model: 89800-01 & 89800-02) 1. Thermocouple (grounded or non-grounded) 2. Automatic cold junction compensation and break protection for sensor. 3. Temperature display: °F, °C, K, °Rˊe, and °Ra display; user selectable (preset for degrees Range Type J: -190°C to 1000°C (-310°F to 1832°F) Range Type K: -200°C to 1372°C (-328°F to 2502°F) Range Type N:... -
Page 21: Declarations
CE Approval UL File E207546, Vol. 1... -
Page 22: Maintenance
Warranty Oakton Instruments, for itself does hereby offer a warranty for products from the date of receipt by the user, under normal and proper usage, against defects in workmanship and materials for 12 months, and will repair or replace any defective part(s) without charge when same is shipped Pre- paid to Oakton Instruments from which the product was originally purchased. -
Page 24: Country Output Adaptors
Country Cord Adaptors Europe Part # 89800-19 Denmark Part # 89800-21 England Part # 89800-22 India Part # 89800-23 Australia Part # 89800-24... - Page 25 Country Cord Adaptors Switzerland Part # 89800-26 Italy Part # 89800-27 Israel Part # 89800-28 Part # 89800-29...
