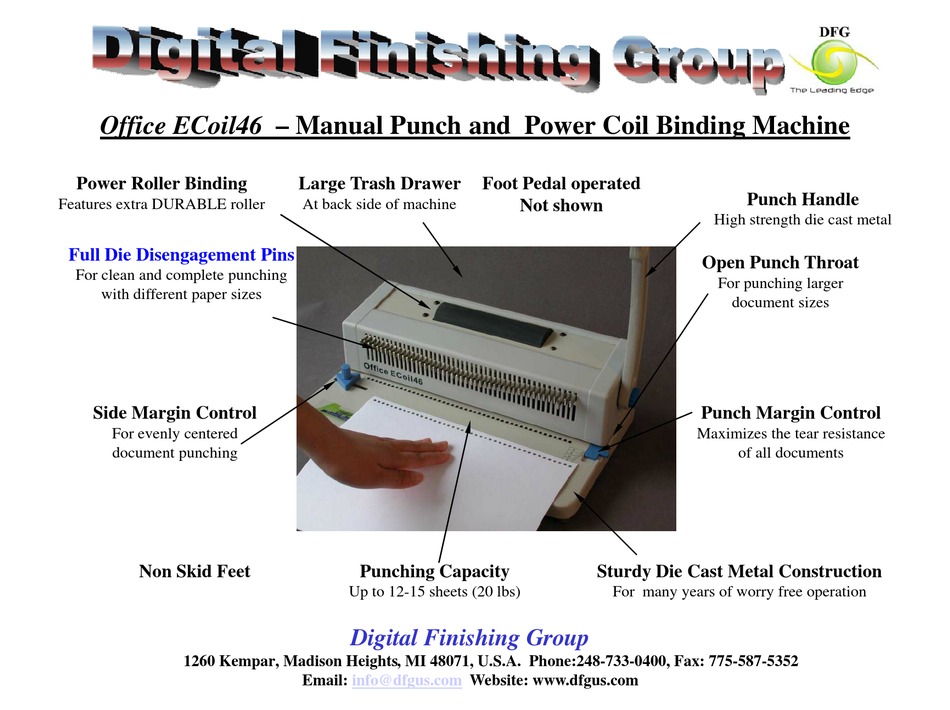

Office ECoil46 – Manual Punch and Power Coil Binding Machine
Power Roller Binding
Features extra DURABLE roller
Full Die Disengagement Pins
For clean and complete punching
with different paper sizes
with different paper sizes
Side Margin Control
For evenly centered
document punching
Non Skid Feet
1260 Kempar, Madison Heights, MI 48071, U.S.A. Phone:248-733-0400, Fax: 775-587-5352
Large Trash Drawer
At back side of machine
Punching Capacity
Up to 12-15 sheets (20 lbs)
Digital Finishing Group
Email:
info@dfgus.com
Website: www.dfgus.com
Foot Pedal operated
Not shown
Sturdy Die Cast Metal Construction
For many years of worry free operation
Punch Handle
P
h H
dl
High strength die cast metal
Open Punch Throat
For punching larger
document sizes
d
t i
Punch Margin Control
Maximizes the tear resistance
of all documents
Advertisement
Summary of Contents for Digital Finishing Group Office ECoil46
- Page 1 Office ECoil46 – Manual Punch and Power Coil Binding Machine Power Roller Binding Large Trash Drawer Foot Pedal operated Punch Handle Features extra DURABLE roller At back side of machine Not shown High strength die cast metal Full Die Disengagement Pins...
- Page 2 Warning: Do not connect this product to electrical power or attempt to operate it before you read these operating instructions and have been fully trained to operate this product. 1. Indoor use only. Do not expose to rain. 2. Keep hands, long hair, neckties, necklaces and other loose articles away from roller.
-
Page 3: Installation
Dear Customer, Thank you for purchasing our Office ECoil46 (EC46) machine. The following are basic installation and operation instruction for the EC46 machine. If you still have questions after reading this manual, please contact DFG. Installation Remove the blue knob from machine. Slide the punch handle on the exposed knob. Screw the blue knob back onto machine. - Page 4 How to Bind Books with Power Roller (up to 3/4”) 1. Manually turn the spiral coil into the first 4 or 5 holes 2. Press the foot pedal. Touch the coils against the moving roller to spin the coil through the book. (Tip - You can speed up binding by moving the book to the right side while the roller is spinning the coil through the book)
- Page 5 3. Cut and crimp the ends of the spiral coil. Right handed A. Hold pliers with red dot up, with the coil near you. B. Place pliers with jaws inside the coil, near the center. C. Close the pliers to cut the coil and keep them closed D.
-
Page 6: Specification
How to Make Books Manually for any thickness (EtitanCoil machine showed) Manually turn your coil into the book. This is a very easy process. (Tip: It will be much easier to twist the front end of coils) Cut and crimp the coils (see #3 of power roller binding) How to Determine Appropriate Coil Size There are two ways you can choose an appropriate coil size:...
