- Page 1 JT-MS-8N2 8 Channel 2 Way Microphone Splitter with Phantom Power Circuitry USER MANUAL Revision 1.0...
-
Page 2: Table Of Contents
Table of Contents Section 1 - Introduction ......... . Section 2 - Installation 2.1 Circuit Description and Jumper Settings Figure 2.1 - Schematic Diagram . -
Page 3: Section 1 - Introduction

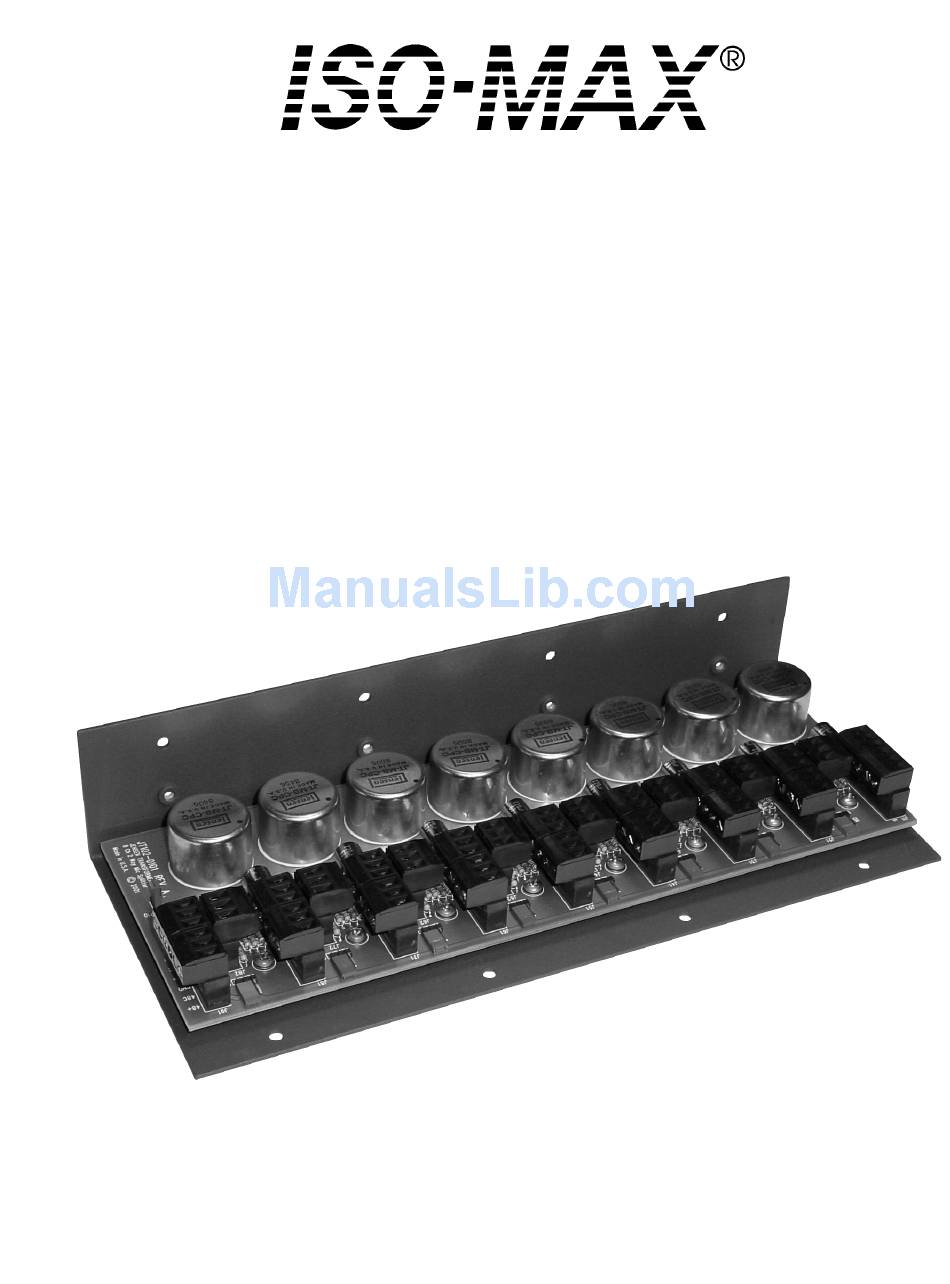

Section 1 - Introduction The Jensen JT-MS-8N2 provides 8 channels of extremely high quality 2 way microphone splitting with 48 Volt phantom power individually selectable on each channel. This functionality is provided in a compact 11.35"W x 4.75"H x 2.25"D package allowing 7 units (56 channels) to be mounted vertically on a 7U size rack panel (see Figure 2.4.1). -
Page 4: Section 2 - Installation
The schematic diagram shown in Figure 1 is representative of each of the eight channels of the JT-MS-8N2 Microphone Splitter. Reference designators for the other seven channels are determined as follows: Switch, transformer and plug reference designators correspond to the channel number, while resistor, capacitor and jack reference designators are formed by adding a digit representing the channel number ahead of the nominal part reference number. -
Page 5: Ground Lift Circuitry And Switches
2.2.2 Phantom Power Supply Connections The JT-MS-8N2 is designed to be used with a 48 Volt to 52 Volt phantom power supply. Normally, a 48 Volt supply will work fine. In some cases though, when using microphones that... -
Page 6: Input And Output Wiring
JT-MS-8N2. Stranded wire should be used if connections will be subjected to repeated movement or vibration, to prevent breakage. Under normal circumstances, the low side of the phantom power supply, 48C, is connected directly to the groundplane, GND, through the jumper at P9. -
Page 7: Mounting
Four 0.172" diameter mounting holes are provided along the bottom mounting flange and along the top edge of the JT-MS-8N2 for mounting the unit with the printed circuit board either parallel to or perpendicular to a bulkhead or wall. If the unit is mounted with the printed circuit board parallel to the bulkhead or wall, four right angle mounting brackets may be also used to attach the bottom flange to the wall for additional rigidity. -
Page 8: Electrical Specifications
Section 3 - Specifications 3.1 Electrical Specifications 3.1.1 Frequency Response (150 Ohm source, 1500 Ohm preamp load at isolated output) High Frequency -3dB Cutoff ......... . 105kHz Low Frequency -3dB Cutoff . -
Page 9: Mechanical And Environmental Specifications
3.2 Mechanical and Environmental Specifications 3.2.1 Dimensions Length ..........11.35 Inches (288.3 mm) Width . -
Page 10: Section 4 - Warranty
For a period of 1 YEAR after purchase, Jensen Transformers, Inc. will, free of charge, repair or replace any part of an ISO-MAX® product that fails due to defective materials or workmanship. For a period of 20 YEARS after purchase, Jensen Transformers, Inc. will, free of charge, repair or replace any Jensen OEM transformer or any Jensen transformer contained in an ISO- MAX®...
