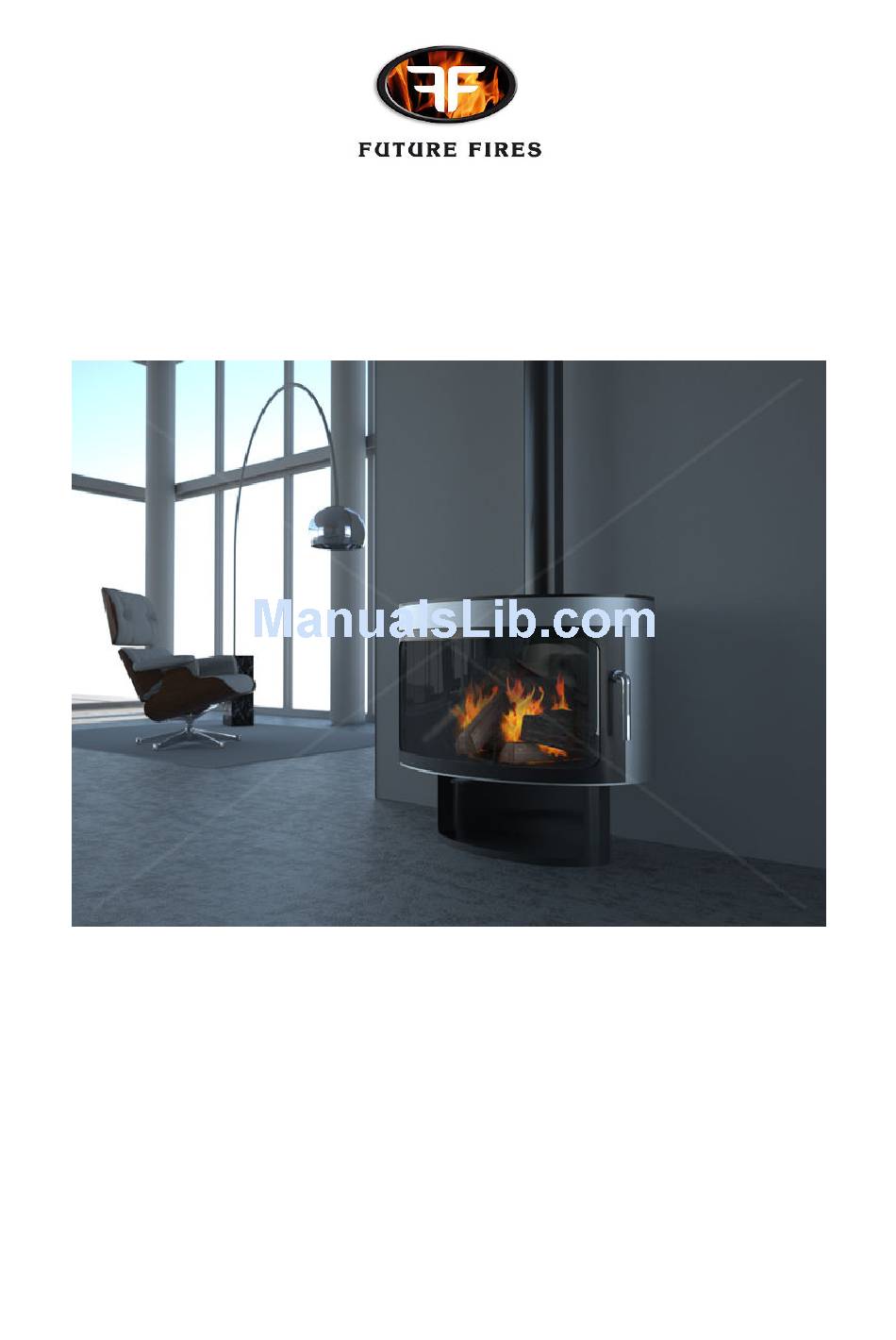

  • Page 1 FUTURE FIRES OPERATING INSTRUCTIONS PanoramicFX1...

  • Page 2: Table Of Contents

    CONTENTS INSTALLATION INSTRUCTIONS Air Access Hearth Gaps between the PANORAMICFX1 and flammable materials Flooring Load-Bearing Flue Pipe Damper Connection to the Flue MODEL PANORAMICFX1 WEIGHT 70 KG OUTPUT MAX. 8 KWs mean SPACE HEATING OUTPUT 8 KWs mean FLUE MASS GAS FLOW 7.6 MEAN Tests carried out at 12 Pa flue draught (0.048 inches WG) with doors closed...

  • Page 3: Air Access

    Sweep the chimney. Do a smoke test to check for draft and gas tightness. All installations of the PANORAMICFX1 must comply with relevant Building Regulations (eg Document J). These are available for download at http://www.planningportal.gov.uk/uploads/br/BR_PDF_ADJ_2002.pdf All local regulations, including those referring to national and European standards need to be complied with when installing the appliance.

  • Page 4: Hearth

    In the case of the PANORAMICFX1, the hearth should be of 225mm in front of the stove and 150 mm to each side measured from the door of the combustion chamber.
  • Page 5 The flue gas temperature directly downstream of the flue spigot/socket in °C, (with closed firedoors), under nominal heat output conditions is 261Degrees Centigrade There is a need to provide access for cleaning the appliance, the flue gas connector and the chimney flue.

  • Page 6: Lighting Preparation

    When ready, light the paper and ensure that the door is fully closed and locked. Do not try to run the PANORAMICFX1 with the door ajar. c) Once the wood is fully lit, then bigger pieces of wood can be added, as required.

  • Page 7: Temperature Control

    Above this temperature and the heat may cause damage to the PANORAMICFX1 and potentially cause a fire hazard with residue in the chimney. We would recommend the purchase of a wood stove thermometer to ensure that these issues are monitored and addressed.

  • Page 8: Maintenance Of The Panoramicfx1

    Store wood outside, off the ground and covered. Bringing green wood indoors to dry can • promote the growth of allergy-causing mould spores circulating indoors. Have the PANORAMICFX1 installed by a professional and have it inspected and cleaned • every year.

  • Page 9: Trouble Shooting

    The internal firebricks may need replacing overtime, but only when they have deteriorated to • the point of failing to insulate properly. If the glass is blackened with soot, it can easily be cleaned using one of the many specialist •...
