Summary of Contents for Campomatic GH3BL

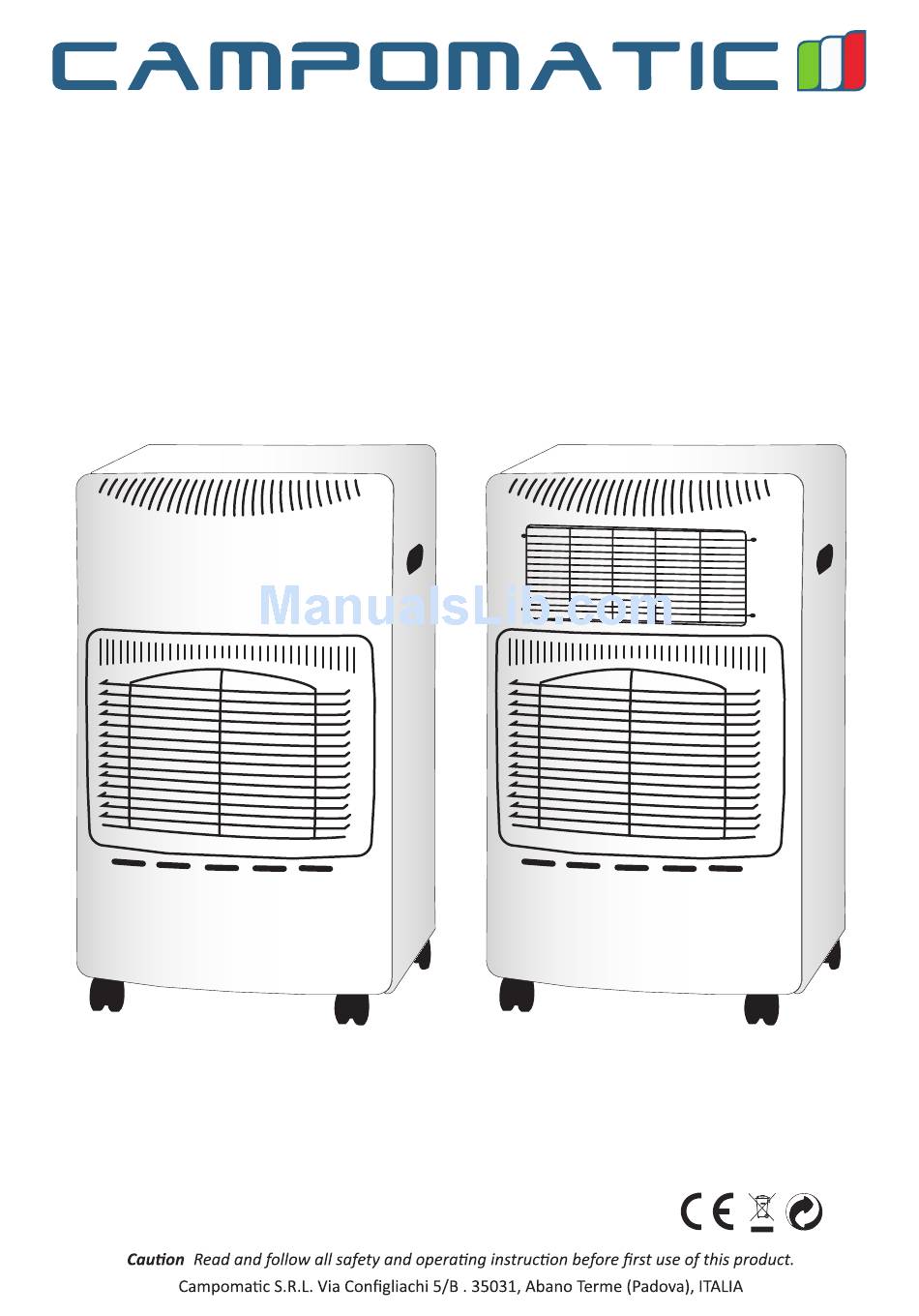

- Page 1 GH3BL / CH3EYL / GH3ERD GH3EBL / GH3EWH Gas Room Heater Made in China INSTRUCTION MANUAL WWW.CAMPOMATIC.COM...
- Page 2 Once again, let us welcome you to be the growing family of our company. We look forward to working with you in the future. Any innovation or mini changes without further notice. Model No. GH3BL,GH3EBL,GH3EYL,GH3EWH,GH3ERD Gas Heat Input 4.2kW Power GH3EBL: 220V-240V/ 50Hz.
-
Page 3: Gas Valve
1.Gas Valve 2.Gas Tap 3.Pipe 4.Gas Rcgulator 5.Protection Bafflc 6.Cylinder Installation 1.Put the cylinder into the gas heater. 2.Install the protection baffle to make sure the cylinder cannot move. 3.Connect the pipe to the gas valve with cap (make sure no leakage) 4.Connect another side of the pipe to the regulator with cap (make sure no leakage) 5. - Page 4 The pilot and center burner should remain alight. You may now adjust the heater setting to Low/Med/High as required. Turning off the heater: To turn off the heater, turn the control knob to position I and close the gas cylinder valve by turning the knob on the cylinder clockwise. Ensure that the pilot flame the center burner are extinguished.
- Page 5 Warning: Ÿ Read the instructions in the manual carefully, it has important information both for operation use and for your safety. Ÿ Do not use faulty appliances. Ÿ Maintenance and repairs must be carried out by a qualified person only. Ÿ...
- Page 6 Ÿ Periodically clean the exterior and rear cylinder, storage area of your heater to remove dust and lint built-up, which may affect operation of the heater. Ÿ Light vacuuming with a soft brush will remove any dust built-up on the surfaces of the ceramic elements.
- Page 7 3) Safety tips Ø Always leave the heater look upon the central room Ø Do not move the heater in front of it. Do not move the burning heater from one room to another. Ø Prevent people, especially young children and elderly people from touching very hot surfaces.
- Page 8 Model No. GH3BL,GH3EBL,GH3EYL,GH3EWH,GH3ERD Gas Heat Input 4.2kW Power GH3EBL: 220V-240V/ 50Hz. 1320W Gas Category I3B/P(30) Butane at (28~30)mbar/ Propane Gas Type at 37mbar Gas Pressure (28~30) mbar (28~30/ 37) mbar LU, NL, DK, FI, SE, CY , CZ, EE, LT , LV ,...
- Page 10 (GH3EBL)
- Page 12 GH3BL / CH3EYL / GH3ERD GH3EBL / GH3EWH Campomatic S.R.L. Via Configliachi 5/B . 35031, Abano Terme (Padova), ITALIA WWW.CAMPOMATIC.COM...
