Summary of Contents for iDance MiniBlue

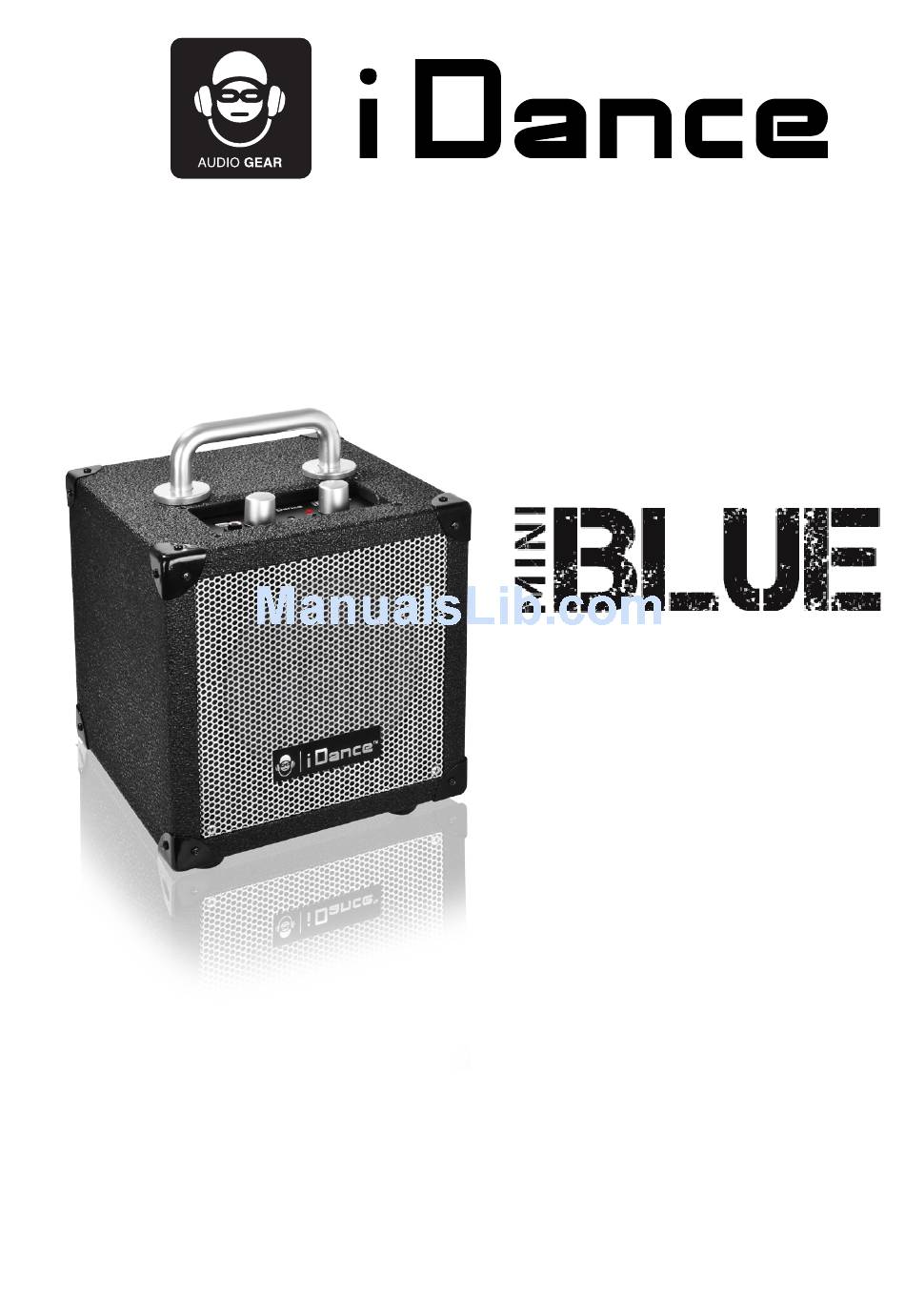

- Page 1 http://www.idancedj.com Bluetooth Wireless PA System USER MANUAL------------------------------------------------------------E1-E6...
- Page 2 Metallic handle and wheels for EZ transportation Ø Overview The iDance Mini Blue is a Wireless PA System with an integrated 3-channel mixer which accepts a microphone, Line-in audio and stereo Bluetooth wireless audio up to 10 meters. Only few simple steps to pair your device!! The MDF wood and epoxy painting will stand the toughest outdoor conditions.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION The lightning flash with arrowhead symbol inside an equilateral triangle is intended to RISK OF ELECTRIC SHOCK alert User of the presence of uninsulated ＂hazardous voltage"within the product’s DO NOT OPEN enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons. -
Page 4: Panel Description
Short press 1 sec: Turn on Bluetooth and old paired device can be connected to MiniBlue, or MiniBlue will search for new Bluetooth activated device for pairing. Press/Hold 5sec: Turn on Bluetooth and Mini Blue will enter “Pairing Mode”, new device can be connect to Bluetooth Rocker (Search for “iDance BR”... - Page 5 Notes on Battery Charging Indicator Battery is being charged when AC source is connected and Mini Blue is turned ON Charging LED indicator will remain ON when charging in process. Low-Battery Protection Power will be cut automatically when battery is too low to operate.
- Page 6 Hooking up the Mini Blue http://www.idancedj.com E5 ( English) ...
- Page 7 Specification Speaker Unit…….………………………...…...……1x6.5” Fullrange Speaker Maximum Power Output………………………………..…….………….50W Rated Power Output AC power consumption…………………..…………..20W THD=1% Distortion………………………………………………………………..……..≤1% S/N Ratio…………………………………………...……………...……….≥70dB Frequency Response…………………………………...……...…20Hz～20KHz Power Supply…………………….….…………100~120V/220~240V 50/60Hz (Depend on sold region, please see the back panel of unit) Dimensions(W×D×H) …………………………...………… 250x250x250mm Weight……………………………...…………………………………………6.3kg Max Power Consumption……………………………………..……………50W All features and specifications are subject to change without notice.
