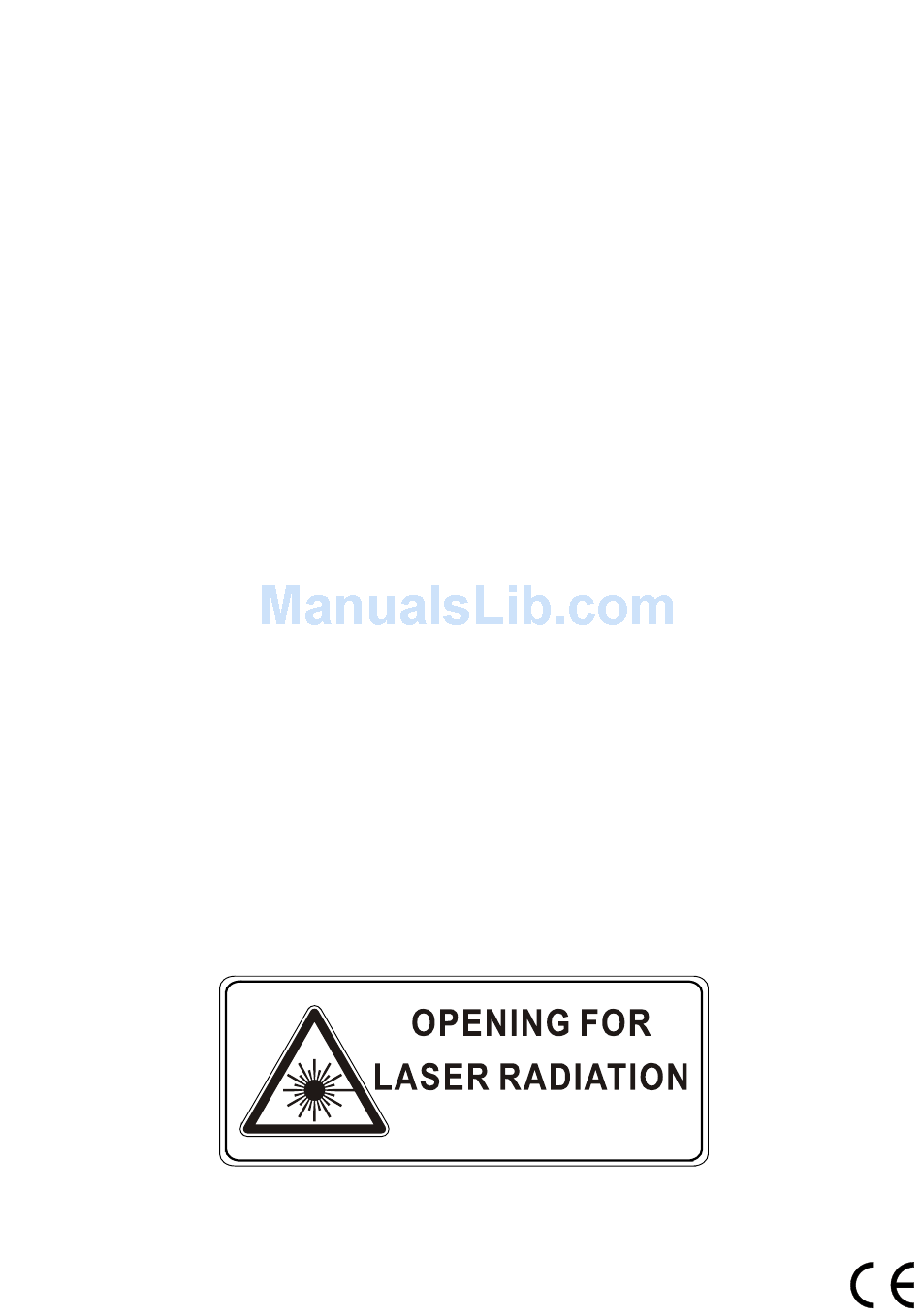

- Page 1 Manual Showco LASER RGB www.carlosmendoza.com.mx...
- Page 2 1. Open the box for checking In order to use this product safety and reasonable for the users, please read over this manual carefully before use and the operation must strictly according to this manual to avoid any damage to the product and personal safety. Once after received this products please take and put carefully .
- Page 3 3. ATTENTION ØPlease do not open the bottom cover yourself without permission. Operate it accord the user manual. Please call the technician in case the machine broken down. ØDo not use it under the damp and rain. ØPay attention to prevent the light from strong bump. ØPrevent the dust into the product ØKeep the vent-pipe well while working.
-
Page 4: Table Of Contents
Structure of the fixture Fig5-1 Description. Description. No . No . Power supply of green laser diode Blue laser diode Green laser diode Red laser diode Power supply of blue laser diode Power supply of red laser diode power supplyLED X scan board Y scan board Signal switch PCB... -
Page 5: Description
6. Backboard Assembling Diagram Fig6-1 Description. Description. No . No . Power input plug Male ILDA 25 plug DMX plug signal Power switch Security key switch www.carlosmendoza.com.mx... - Page 6 7. Scan motor Replacement (1) Steps: 1. Unscrew UK M6 screw and plug out male signal connector. 2. Disassemble all M4 10 screw from X,Y scanner socket so that scan motors can be took out, put in and rotate scanner socket to adjust the scan angle. 3.
- Page 7 8. Adjustable mirror socket (1) Steps 1. Loose setscrew of X,Y and then adjust mirror socket to suitable position by X,Y adjustable screws. 2. Adjust Z adjustable screw at same time. 3. Fix X,Y setscrew. NOTE:Make sure all beams through adjustable mirror socket be one point when you adjust X,Y ,Z line with adjustable screw.
-
Page 8: Blue Laser Diode
9. Laser diode replacement Methods: Disassemble whole laser system (include power supply,laser diode) and then replace new one at original position. Note:keep laser diode,power supply and cables be completly and don`t try to damage,destroy or cut them so that it can be repaired (crefer fig9-1). Snip Snip Correct Method... - Page 9 10. Control board instruction Remote Lock Work Signal Status Security POWER IN key switch ILDADB-25M Connector-IN MODE ENTER DOWN ILDADB-25F Connector-OUT DMX IN/OUT: International standard DMX512 signal input/output POWER INPUT Input power, with inner fuse. Security key switch Laser diode ON/OFF POWER ON/OFF: Power on/off ILDA DB25F IN/OUT: Signal input connection port of the laser perform software that in accordance with the ILDA standard.
- Page 10 2. Preset program mode (include DMX mode) Press MODE to select work mode on LCD display. Use ENTER to active or close setting. UP & DOWN to set DMX address code. Working mode instruction: ACCMusic Active: Accelerated music active STDMusic Active: Standard music active Automatic mode: Auto-mode DMXAddr: DMX512 mode.
- Page 11 Channel DMX Value Function Accelerated music active(Channel 2~24 no function) 0-41 Standard music active(Channel 2~24 no function) 42~83 Auto-mode(Channel 2~24 no function) 84~125 Control 126~167 Mode Sound accelerated manual mode Manual(Sound active) 168~209 Manual(Auto-mode, movement auto active) 210~255 0~16 Close Original colour 17~33 34~50...
- Page 12 Drawing speed 16 Class speed(0~255)/17=(0~15) 0 no effect 0~255 Preset scan speed(Speed 50) Scan speed 253 class speed(from fast to slow) 3~255 Color speed 255 Class(Slow to fast) 0~255 Original Size(100%) Main patter pattern Size 253 Class Size(3%~255%) 3~255 No double patterns & position(15~24 out of effect) 0~27 Pattern 1 Position B 28~55...
- Page 13 Colse 0~16 Original color 17~33 34~50 Yellow 51~67 Green 68~84 Cyan 85~101 Blue 102~118 Purple 119~135 The 2nd pattern colour White 136~152 Single color change 153~169 Stochastic color change--original color + a new color 170~186 Rainbow flow effecf 187~203 Original color + strobe 204~220 Stochastic color + strobe 221~237...
- Page 14 12. Specification Ø Voltage: AC 100V~240V , 50/60Hz Ø Total power: 50W Ø Scanner: Super-speed scanner Cooling mode: Air cooling Ø Scan angel : 0~ 30 Ø DMX Channel: 24 CHS Ø Ø Laser light power: Laser Class 3B 650nm Green Laser Class 3B 532nm Blue Laser Class 3B 473nm...
-
Page 15: Electrical Diagram
14. Electrical diagram Manostat power of blue laser diode Blue laser diode Blue aser diode trasnsformer power supply of green laser diode Green laser diode power supply of red laser diode red laser diode AC10.8V www.carlosmendoza.com.mx www.carlosmendoza.com.mx... -
Page 16: Scan Board
15. Trouble shooting Replace part Problem Causation Series number Damaged Fuse Fuse 09-00-2001-01 No power Damaged Pin4 switch Pin 4 switch 08-05-0420-02 Damaged power supply 16-03-0004-00 Damaged mic 16-03-0001-00 No response to music or it is Damaged control PCB Control PCB 26-2A-LT211V2-00 difficult beactived by music... - Page 17 Appendix: ILDADB25F PINOUTSDB 25 definens -5 to +5V -5 to +5V No Use No use Interlock A Connected to Pin 17 inside the QM 2000 0v to +2.5v Green 0v to +2.5v 0v to +2.5v Blue No Use No use No Use No use No Use...
