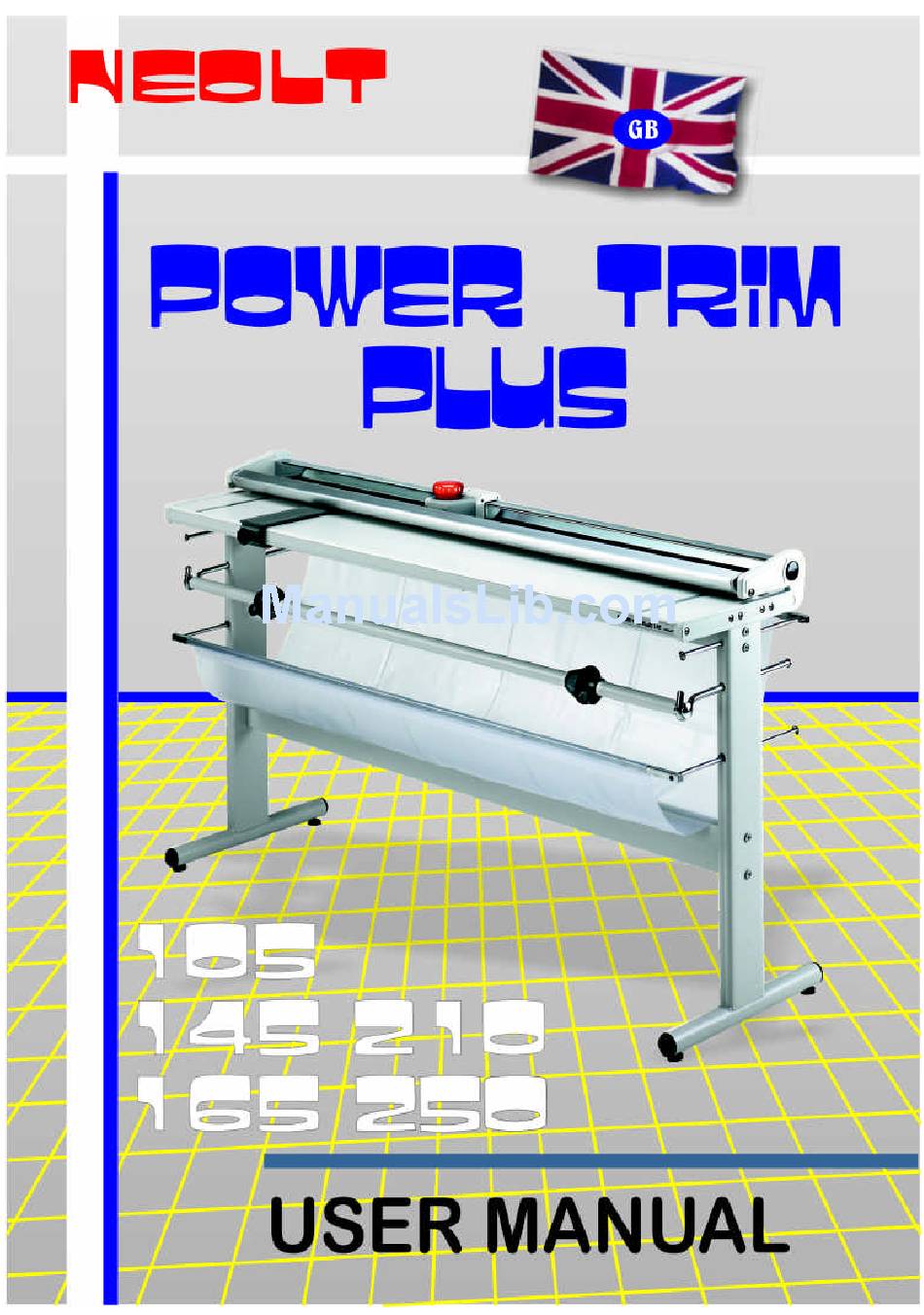

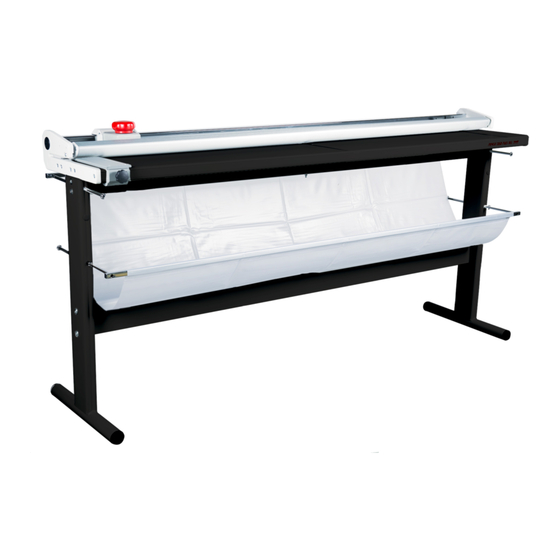

  • Page 2 105 / 145 / 165 / 210 / 250 USER’S MANUAL NEOLT ENGLISH Cod. NLT.QN-A-C-MM-3-1S-GB 2003 USOGB-PWTP-1S.DOC...
  • Page 3: Table Of Contents

    CONTENTS NEOLT q SECTOR: q DATE: POWER TRIM PLUS 12/01/2003 q VERSION: q AUTHOR: PWTP-01-01/2003 POLENI P. Chapter General information ..................1 1.1 Data of the manual .................. 1-1 1.2 Users ....................... 1-1 1.3 Property of the information ..............1-1 1.4 Conventions used..................
  • Page 4 CONTENTS NEOLT Chapter Use ......................... 5 5.1 Qualification of the operator..............5-1 5.1.1 Working place................5-1 5.1.2 Insertion of the media to be cut ............. 5-1 5.1.3 Characteristics of the media to be cut........... 5-2 Chapter Maintenance ....................6 6.1 Routine maintenance................6-1 6.1.1 Qualification of the operator............
  • Page 5: General Information

    GENERAL INFORMATION NEOLT Data of the manual • Instruction manual. TRIMMER • Code of the manual: NLT. QN-A-C-MM-3-1S-GB. Users Instruction manual. • Transporter. • Installer. • User. • Maintenance personnel. • Demolition squad. For further details on the users of this manual, see 2.2 Qualifications of the personnel.
  • Page 6: Conventional Terms Used

    GENERAL INFORMATION NEOLT Conventions Conventional terms 1.4.1 Machine: indicates the machine specified in section 1.6 Identification data of the machine. Frame: structure supporting the machine. Qualified personnel: people, who thanks to their qualification, preparation and experience, and thanks to the knowledge of the relevant rules, safety requirements and service norms, are able to recognize and avoid any possible danger for the people, the material and the machine.
  • Page 7: Identification Data Of The Manufacturer

    GENERAL INFORMATION NEOLT Identification data of the manufacturer neolt S.p.A. Via G. Galilei, 8 24036 Ponte San Pietro (BG) - ITALY Tel. 035/468811 Fax 035/468886 http://www.neolt.it E-mail.: mkt@neolt.it Identification data of the machine Name TRIMMER POWER TRIM Model plus Serial number...
  • Page 8: Warranty

    In no case can the purchaser demand the resolution of the contract, claim for damages or the extension of the warranty. NEOLT S.p.A. cannot be held responsible for any negative advertisement, or loss of earnings, due to technical or mechanical malfunctioning of the product in use or in display.
  • Page 9: Description Of The Machine

    GENERAL INFORMATION NEOLT Description of the machine 1.10 Correct use of the machine 1.10.1 This machine can be used only to cut media having the allowed basic weight (max paper thickness 2,2 mm). As the machine consists of assemblies physically separated and autonomous, the proper use of the machine can be identified also in the operation of a single part.
  • Page 10: Structure Of The Machine

    GENERAL INFORMATION NEOLT Structure of the machine 1.10.3 The machine is composed of the Fig. 1.1 Lateral View following parts: Work surface Support Paper collector curtain Containment bracket Blade holder carriage Sliding bar Fig. 1. 2 Detail Fig. 1. 3 Prospect views...
  • Page 11: Safety Criteria

    This also refers to the use of the protection devices foreseen, both those integrated in the machine and personal. NEOLT S.p.A. cannot be held responsible for any damages to people, pets or objects due to noncompliance with the safety rules and the recommendations contained in the supplied documentation.
  • Page 12 Demolition Qualified personnel Protections NEOLT S.p.A. cannot be held responsible for any damages to people, pets or objects due to noncompliance with the safety rules and the recommendations contained in the supplied documentation. Tampering with the protections and the safety devices is dangerous for the people using the machine and for those exposed to it.
  • Page 13 • Paying attention to the danger notices on the trimmer. NEOLT S.p.A. cannot be held responsible for any damages to people, animals or objects due to noncompliance with the norms or avoidance in using the prescibed individual protection devices (IPD).
  • Page 14 INFORMATION ON NEOLT SAFETY Power trim plus...
  • Page 15: Characteristics Of The Machine

    CHARACTERISTICS OF NEOLT THE MACHINE Technical specifications MODEL Max. cutting thickness (mm) Usable cutting length (cm) Length (cm) 128. Width (cm) Height (with holder) (cm) Height of working table (cm) Trim weight (kg) Support weight (kg) Accessori Roll holder – cutting area lamp Performances Max.
  • Page 16 CHARACTERISTICS OF NEOLT THE MACHINE List of media power TRIM plus Media Max. cutting thickness 2,2 mm Drawing paper Cardboard Cibachrome Slides Acrylic film Hot sealing film Carton Paper Photographic film Photographic paper Polypropylene film Fabric Jute Power trim plus...
  • Page 17: Installation

    INSTALLATION NEOLT Qualification of the operator Transport, installation and connection operations must be performed only by personnel qualified in transportation and electrical operations. Transport Transport conditions 4.2.1 The trimmer is shipped with a packaging consisting of three cardboards for components protection, and of a carton box containing all the components.
  • Page 18: Assessment Of Damages During Transportation

    INSTALLATION NEOLT Fig. 4.1 Transport conditions Assessment of damages during transportation 4.2.2 Check the conditions of the machine by visually inspecting i t , after having removed it from the shipping box. Any defects on the visible parts of the machine indicate crashes during transportation, which could also affect the ordinary operation of the machine.
  • Page 19 & Attention when you position the upper cross bar, make sure the central pin is facing upward . The calibration set by Neolt is equal to 3 mm. Power trim plus...
  • Page 20 INSTALLATION NEOLT • To assemble the paper collection basket, first slide in the basket holding bars in front (bottom) and then back (top), and lock in the shoulder with two Benzing rings per bar , in the appropriate seats. back front •...
  • Page 21 INSTALLATION NEOLT As the trimmer is vary heavy, wear proper working gloves, and remember that for this operation minimum four persons are required. • Position the cutter on the assembled frame and fix it to this with the screws in equipment (2 for side) &...
  • Page 22: Adjustments

    INSTALLATION NEOLT Adjustments The trimmer should not require any special adjustments, however we suggest checking two options that could be slightly different, due to the final area of installation of the trimmer. Planarity The first thing to check is the planarity of the work table, that could change, due to differences in level of the floor.
  • Page 23: Storage

    INSTALLATION NEOLT Storage The instructions contained in this section should be respected during temporary storage periods, which could occur in the following situations: • Installation of the machine delayed with respect of the delivery date. • Deactivation of the machine and consequent storage while waiting for a new installation.
  • Page 24: Features

    Testing 4.6.2 Before attempting the normal and continuous operation of the machine, check its appropriate general operation by performing some test cuts. & In case of malfunctioning, find the reason for this and/or call technical NEOLT assistance. Power trim plus...
  • Page 25: Use

    NEOLT Qualification of the operator The machine must be used by qualified personnel only. Workplace 5.1.1 Position of t h e operator: During start up and cutting, operator’s positing is in front of the machine, with the control panel in the centre. In case of maintenance, his position depends on the operation to be performed.
  • Page 26: Characteristics Of The Media To Be Cut

    NEOLT Execute the cut moving the carriage carry blade from right to left or vice versa • R Remove the spin part from the work surface and from the paper collector curtain the cut part. • Follow the above mentioned procedure to perform another cut.
  • Page 27: Maintenance

    MAINTENANCE NEOLT Routine maintenance Untimely movements during maintenance. Be very careful. Routine maintenance includes all the periodic and preventive operations enabling a safe use of the machine. Qualification of the operator 6.1.1 Routine maintenance must be carried put only by qualified personnel.
  • Page 28 MAINTENANCE NEOLT Power trim plus...
  • Page 29: Qualification Of The Operator

    However, it must allow the reuse of the raw materials which it was built with. NEOLT S.p.A. cannot be held responsible for damages to people or pets due to the reutilization of single parts of the machine for purposes or in situations different from those which it has been designed for.
  • Page 30 DISMALTING NEOLT Power trim plus...
  • Page 31 ATTACHMENTS NEOLT Attachment 1 Assembly optional – roll holder Attachment 2 Assembly optional – cutting area lamp Attachment 3 Technical sheet – replacing rotating blade Attachment 4 Part-list – exploded views Power trim plus...
  • Page 32 ATTACHMENTS NEOLT Power trim plus...
  • Page 33: Optional Roll Holder

    OPTIONAL NEOLT ROLL HOLDER Assembly of optional roll holder Follow this procedure assemble the reel holder: • Insert reel holder supports in the right and left legs and screw on the proper screw in the back part of the stand •...
  • Page 34 OPTIONAL NEOLT ROLL HOLDER Power trim plus...
  • Page 35: B Optional Lamp For Cutting Area

    OPTIONAL NEOLT CUTTING AREA LAMP Assembly of cutting area lamp – optional Follow this procedure to position the cutting area lamp: • Remove the lamp from the box and the bag with the supplied screws • Remove the lamp from the lamp holder. (Fig. 1).
  • Page 36 OPTIONAL NEOLT CUTTING AREA LAMP • Slide the lamp out of the protection box and insert it in the lamp holder on the ceiling lamp. (Fig. 4). • Connect the plug to an outlet and using the through switch on the connection wire switch the lamp on and off (Fig.
  • Page 37: Technical Sheet

    TECHNICAL SHEET NEOLT REPLACEMENT OF ROTATING BLADE Replacing the rotating blade Follow this procedure to replace the rotating blade: • Remove the screws that fix the two side plugs (two screws per side) • Move them along the sliding bar Attention use protection gloves during the following operations to avoid cutting yourself with the rotating blade.
  • Page 38 TECHNICAL SHEET NEOLT REPLACEMENT OF ROTATING BLADE • Remove the elastic ring, using a normal screwdriver and keeping the blade pressed towards the carriage • Remove the fulcrum screw of the blade holder shaft • Slide the shaft out of the carriage •...
  • Page 39 TECHNICAL SHEET NEOLT REPLACEMENT OF ROTATING BLADE • Reposition the elastic ring, using pliers by keeping the blade pressed against the carriage • Position the plate joining the two parts of the carriage on the sliding bar and line up the holes with the ones on the sliding profile •...
  • Page 40 TECHNICAL SHEET NEOLT REPLACEMENT OF ROTATING BLADE Power trim plus SCH-TEC-4...
