Summary of Contents for FSI D-700C

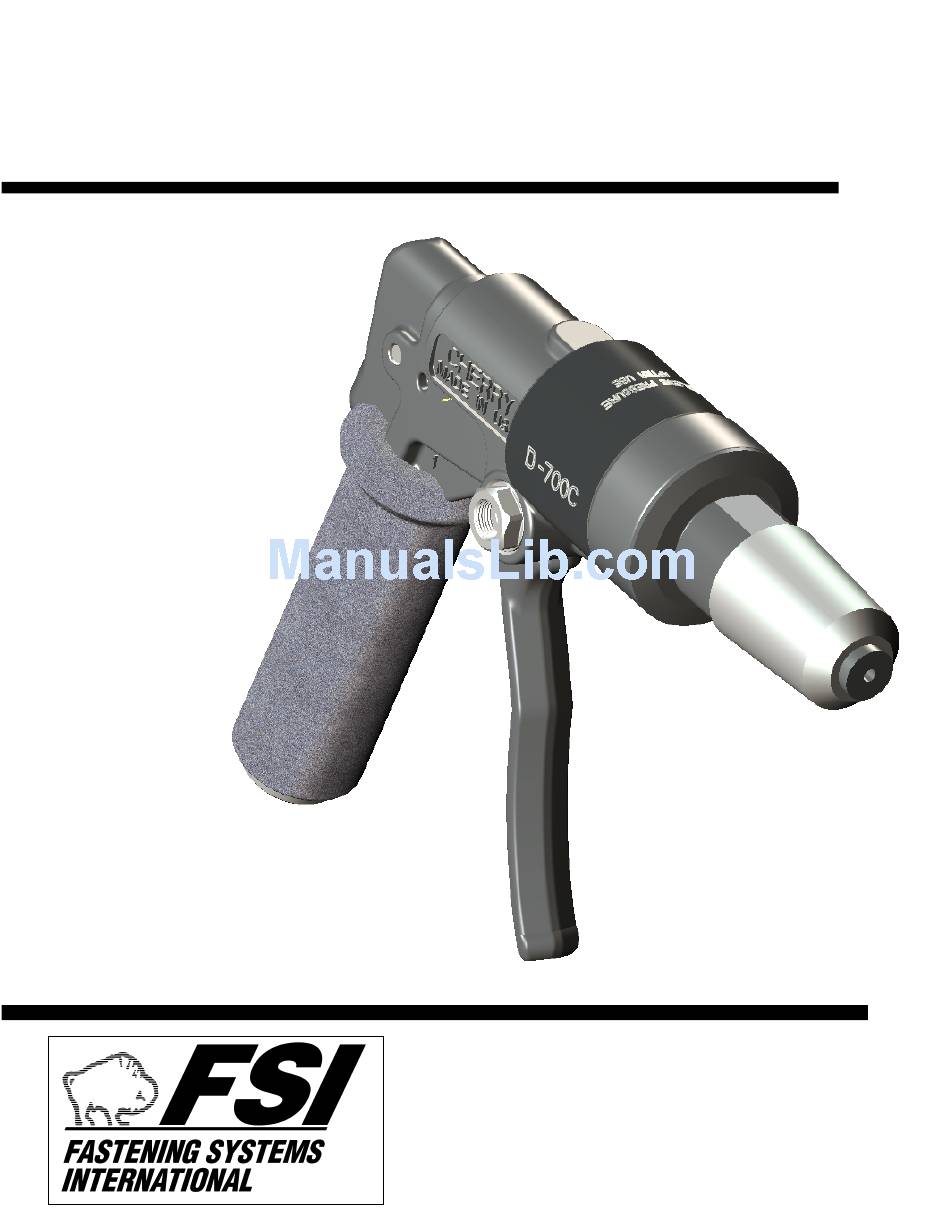

- Page 1 OPERATING INSTRUCTIONS D-700C Hand-Powered Riveter PATENT PENDING 1206 E. MacArthur Street Sonoma, CA 95476 USA Tel: 1-707-935-1170 Fax: 1-707-935-1828 www.fsirivet.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Description ................................3 Fluid Used, - type, safety ............................3 Safety Warnings ........................4 Ergonomic and Operational Adjustments ......................4 Lever Span Adjustment ..........................4 Load ................................4 Tool Operation, Recommended Pulling Heads ..................... 4 Troubleshooting Guide ............................. 5 Maintenance and Repair .......................... -
Page 3: Description
DESCRIPTION D-700C is a lightweight ergonomic hand powered riveter providing means to install a wide variety of blind type fasteners in the absence of other power sources (compressed air or electricity). It combines the safe and smooth operation of well-known pneumatic hydraulic riveters with the latest research in automatic systems. -
Page 4: Safety Warnings
• No component substitutions are authorized; any modification to the tool, pulling heads, accessories or FSI supplied components shall be at the customer’s entire responsibility. FSI will be pleased to advise on any proposed modification. •... -
Page 5: Troubleshooting Guide
• Depress the pressure relief button and allow the broken stem to eject through the front RECOMMENDED PULLING HEADS • Contact FSI at 1-800-344-2393 or 707-935-1170 or by e-mail at sales@fsirivet.com for recommendations. TROUBLESHOOTING GUIDE For item and part numbers, refer to the component list and exploded view on page 8. -
Page 6: Hydraulic Pump Service
TOOL SERVICE For item and part numbers, refer to the component list and exploded views on page 8. • Place the riveter over an oil pan to avoid and contain fluid spills; clean up and dispose of used fluid properly. •... -
Page 7: Fill And Bleed Instructions
To fill and bleed, you will need: a 5/32” hex wrench, a container with the recommended transmission fluid and an oil pan. Make sure to place the tool over an oil pan to avoid and contain fluid spills. FLUID USED Use automatic transmission fluid Type “A” (no substitutes). FSI recommends using Dexron® III ATF. DEXRON III OIL SAFETY DATA FIRST AID Skin: Wash thoroughly with soap and water as soon as possible. -
Page 8: Checking Fluid Level
CHECKING THE FLUID LEVEL Turn the riveter upside down and observe the position of the indicator with respect to the silver grooves visible inside the handle. • One indicator line is visible: the tool is full of fluid. The tool was filled and bled properly •... -
Page 9: 26 F1475 O-Ring
D-700C PARTS LIST DESCRIPTION DESCRIPTION ITEM PART NO. ITEM PART NO. POWER CYLINDER F800-000 (TOP ASSEMBLY) F800-005 O-RING (BLACK, OD 5/8", W .07") O-RING (OD 7/16", W.07") F701 F383 CHERRY HOUSING ADAPTOR BACK-UP RING (OD 7/16, W .05") F800-027 F732 O-RING (WHITE, OD 1.5", W .07") -
Page 10: Exploded View
Seller shall not be liable under any circumstances for incidental, special or consequential damages arising in whole or in part from any breach by Seller, AND SUCH INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES ARE HEREBY EXPRESSLY EXCLUDED. For more information please contact FSI Technical Services Department at Tel. 707-935-1170 TM-D-700C Rev.: -...
