NTS CSG-245 RP series 010 User Manual

NTS
Narzędzia i Technika Serwisowa
CAUTION
This symbol draws your attention to the issues involving your safety. Read them carefully and strictly
follow them.
Cut off the pressure supply before carrying out any repairs, maintenance and other operations.
Read the user's manual before using the spray gun and strictly follow its guidelines.
Contact your nearest dealer or authorised specialist personnel before performing any operations (repairs,
maintenance). Improper operation will render your warranty invalid.
When selecting the product to be pumped with the spray gun, read its Material Safety Data Sheet (MSDS) to
verify its compliance with the work environment and individual safety measures.
Never turn the spray gun outlet towards yourself, other people, animals, and/or objects other than those,
which are to be treated with the product.
While using the spray gun, always wear protective clothing and other protective equipment (safety gloves, goggles, face
guards, overalls, aprons, etc.), according to the instructions provided in sprayed product Material Safety Data Sheet. We
recommend wearing safety goggles at all times.
3.

PACKAGING AND STORAGE

The spray gun is delivered in an individual cardboard packaging sized: 370 mm (length) x 280 mm (width) x 80 mm
(height), white 8t/8343, thickness 2.8-3 mm (low wave). The spray gun is shipped in a polyethylene wrap.
4.

PREPARATION FOR WORK

4.1 Compressed air supply system
The spray gun must be connected to a compressed air system in
accordance with the diagram.
The spray gun is equipped with a "NIPPLE"-type pipe joint
(external thread) (fig. 1 par. 6), which allows the connection of
accessories according to applicable requirements.
Air consumption is limited and proportional to the number of product
pumpings.
4.2 Sachet insertion in the pumping chamber
In order to avoid accidentall leakage of the product during its replacement in the piston chamber (which may
be dangerous for people nearby), you must always remember to cut off the compressed air supply to the spray
gun
before undoing the front nut.
Always check expiration date of all products being used.
PNEUMATIC SPRAY GUN USER'S MANUAL
model CSG-245 RP series 010
NTS Sp. z o.o.
Sales Office:
ul. Warszawska 749
Borzęcin DuŜy
05-083 Zaborów

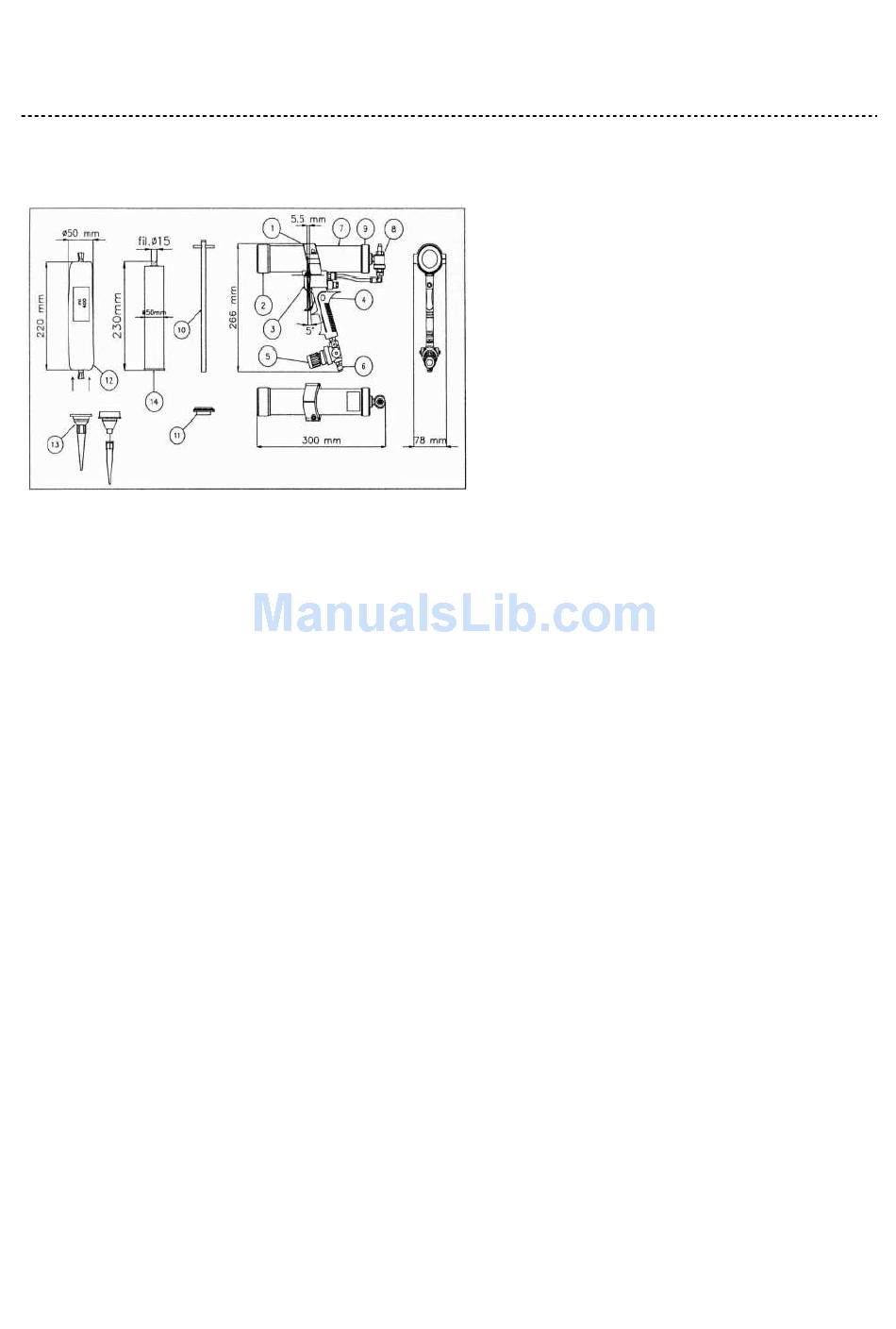

PARTS LIST:

1. SPRAY GUN BODY
2. FRONT NUT
3. RELEASE TRIGGER
4. HANDLE
5. AIR PRESSURE CONTROLLER
6. COMPRESSED AIR INLET
7. PUMPING CHAMBER
8. RELEASE-DIFFERENTIAL VALVE
9. REAR NUT
10. ROD FOR PISTON WITHDRAWAL
11. CARTOUCHE CONNECTOR (REDUCER)
12. 400ml SACHET
13. SACHET NOZZLE
14. 310ml CARTOUCHE
15. SPECIAL TOOLS
Ciśnienie robocze = Working pressure 5-8 bar
Ciśnienie max. = Max. pressure 10 bar
Reduktor z filtrem = Reducer with a filter
Min. przepływ powietrza = Min air flow 200 l/min
Zawór = Valve
Max. długość przewodu = Max. hose length 10 m
Minimalna średnica wewnętrzna
= Minimum inside diameter φ 6 mm
1
