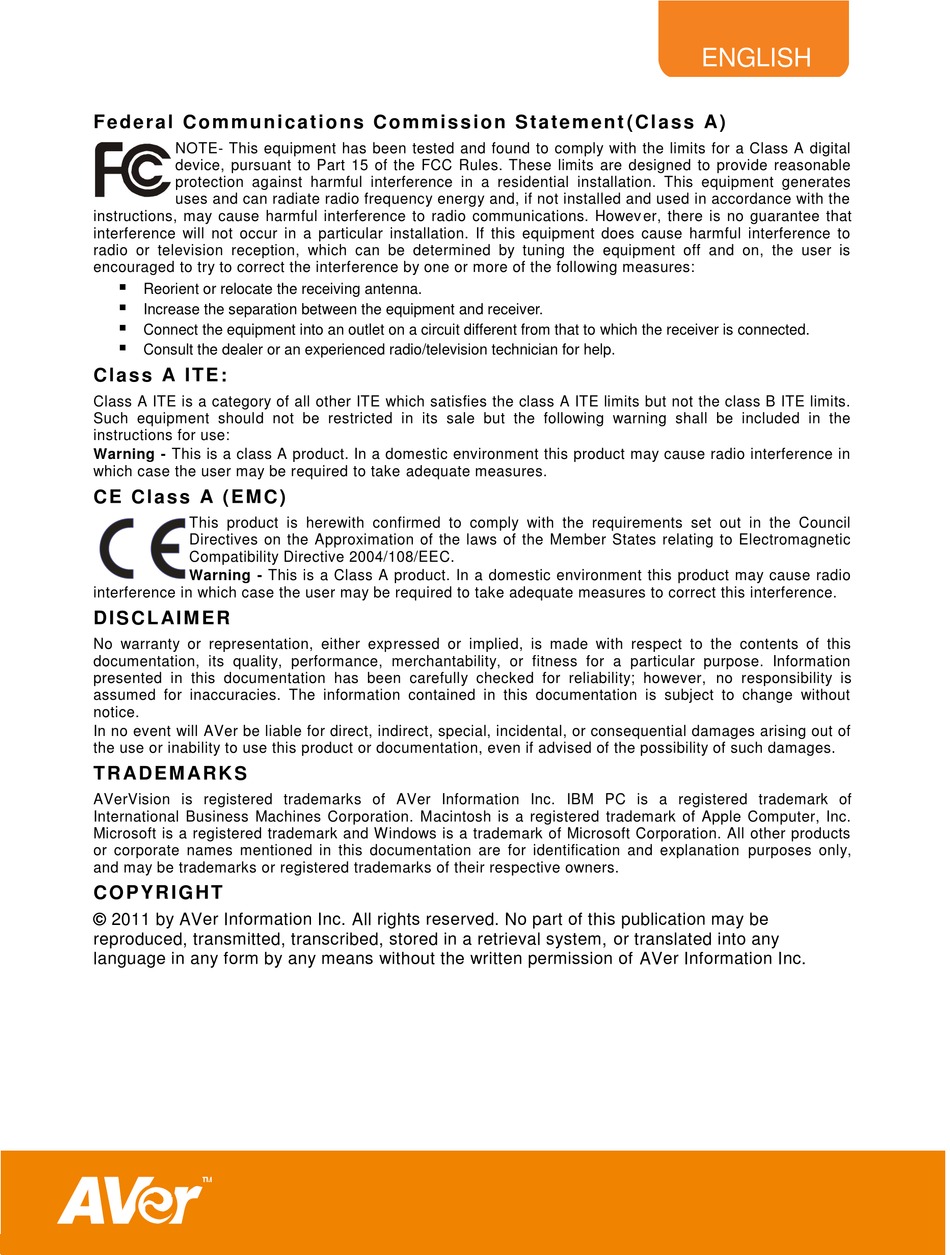

F e d e r a l C o m m u n i c a t i o n s C o m m i s s i o n S t a t e m e n t ( C l a s s A )
NOTE- This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. Howev er, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by tuning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
C l a s s A I T E :
Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits.
Such equipment should not be restricted in its sale but the following warning shall be included in the
instructions for use:
Warning - This is a class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
C E C l a s s A ( E M C )
This product is herewith confirmed to comply with the requirements set out in the Council
Directives on the Approximation of the laws of the Member States relating to Electromagnetic
Compatibility Directive 2004/108/EEC.
Warning - This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures to correct this interference.
D I S C L AI M E R
No warranty or representation, either expressed or implied, is made with respect to the contents of this
documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information
presented in this documentation has been carefully checked for reliability; however, no responsibility is
assumed for inaccuracies. The information contained in this documentation is subject to change without
notice.
In no event will AVer be liable for direct, indirect, special, incidental, or consequential damages arising out of
the use or inability to use this product or documentation, even if advised of the possibility of such damages.
T R A D E M A R K S
AVerVision is registered trademarks of AVer Information Inc. IBM PC is a registered trademark of
International Business Machines Corporation. Macintosh is a registered trademark of Apple Computer, Inc.
Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation. All other products
or corporate names mentioned in this documentation are for identification and explanation purposes only,
and may be trademarks or registered trademarks of their respective owners.
C O P Y R I G H T
© 2011 by AVer Information Inc. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form by any means without the written permission of AVer Information Inc.
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVerVision F30 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVer AVerVision F30

  • Page 1 The information contained in this documentation is subject to change without notice. In no event will AVer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 2 ENGLISH THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.
  • Page 3: Table Of Contents

    ENGLISH Package Contents ................1 Optional Accessories ..............1 Get Familiar with the AVerVision F30 ..........2 Right Panel ..................... 2 Rear Panel ..................... 3 Left Panel ....................3 Control Panel ..................4 Remote Control ..................6 Making the Connections ..............9 Set the TV-RGB Switch Setting ..............
  • Page 4 ENGLISH 62BPIP .................... 23 63BSplit Screen ................23 64BTimer ..................24 Setting ....................24 48BCapture ..................24 66BResolution ................. 24 67BQuality ..................24 68BType ..................25 69BInterval ..................25 71BRecording ................. 25 72BStorage ..................25 73BFormat ..................25 76BUSB to PC ................26 55BFlicker ..................
  • Page 5: Package Contents

    Power Adapter (12V, 2A) * The power adapter will vary depending on the standard power outlet of the country RGB Cable where it is sold. AVerVision F30 Remote Control Anti-glare Sheet Software & Manual CD (batteries included) 28mm Rubber 34mm Rubber...
  • Page 6: Get Familiar With The Avervision F30

    ENGLISH (fig. 1.1) Name Function Camera head Contain the camera sensor. Camera lens Focus the image in the camera. LED light Provide light to enhance the lighting condition. Flexible arm Provide adjustable viewing coverage. Connections for microphone, speaker, USB flash drive/USB mouse, Left panel and USB switch.
  • Page 7: Rear Panel

    USB flash drive. Switch to for saving the captured image and audio video recording directly to the USB flash drive; and when connecting USB switch AVerVision F30 to a computer using a USB cable from the rear USB port.
  • Page 8: Control Panel

    Indicate the USB switch selection to show which USB port is activated.  allowing you to use the AVerVision F30 as USB camera or transfer the captured images from the memory source to computer.  allowing you to save the images/video in the USB flash drive.
  • Page 9 ENGLISH (10) OUTPUT (11) POWER RECORDING CAMERA / PC PLAYBACK (12) AUTO FOCUS (13) (14) MENU FREEZE ROTATE LAMP CAP / DEL (15) (fig. 1.5) Name Function - Make a selection in Playback mode and OSD menu. - Start/Pause video playback. FREEZE - Pause or resume image display in Camera mode.
  • Page 10: Remote Control

    ENGLISH Re mot e Cont ro l The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries are installed properly before use. You can access all the features of AVerVision F30 with the remote. Name Function POWER Turn the unit on/standby.
  • Page 11 ENGLISH Name Function VISOR Call the Visor submenu. Visor covers part of the presentation screen and allow presenter to reveal the material as (26 ) desire. (25 ) In the Visor submenu, the following (24 ) options are available. (23 ) (10 ) (22 ) (11)
  • Page 12 ENGLISH Name Function (10) CAPTURE Capture still image in Camera mode. In continuous capture mode, press this button again to stop. (26 ) (11) RECORDING Start/Stop audio & video recording. (25 ) Video recording can only be saved (24 ) either in a SD memory card or a USB (23 ) flash drive.
  • Page 13: Making The Connections

    AVerVision F30 with. The TV-RGB switch determines the display output selection. Switch it to RGB (right) to output signal using RGB connection and TV (left) to output signal using RCA connection.
  • Page 14: Connect To A Monitor Or Lcd/Dlp Projector

    ENGLISH Locate the RGB (VGA) input port of the graphics display device and connect it to RGB OUT port of AVERVISION F30. Make sure the TV/RGB switch is set to RGB. Locate the VIDEO or SCART RGB (if applicable) input port of the TV or Video equipment...
  • Page 15: Connecting The Power

    Locate the RGB (VGA) output port of the computer or laptop and connect it to RGB IN port of AVerVision F30. The video signal from the RGB IN port is streamed to RGB OUT port. - To display computer image, press Camera/PC button on the control panel or remote control to switch AVerVision F30 to computer mode.
  • Page 16: Connect To A Computer Via Usb

    LED on the control panel will light up. This enables you to use AVerVision F30 as a USB Camera or to transfer the captured pictures from the memory source and to computer. Also see “Transfer File from AVerVision F30 to PC”.
  • Page 17: Connect An Amplified Speaker

    Take caution when using earphones. Adjust the volume down on the remote to prevent hearing damage due to loudness. Connect the AVerVision F30 to a microscope enables you to examine microscopic objects on a big screen. Change the image display mode to Microscope.
  • Page 18: Setting Up Avervision F30

    This section provides useful tips on how to adjust the AVerVision F30 to meet your needs. The gooseneck design allows you to freely bend the arm and store the camera head in the camera holder.
  • Page 19: Shooting Area

    ENGLISH The shooting area can view an area of 420x297mm which allows you to show an A3 size landscape paper. If the camera head is in upright position, press ROTATE on the control panel or remote control twice to rotate the image in 180°. To mirror the image, press MENU >...
  • Page 20: Overhead Light

    ENGLISH Press LAMP button on the control panel or remote control to turn on and off light. Aim the remote control at the infrared sensor to operate the unit. The anti-glare sheet is a special coated film that helps eliminate any glare that maybe encountered while displaying very shiny objects or glossy surfaces such as magazines and pictures.
  • Page 21: External Memory Storage

    ENGLISH AVerVision F30 supports both SD memory card and USB flash drive for more image capture and audio & video recordings. AVerVision F30 can detect when there is an external storage media and automatically switch to the last detected storage. If no external storage is connected, all captured still images will be saved in the built-in memory.
  • Page 22: Osd Menu

    ENGLISH There are 4 tabs on the OSD menu: IMAGE, PRESENTATION, SETTING and SYSTEM. In Playback mode, you can access PLAYBACK OSD menu to enable the Slide Show feature and modify Slide Show interval and transition setting if desire. For TV output, the RESOLUTION will be disabled in SETTING menu list. IMAGE PRESENTATION SETTING...
  • Page 23: Navigate The Menu And Submenu

    ENGLISH 1. Press MENU button on the remote or control panel. 2. Press ► and ◄ to toggle between tabs 3. Press ▼ and ▲ to choose a selection in the menu list. 4. Press to make a selection. 5. Use ► and ◄ to adjust the setting or make a selection.
  • Page 24: 49Bmode

    ENGLISH Menu Screen Function Mode Select from the various image display settings. Sharp - adjust the contrast along the edges making text appear more visible. Graphics - adjust the gradient of image. Motion - increase frame rate. Sufficient lighting is required when using this mode.
  • Page 25: 48Bauto Image

    ENGLISH Menu Screen Function Auto Image Select ON or OFF to automatically adjust the white balance and exposure setting, and correct the color and exposure compensation. Exposure Select the exposure setting. AUTO - automatically adjust the camera exposure and the amount of light required. MANUAL - manually adjust the exposure level.
  • Page 26: Presentation

    ENGLISH Menu Screen Function Spotlight Spotlight overlays a frame on the presentation screen. You can move the Spotlight around the presentation screen using the ▲,▼,◄, & ► buttons. Select Execute to call the Spotlight submenu. In the Spotlight submenu, the following options are available. ON/OFF –...
  • Page 27: 62Bpip

    Divide the screen into two parts. Half of the screen displays the 8-thumbnail images and the other half display the image from the AVerVision F30 camera. Select the display location of the 8- thumbnail playback images. Select OFF to cancel Split Screen.
  • Page 28: 64Btimer

    ENGLISH Menu Screen Function Timer Start/Pause/Stop the timer and set the timer duration. The timer automatically counts up after the count down reaches zero to show the elapsed time. Even when you switch between Playback, PC or Camera modes, the timer will continue.
  • Page 29: 68Btype

    ENGLISH Menu Screen Function Type Select the capture type. Single - capture one picture only. Continuous - capture successive pictures. Interval Set the time interval for continuous capture. The length can be set up to 600 sec (10 min). Recording Select the video recording compression setting.
  • Page 30: 76Busb To Pc

    Menu Screen Function USB to PC Select the status of the AVerVision F30 when it is connected to the computer via USB. Make sure the USB switch on the left panel is set to Camera - can be used as a computer webcam or with our bundled software to record video and capture still image.
  • Page 31: 77Bbackup

    ENGLISH Menu Screen Function Backup Copy the image from the built-in memory to SD card or USB flash drive. Save Setting Save current setting in the selected profile number. Only effect, mode, brightness and contrast settings can be saved. Recall Setting Restore the setting back to the selected profile number.
  • Page 32: Playback

    ENGLISH Menu Screen Function Slide Show Display all captured still pictures in an automated slide show. The video file will be skipped. Interval Set the interval before displaying the next picture. The length can be set up to 100 sec. Slide Show Effect Select the slide show transition effect.
  • Page 33: Transfer Captured Images/Videos To A Computer

    USB cable. 4. Upon connecting the USB cable, the system automatically detects the new removable disk. You can now transfer the captured image(s) from the F30 built-in memory to the computer hard disk. Image 1/2”...
  • Page 34: Power

    ENGLISH Power Power Source DC 12V, 100-240V, 50-60Hz Consumption 16.8 Watts (lamp off); 18 Watts (lamp on) Lighting Lamp Type LED light Input/Output RGB Input 15-Pins D-sub (VGA) RGB Output 15-Pins D-sub (VGA) CVBS/RS-232 Mini-DIN Jack (use CVBS/RS-232 Adapter cable) Composite Video RCA Jack USB2.0...
  • Page 35: Using The Rs-232 Interface

    ENGLISH AVerVision F30 can be controlled using a computer or any centralized control panel through RS-232 connection. The command code for RS-232 is provided for the system integrator to be able to incorporate it with the system program. Locate the RS-232 port of the computer and connect it to RS-232 jack of RS-232/CVBS cable.
  • Page 36: Rs-232 Communication Format

    ENGLISH Send Device Code(1 Byte) : 0x52 Type Code(1 Byte) : 0x0B DataLength Code(1 Byte) : 0x03 Data Code(1 Byte) : See the Command Table for reference. Data Code(2 Byte) : See the Command Table for reference. Data Code(3 Byte) : See the Command Table for reference.
  • Page 37 ENGLISH Function data[0] data[1] data[2] Checksum TIMER PAUSE 0x08 0x01 0x00 0x52 TIMER STOP 0x08 0x02 0x00 0x51 Value[ 1 TIMER SET TIME 0x08 0x03 ~ 120 ] PREVIEW MODE: SHARP 0x0A 0x00 0x00 0x51 PREVIEW MODE: GRAPHICS 0x0A 0x01 0x00 0x50 PREVIEW MODE: MOTION...
  • Page 38 ENGLISH Function data[0] data[1] data[2] Checksum WHITE BALANCE: AUTO 0x15 0x00 0x00 0x4e WHITE BALANCE: MANUAL 0x15 0x01 0x00 0x4f WHITE BALANCE BLUE INCREASE 0x16 0x00 0x00 0x4d WHITE BALANCE BLUE DECREASE 0x16 0x01 0x00 0x4c WHITE BALANCE RED INCREASE 0x17 0x00 0x00...
  • Page 39 ENGLISH Function data[0] data[1] data[2] Checksum SPLITSCREEN DIR: LOWER SCREEN 0x22 0x01 0x00 0x78 SPLITSCREEN DIR: LEFT SCREEN 0x22 0x02 0x00 0x7b SPLITSCREEN DIR: RIGHT SCREEN 0x22 0x03 0x00 0x7a RECORD: OFF 0x23 0x00 0x00 0x78 RECORD: ON 0x23 0x01 0x00 0x79 MOVIE FAST REWIND...
  • Page 40 ENGLISH Function data[0] data[1] data[2] Checksum SLIDESHOW: ON 0x34 0x01 0x00 0x6e SLIDESHOW EFFECT: EFFECT 0 0x35 0x00 0x00 0x6e SLIDESHOW EFFECT: EFFECT 1 0x35 0x01 0x00 0x6f SLIDESHOW EFFECT: EFFECT 2 0x35 0x02 0x00 0x6c SLIDESHOW EFFECT: EFFECT 3 0x35 0x03 0x00...
  • Page 41: Rs-232 Get Command Table

    3. Verify the setting of the display output device. 4. If you are presenting from a notebook or computer through the display output device, check the cable connection from computer RGB (VGA) output to RGB input of AVerVision F30 and make sure AVerVision F30 is in PC Mode.
  • Page 42: Limited Warranty

    You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or...
  • Page 43 ENGLISH repair of the Product by anyone other than AVer or its authorized agents. Disclaimer of Warranty EXCEPT AS EXPRESSLY PROVIDED OTHERWISE HEREIN AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AVER DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO THE PRODUCT, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE,...
