In the front and under the floor, there are removable, easy to clean dust filter.
Fans:
Front:
Rear:
Optional Equipment:
Top cover:
Bottom:
On the next pages you can find some useful tips and explanations for the optimal use of your
new case and for the installation of your hardware.

1. Installation of the motherboard

You can mount ATX, M-ATX and Mini-ITX motherboards in the Deep Silence 3. In order to
ensure an easy installation of your motherboard, we suggest the following procedure:
Please consult the
following charts to find
your motherboard form
factor.
Attach the included
EPS extension to your
motherboard - do not
connect it from to the
power supply yet.
03
2 x 120 mm Nanoxia Deep Silence fans (max. 1,300 rpm)
1 x 120 mm Nanoxia Deep Silence fan (max. 1,300 rpm)
2 x 120/140 mm fans
1 x 120/140 mm fan (removal of the HDD-holder necessary)
Please visit our website at

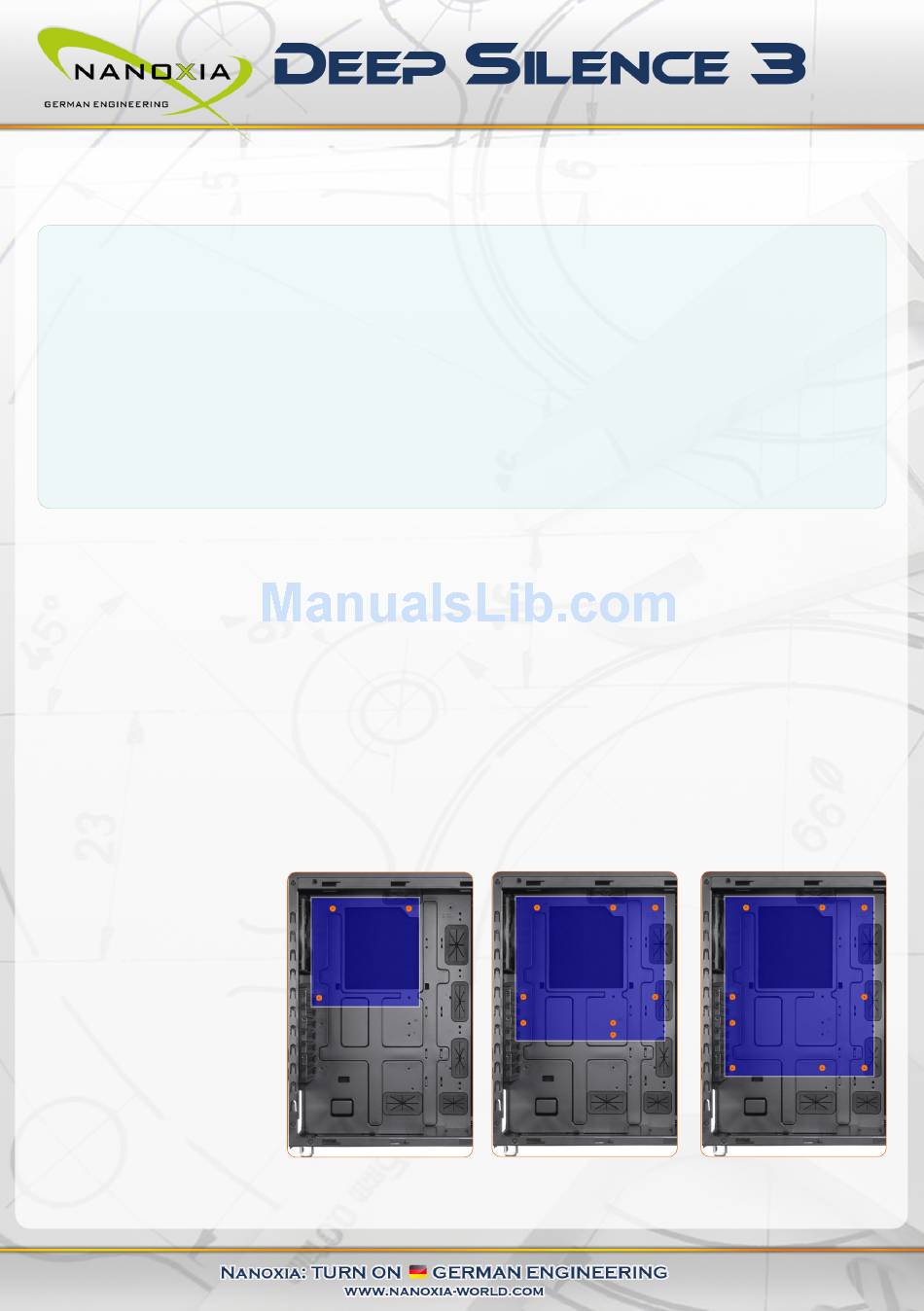

Mini-ITX Mainboard
www.nanoxia-world.com
Micro-ATX Mainboard ATX Mainboard
