Diagram Parallel - CPR Call Blocker User Manual

I N S T A L L A T I O N

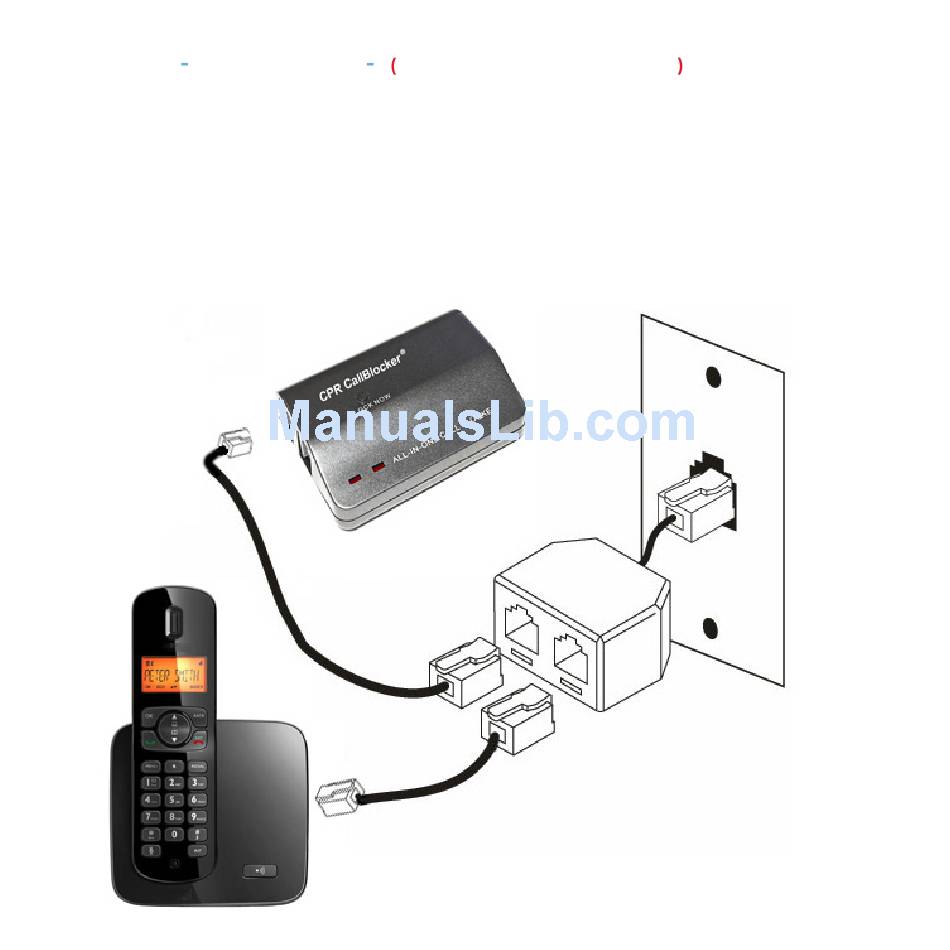

D I A G R A M P A R A L L E L
If caller ID issues arise with the IN-LINE setup then change to a PARALLEL connection.
Please note that when the call blocker is setup in this way the BLOCK NOW button will
function correctly but the unit cannot be programmed. The phone will need to be
connected to the call blocker IN-LINE for when programming is needed.
Connect the additional line cable
from the splitter to the LINE 2 port
Additional
Line Cable
Telephone
F O R O U T S I D E T H E U K
Line Cable
Main Wall
Socket
Splitter
4
